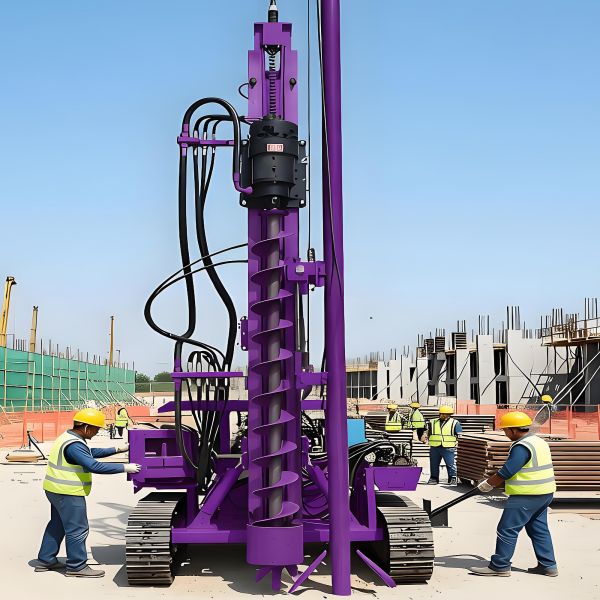

Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig

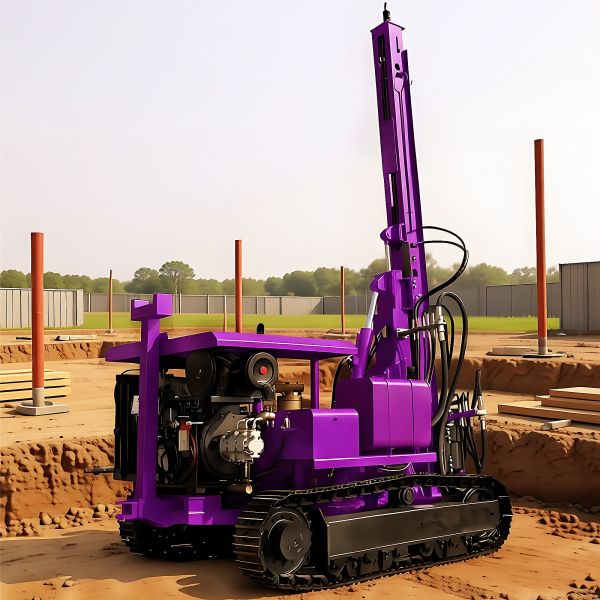

Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig
Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig
Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig
Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig
Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig
Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig
Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig
Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig
Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig
Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig
Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig
Specifications
Model Number :
SRP160A
Name :
Pile Driver
Dimension(L*W*H) :
5500*2100*2200mm
Packaging Details :
in wooden box, then in sea container
Grade ability :
30°
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Rod diameter :
60/64/76mm
Rotation rate :
0-140rpm
Lifting force :
16KN
Feeding force :
6KN
Place of Origin :
Zhejiang, China
Engine Type :
Water-cooled six-cylinder EFI diesel engine
MOQ :
1 Set/Sets
Delivery Time :
15-25days
Hole diameter :
90-160mm
Groundclearance :
420mm
Feeding stroke :
4105mm
Price :
negotiable
Rod length :
3m
Max. rotation torque :
3220Nm
Certification :
IOS9001 CCC
Engine Model: :
73.5KW /78KW
Supply Ability :
1000 Set/Sets per Month
Track width :
253mm
Hydraulic pressure :
18bar (high pressure)
Brand Name :
Sanrock
Power Type :
Diesel
Weight :
5600kg
Description

A piling rig is a heavy-duty foundation construction machine designed to install foundation piles into the ground to form stable deep foundations for high-rise buildings, bridges, highways, viaducts and infrastructure projects. It includes impact hammer, vibratory, hydraulic and rotary drilling types, adapting to diverse soil, sand and rock strata. The crawler chassis delivers great mobility on uneven construction sites, while the hydraulic system ensures precise positioning and stable piling operations. It is widely used for bored piles, micro piles, foundation reinforcement and ground improvement, greatly improving ground bearing capacity and preventing foundation settlement, which is essential for large civil engineering and infrastructure construction worldwide.
It effectively prevents landslides and geological hazards, widely adopted in infrastructure, water conservancy and mining engineering globally.

Application Scope
- High-rise building foundation construction, factory and residential building pile foundation works
- Bridge, viaduct, highway, railway and roadbed reinforcement projects
- Urban municipal engineering, subway foundation pit support and underground pipe gallery construction
- Water conservancy, river revetment, wharf and flood control projects
- Slope stabilization, deep foundation pit anchoring, anti-floating foundation reinforcement, tunnel pre-support and geological disaster prevention
- Photovoltaic, wind power, new energy infrastructure foundation construction

Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig

Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig

Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig

Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig

Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig

Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig

Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig



Products Description

Brand Name:SANROCK
Product Name:Pile Driver
Engine Model: 73.5KW /78KW
Engine Type:Water-cooled six-cylinder EFI diesel engine
Rated power:73.5/2200Kw/RPM,78/2200Kw/RPM
Drill rod changer
Hole diameter :90-160mm
Rod length:3m
Rod diameter:60/64/76mm
Rod quantity:7
Dust collector :Dry tydraulic dust collecting method (Wet type optional)
Undercarriage
Track width :253mm
Groundclearance :420mm
Track oscillation :±10°
Walking speed :low 2, high 3 km/h
Grade ability:30°
Hydraulic system
Hydraulic pressure :18bar (high pressure)
Rotation motor
Rotation rate :0-140rpm
Max. rotation torque :3220Nm
Feeding method Cylinder plus chain
Feeding force :6KN
Lifting force :16KN
Feeding stroke :4105mm
Promote compensation :1250mm
Dimension(L*W*H):5500*2100*2200mm
Weight:5600kg

Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig

Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig

Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig

Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig

Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig


Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig





Company Introduction

Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig

Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig

Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig

Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig

Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig




Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig

Solar Pile Driver Installation Highway Guardrail Pile Driving Equipment Crawler Pile Drilling Rig

1.Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.
2.What can you buy from us?
DTH drilling rig Integrated DTH DTH drilling rig water well drilling rig truck mounted water well drilling rig core drilling rig reverse circulation drilling rig highway pile driver solar pile driver anchor pile driver rotary drill rig Top Hammer drill rig Underground jumbo drill rig DTH hammer screw air compressor piston air compressor pneumatic rock drill drill rod drill bit PDC drill bit top hammer drill bit tricone bit spare parts
3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
