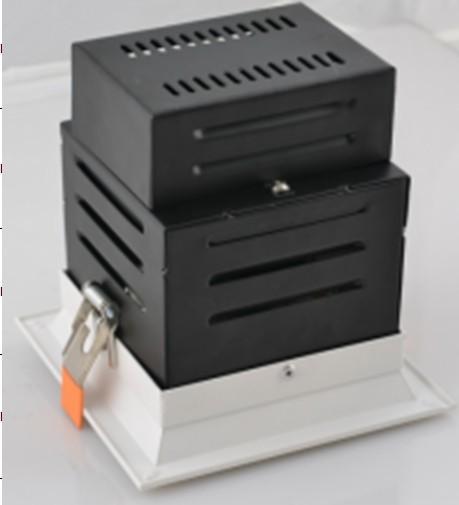

led recessed downlight with MW power supply square led cob light
led recessed downlight with MW power supply square led cob light
Specifications
Place of Origin :
Zhongshan
Brand Name :
Jinsun
Certification :
CE,RoHS
Model Number :
G2015D-CT 15W
MOQ :
100
Packaging Details :
Standard packing or as customer's requirement
Delivery Time :
10-20days
Payment Terms :
T/T(30% in advance), Western Union
Supply Ability :
10,000pcs/month
Base Material :
Aluminum
Cover Material :
Plastic
Light Source :
CITIZEN/CREE/BRIDGELUX
Color :
RGB/3000K/4000K/5000K
Description

<h1> led recessed downlight 2 with customed power supply square led cob light</h1>

Product Feature:

led recessed downlight with MW power supply square led cob light

Model

G2015D-CT

Input Power:

15w

Input Volt:

100-240V AC

PF

>0.75

Luminous Flux:

1250 lm

CRI:

80 Ra

LED light source:

Citizen

Housing

Aluminum

Lifetime:

50,000 Hours

Warranty :

3 Years

Dimmable or Non-dimmable for option

Wattage

Cutout size/mm

Size/mm

Height/mm

10W

125*125(- 0/+3)

140*140

144

15W

140*140(- 0/+3)

160*160

163

25W

170*170(- 0/+3)

190*190

173

40W

185*185(- 0/+3)

203*203

188

Specification:

  • Light Source: LED
  • Item Type: Grille Lamp
  • LED Light Source: Citizen
  • Warranty(Years): 3
  • Input Voltage(V): 100-240
  • Lamp Power(W): 10W
  • Lamp Luminous Flux(lm): 1250lm
  • Lamp Luminous Efficiency(lm/w): 80
  • CRI (Ra>): 80
  • Color Temperature(CCT): WW/WH/CW
  • Working Temperature(℃): -35 - 65
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: Aluminum
  • IP Rating: IP40
  • Certification: CE,RoHS,SAA
  • Model Number:G2010D-CT 10W
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Jinsun

1.Patented Honeycomb Heatsink

2.Citizen cob/Bridgelux cob/Cree cob

3.50000 hours lifespan

4.CRI>80+ PF>0.9

5.High quality 6063 lathe aluminum

6.Same cutout different watt for optional

7.Same watt different beam angle for optional

Parameters:

led recessed downlight with MW power supply square led cob light

Item No.:

G2015D-CT

Power:

15W

Beam angle

15º/25º/38º/60º

Led light source:

Citizen cob/Bridgelux cob

Luminous Flux:

1250LM

Housing:

6063 Aluminum

CCT:

3000K/4000K/5000K

CRI:

≥82

PF:

≥0.90

IP Rating:

IP40

Lifespan:

50000Hours

Warranty:

3years

Non-dimmable and Dimmable for option,0/1~10V,DALI

Global patented Heatsink No.:ZL201310030769.3

Wattage

Cutout Size/mm

Height/mm

Surface Size/mm

Beam Angle

3W

65

50

75

15°/25°/38°/60°

3W

70

50

80

15°/25°/38°/60°

3W

75

50

85

15°/25°/38°/60°

5W

65

60

75

15°/25°/38°/60°

5W

70

60

80

15°/25°/38°/60°

5W

75

60

85

15°/25°/38°/60°

7W

65

60

75

15°/25°/38°/60°

7W

70

60

80

15°/25°/38°/60°

7W

75

60

85

15°/25°/38°/60°

10W

65

75

75

15°/25°/38°/60°

10W

70

75

80

15°/
