Specifications
Place of Origin :
China
Brand Name :
Dongsheng
Certification :
The Third Party
Model Number :
DSO1860
Description

Linear Solenoids︱Push-Pull Solenoids︱Tubular Solenoids︱Closed Frame linear Solenoids----DSO1860 (IR-CUT︱Solenoid Valve︱Electromagnets︱Solenoid Pump)

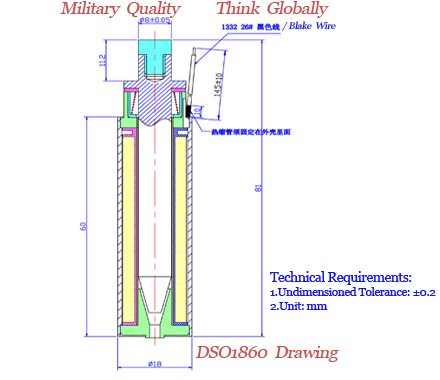

1. Size: Diameter—18mm, Length—60mm

Linear Solenoids︱Tubular Solenoids︱Push-Pull Solenoids

2. Feature:

1) With cylinder design, the magnet casing forms a substantially closed cylindrical shape. The magnetic field flows through metal from the North to the South Pole on all long sides.

2) Belongs to closed frame Linear Solenoids

3) Pull type Solenoids

3. Operating voltage: 3~48V, DC


4. Environment temperature: -10℃~180 ℃

5. Dielectric strength: between the coil and the framework AC1200 (50/60HZ) I seconds (10mA)

6. Temperature rise: less than 65 ℃

7. Life expectancy: Five hundred thousand times (Energized: 2s, De-energized: 2s)

8. Advantage:

1) Long stroke

2) Long service life

3) Large force

4) Flexible motion, rapid response

9. Application:

It is mainly used in medical equipment and automatic wheelchair and other automatic control system.
