Specifications
Place of Origin :
China
Brand Name :
Dongsheng
Certification :
The Third Party
Model Number :
DSD20040
Description

Electromagnets-sucker︱Sucker Solenoids︱Arsenal access control system Sucker Solenoids︱Fire Door Electromagnets---- DSD20040(IR-CUT︱Solenoid Valve︱ Solenoid pump︱ Electromagnets)

Sucker Solenoids can make great electromagnet power when charged with the application of electromagnetic conversion principles so as to control the movement, also known as Electromagnets or Electromagnets-sucker

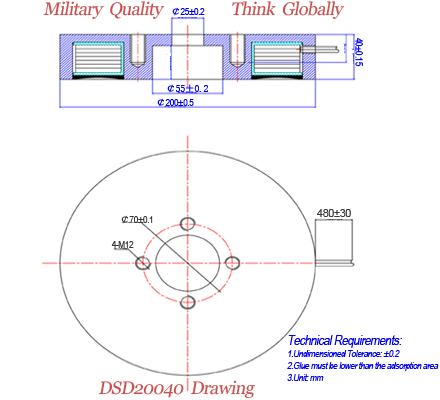

1. Main size: Diameter--200mm, Height-- 40mm

Electromagnets︱Sucker Solenoids︱Arsenal access Sucker Solenoids︱Fire Door Electromagnets

2. Feature:

1) Tubular design, magnetic shell

2) Super strong adsorption force

3. Service life: Ninety million times (Energized: 2s, De-energized: 2s)

Basic Parameters of the Electromagnets
No. Name Result
1 Operating Voltage DC12~220V
2 Dielectric Strength AC1200 (50/60HZ) 1s (10mA)
3 Environment Temp. -10℃~180℃
4 Temp. Rise DC12V, below 65℃

4. Advantage:

1) Withstand strong impactNo.

2) High-temperature resistant

3) Explosion-proof, water-proof, rot-proof

4) Extremely long service life

5) Excellent physical performance

6) High adaptability to environment

5. Main purpose:

It is mainly used in arsenal access control system and other security system.

How to select the Electromagnets?

1. How much is the stroke?

2. How much is the force requirements?

3. How much is the duty cycle?

4. How is the working environment?

Ambient temperature / wet or dry / clean or dusty/ vibration / etc

5. What is the power supply?

Voltage/ DC or AC

Instructions:

The Solenoid &Electromagnet is a non-standard component, 100% ODM or OEM is welcome too, just feel free to contact us.

The more you tell us, the best we can do.
