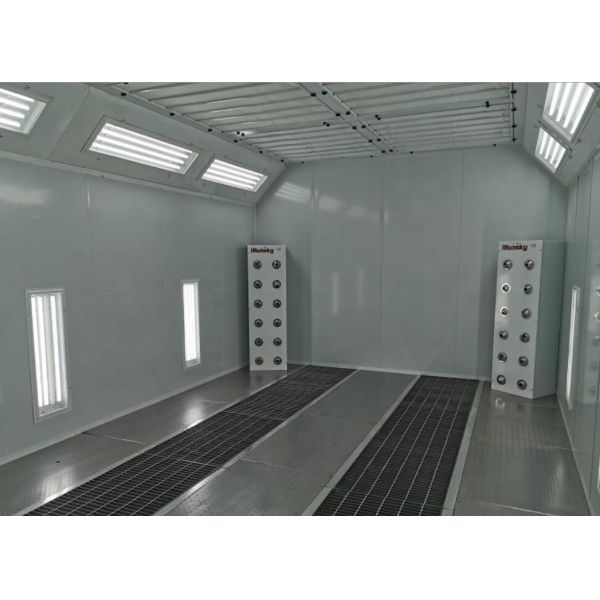

Infrared Heating Industrial Spray Booth Automotive Paint Booth
Infrared Heating Industrial Spray Booth Automotive Paint Booth
Specifications
Brand Name :
Wonderfu
Model Number :
BL01
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A
Supply Ability :
10 Set/Sets per Month
Delivery Time :
5-8working days
Packaging Details :
Polyfoam and cardboards,proper packing suitable for container loading for each accessories
Disc Dia :
Customers Request
Voltage :
380V
Heating System :
Infrared heating system
No Load Speed :
0.25m/s
Internal Size :
6900*4000*2800mm
Usage :
Car Painting
Description
Infrared Heating Industrial Spray Booth Automotive Paint Booth
Industrial Standard Type Car Spray Booth High Quality Painting Machine
Name Quantity/Unit Specifications Requirements
External size mm 7000x5500x3600mm **
Internal size mm 6900x4000x2800mm **
Note: if there is any difference between the internal size and the external size, the internal size shall prevail.
Gate size 1 3000x2700mm Three fold,with glass observation window and explosion-proof door lock,Aluminum alloy edge around.
Side door size 1 800x2000mm With glass observation window,explosion-proof door handle.Aluminum alloy edge.With pedal.
EPS insulation board 110 Square meters The thickness of 75 mm Double-sided color steel plate,single-layer thickness of 0.475mm steel plate,foam density of 10kg/m3.
Static top bracket Electric galvanized
Static press filter cotton web Spray, white
Control System
Pressure Gauge,Temperature Controller,Baking Timer,Hours,Spray Indicator,
Heat Spray Indicator,Bake Indicator,Failure Indicator,Left Light Indicator,
Right Light Indicator,Spray Switch,Heat Spraying Switch,Bake Switch,Left Light Switch,
Right Light Switch,power Indicator,Start Switch,Power Switch,Emergency Stop.

after-sale service:

1. Installation and debugging problems: a. We can send technical personnel to assist in the installation and commissioning of the machine, but customers need to pay for air tickets, hotels, meals, etc. b. Customers need to arrange a number of skilled workers, ready to install machinery and tools.

2. Warranty time:a. 12 months after commissioning

3. Provide all English documents: Including basic drawings, manuals, electrical circuit diagrams, electrical manuals, maintenance manuals, etc.

Infrared Heating Industrial Spray Booth Automotive Paint Booth
