Specifications
Brand Name :
MG
Model Number :
MGDM3.7
Certification :
CE BV ISO 9001:2008
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
10 sets per month
Delivery Time :
20 working days
Packaging Details :
Stand seaworthy packaging
Raw Material :
Sand,Cement,Gypsum,etc
Capacity :
10-30 T/H
Power :
83kw
Size :
8000*8000*8000mm
Mixing Time :
3-5 Minutes/Batch
Packing Machine :
Valve Port Packing Machine
Description
Automatic Tower Type Dry Mix Powder Mortar Mixing Machine

Complete production line for wall putty, sand cement mixer, tile adhesive, glue, and grout manufacturing.

Automatic Tower Type Dry Mortar Production Line with 10-30 T/H Capacity PLC Control System and Twin Shaft Mixer

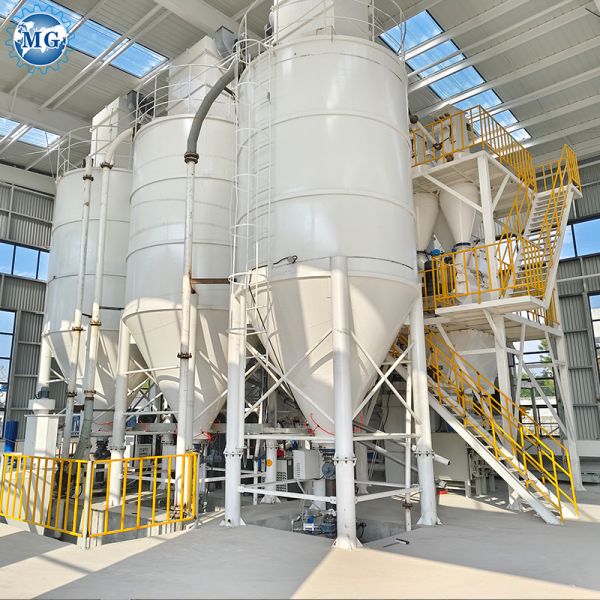

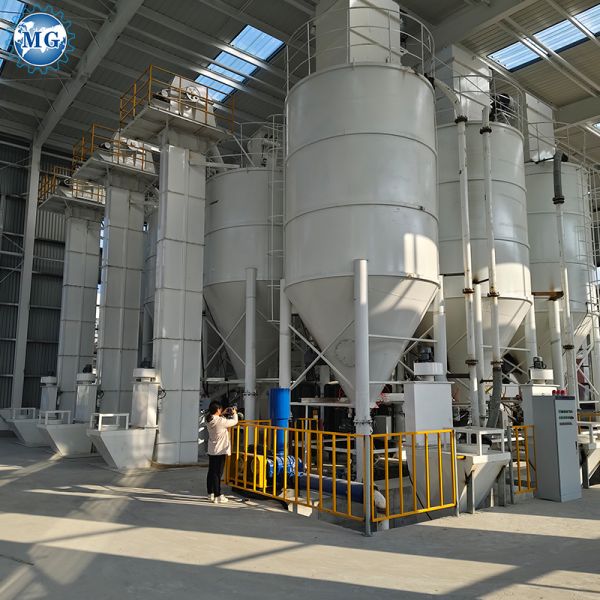

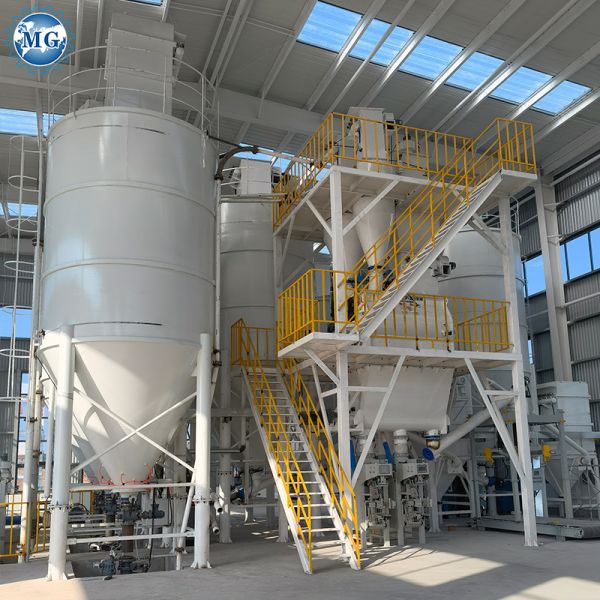

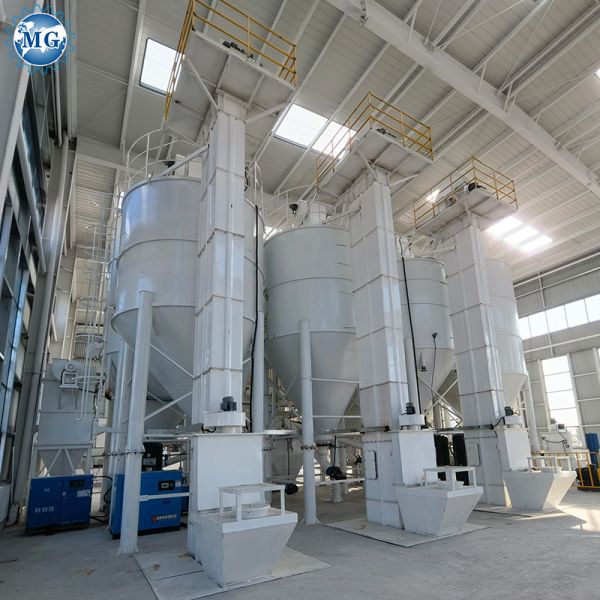

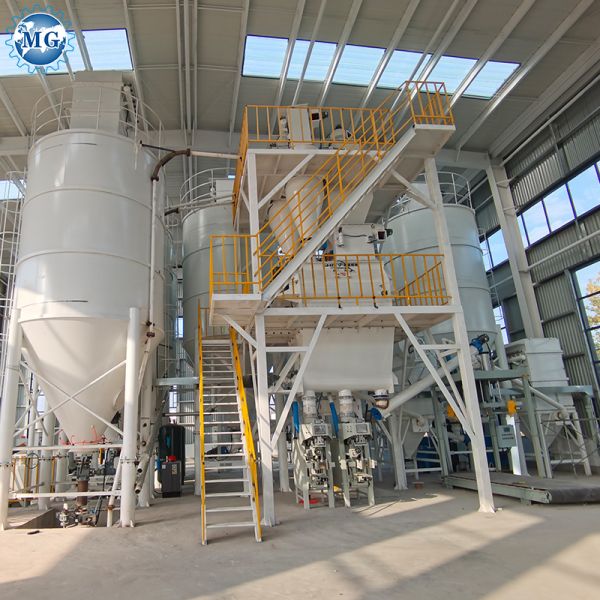

This plant adopts latest German technology with tower-type silo configuration and advanced management systems in automatic control, significantly improving user-friendly operation and automation capabilities. The production capacity ranges from 10-30 tons per hour, featuring automated batching, weighing, conveying, mixing, packaging, and palletizing processes to achieve maximum output with minimal manpower.

Automatic Tower Type Dry Mortar Production Line with 10-30 T/H Capacity PLC Control System and Twin Shaft Mixer
Key Advantages
  • High Degree of Intelligence: PLC control system enables full automation including feeding, batching, weighing, conveying, mixing, packaging, and palletizing
  • Precise Ingredients: Automatic calculation and weighing of each ingredient dosage
  • Tower Layout Structure: Shortened transportation distance for enhanced production efficiency
  • Twin Shaft Mixer: High mixing uniformity prevents segregation of materials with varying physical properties
Automatic Tower Type Dry Mortar Production Line with 10-30 T/H Capacity PLC Control System and Twin Shaft MixerAutomatic Tower Type Dry Mortar Production Line with 10-30 T/H Capacity PLC Control System and Twin Shaft MixerAutomatic Tower Type Dry Mortar Production Line with 10-30 T/H Capacity PLC Control System and Twin Shaft Mixer
Raw Materials
  • Cementing Materials: Cement, lime, plaster
  • Aggregates: Yellow sand, quartz sand, limestone, dolomite, expanded perlite
  • Mineral Admixtures: Industrial byproducts, industrial slag, fly ash, pozzolana, fine silica powder
  • Water-retention and Thickening Materials
  • Chemical Additives
Automatic Tower Type Dry Mortar Production Line with 10-30 T/H Capacity PLC Control System and Twin Shaft MixerAutomatic Tower Type Dry Mortar Production Line with 10-30 T/H Capacity PLC Control System and Twin Shaft Mixer
Applications

Our dry mix powder mortar plant produces various types of dry mortar including:

  • Wall putty
  • Skim coat
  • Plaster mortar
  • Gypsum mortar
  • Ceramic tile adhesive
  • Tile glue
  • Tile grout
  • Tile joint compounds
Automatic Tower Type Dry Mortar Production Line with 10-30 T/H Capacity PLC Control System and Twin Shaft MixerAutomatic Tower Type Dry Mortar Production Line with 10-30 T/H Capacity PLC Control System and Twin Shaft Mixer
Working Principle

The dry mortar manufacturing process follows these steps:

  1. Raw materials are transported into silos via bucket elevator or pump truck
  2. Materials are conveyed from silos to automatic weighing scale according to formula ratios using screw conveyors
  3. Premixed materials are lifted into premix hopper by bucket elevator
  4. Materials enter twin shaft paddle mixer for uniform mixing
  5. Mixed materials are transferred to automatic packing machine
  6. Packed bags are conveyed to next processing stage via belt conveyor
Automatic Tower Type Dry Mortar Production Line with 10-30 T/H Capacity PLC Control System and Twin Shaft Mixer
Technical Specifications
Model2000L Mixer Plant3000L Mixer Plant4000L Mixer Plant6000L Mixer Plant
Capacity10-12T/H15-20T/H20-25T/H30-50T/H
Machine Height8-10m10-14m10-14m15-20m
Total Power80-90KW90-100KW90-100KW100-120KW
Workers Required2-3 person3-4 person3-4 person3-4 person
Workshop Required500-600m²600-800m²600-800m²800-1000m²
Bag Belt ConveyorB500X5000mmB500X5000mmB500X5000mmB500X5000mm
Automatic Tower Type Dry Mortar Production Line with 10-30 T/H Capacity PLC Control System and Twin Shaft MixerAutomatic Tower Type Dry Mortar Production Line with 10-30 T/H Capacity PLC Control System and Twin Shaft Mixer
Company Expertise

China Zhengzhou MG Company has extensive project experience both domestically and internationally. With comprehensive knowledge in dry mortar equipment installation and production processes, we provide professional project design, process optimization, and technical solutions including production improvements and formulation expertise for various dry mortar types.

Automatic Tower Type Dry Mortar Production Line with 10-30 T/H Capacity PLC Control System and Twin Shaft MixerAutomatic Tower Type Dry Mortar Production Line with 10-30 T/H Capacity PLC Control System and Twin Shaft MixerAutomatic Tower Type Dry Mortar Production Line with 10-30 T/H Capacity PLC Control System and Twin Shaft Mixer

Zhengzhou MG Industrial Co., Ltd., established in 2003, is a leading manufacturer of building material equipment in China. For over 20 years, we have provided customers worldwide with professional, efficient solutions including high-quality machinery, formulation technology, and specialized additives.

Our product range includes:

  • Dry mortar plants
  • Thermal insulation mortar production lines
  • Sand dryers
  • Screw ribbon mixer machines
  • Twin shaft paddle mixer machines
  • Impulse dust collectors
  • Automatic packing machines
Automatic Tower Type Dry Mortar Production Line with 10-30 T/H Capacity PLC Control System and Twin Shaft MixerAutomatic Tower Type Dry Mortar Production Line with 10-30 T/H Capacity PLC Control System and Twin Shaft MixerAutomatic Tower Type Dry Mortar Production Line with 10-30 T/H Capacity PLC Control System and Twin Shaft MixerAutomatic Tower Type Dry Mortar Production Line with 10-30 T/H Capacity PLC Control System and Twin Shaft MixerAutomatic Tower Type Dry Mortar Production Line with 10-30 T/H Capacity PLC Control System and Twin Shaft MixerAutomatic Tower Type Dry Mortar Production Line with 10-30 T/H Capacity PLC Control System and Twin Shaft Mixer
Frequently Asked Questions
Are you manufacturer or trading company?
We are factory, established in 2003.
How many workers are needed to operate the equipment?
Our 10-50 t/h automatic dry mortar production line needs about 3-4 workers.
What is your payment method?
We usually accept T/T, LC, western union, Paypal, and other payment methods.
How long is the warranty?
12 months, with free technical services provided within this period.
If I need the complete dry mortar plant can you help us to build it?
Yes, we can help you set up a complete production line and provide related professional advice. We have successfully built many dry mortar projects in China and overseas.

If you are interested in our dry mortar production line, please feel free to send us an inquiry or leave your contact information.
