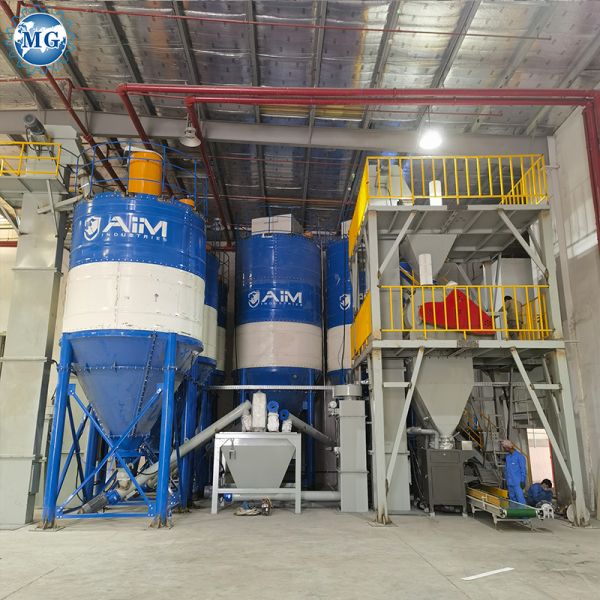

The automatic dry mix powder mortar plant is an advanced powder mixing equipment system. This mixing station combines a twin-shaft mixer with a precision batching system to maximize the advantages of both components. Operation is simple and convenient with Chinese and English menu displays that simulate device status with audible and visual alarms. During operation, minimal button inputs transfer the entire workflow to computer-controlled automation.

The silo stores dry building raw material powders including sand, cement, fly ash, slag, and calcium carbonate powder. MG standard silos include level regulators, air breaking devices, dust collectors, pressure safety valves, and complete assembly accessories. The air breaking device assists with air exhaust during material feeding, while the dust collector clears top-level dust. Level regulators detect maximum and minimum material levels for timely refilling, and safety valves prevent material discharge issues. Materials discharge quickly when working with screw conveyors.

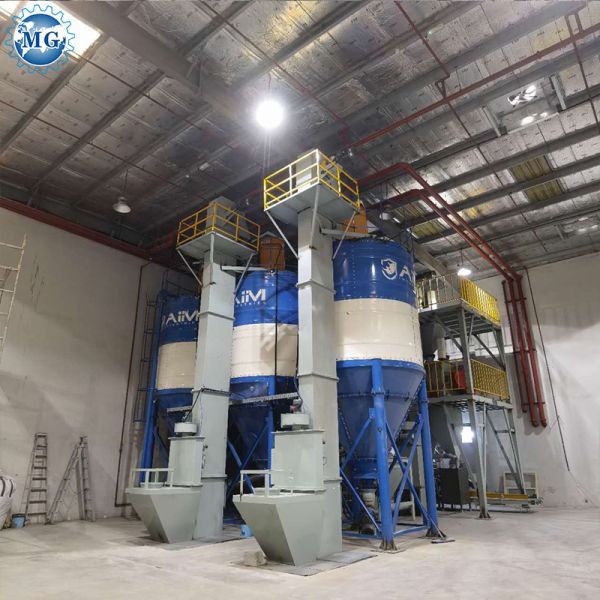

This vertical lifting device reaches heights of 20-35m with high-efficiency lifting speed and large transport capacity. Bucket elevators are widely used for lifting various powder or granular materials. Available in belt type and chain type options, with chain bucket elevators capable of lifting heated materials with higher capacity and lifting height.

This automatic batching system significantly saves manpower and material resources. Equipped with three S-type sensors around the machine for precise measurements during operation. Input raw material weights according to formulation requirements for high precision, reduced weighing errors, labor cost savings, and improved output.

Features high mixing speed, excellent uniformity, and low power consumption. Materials with significant differences in physical properties such as specific gravity, particle size, and shape do not easily segregate during mixing. Pneumatic-controlled material discharge completes within 3-5 seconds.

Utilizes computerized metering devices for accurate weighing, stable performance, and simple operation. Equipped with dust collection mouth for environmentally friendly production. PLC-controlled for intelligent operation, compatible with bag belt conveyors and robot palletizers.

Specifically designed for dry mortar machine dust collection, equipped with pulse solenoid valves for automatic dust removal. Compact structure with convenient maintenance, featuring large ash removal kinetic energy and high efficiency. Uses special fabric filter for effective dust collection. Integrated fans, cloth cylinders, and filter assemblies simplify workflow processes.

PLC control system with high intelligence level, providing automated control from raw material storage silos, screw conveyors, ingredient weighing through mixing, packaging, and complete dry mortar plant management. Intelligent and easy to operate.

When the automatic feeding dry mix powder mortar plant operates: Firstly, different raw materials are transported into silos via bucket elevator or pump truck. Secondly, materials are conveyed from silos to the automatic weighing scale in formula ratios using screw conveyors. Thirdly, premixed materials are lifted into the premix hopper by bucket elevator. Fourthly, materials enter the twin shaft paddle mixer for uniform mixing. Fifthly, mixed materials proceed to the automatic packing machine for packaging. Finally, packed bags are conveyed to the next process via belt conveyor.

We offer dry mortar mixing plant capacities ranging from 3-50T/H according to your requirements. We can also customize production lines to meet specific needs.

Yes, we can. With over 20 years of experience as professional dry mortar production equipment suppliers, we serve customers worldwide. As executive members of the Chinese Private Technology Promotion Committee and Building Materials Experts Association, we provide optimal formulas for all types of dry mortar.

12 months warranty with free technical services during this period.

We are a factory with our own mechanical design engineers and project design engineers. All machinery is manufactured in-house. We provide customized solution designs according to customer needs, including early project communication, scheme design, equipment selection, production, site planning, equipment layout, transportation, delivery, installation, and commissioning.

Yes. Our machines come with a 12-month warranty, and we maintain a professional after-sale service team to promptly and thoroughly resolve any issues.

Yes. All our engineers have passports and we can send experienced engineers to customer sites to guide equipment installation and debug production lines until operational. We provide installation instructions, layout drawings, assembly drawings, and online video guidance for customers with their own engineering teams.
