1-5 T/H Capacity Dry Mortar Mixer Machine with 20kw Power and Automatic Packing for Tile Adhesive Manufacturing
1-5 T/H Capacity Dry Mortar Mixer Machine with 20kw Power and Automatic Packing for Tile Adhesive Manufacturing
1-5 T/H Capacity Dry Mortar Mixer Machine with 20kw Power and Automatic Packing for Tile Adhesive Manufacturing
1-5 T/H Capacity Dry Mortar Mixer Machine with 20kw Power and Automatic Packing for Tile Adhesive Manufacturing
1-5 T/H Capacity Dry Mortar Mixer Machine with 20kw Power and Automatic Packing for Tile Adhesive Manufacturing
1-5 T/H Capacity Dry Mortar Mixer Machine with 20kw Power and Automatic Packing for Tile Adhesive Manufacturing
1-5 T/H Capacity Dry Mortar Mixer Machine with 20kw Power and Automatic Packing for Tile Adhesive Manufacturing
1-5 T/H Capacity Dry Mortar Mixer Machine with 20kw Power and Automatic Packing for Tile Adhesive Manufacturing
1-5 T/H Capacity Dry Mortar Mixer Machine with 20kw Power and Automatic Packing for Tile Adhesive Manufacturing
1-5 T/H Capacity Dry Mortar Mixer Machine with 20kw Power and Automatic Packing for Tile Adhesive Manufacturing
1-5 T/H Capacity Dry Mortar Mixer Machine with 20kw Power and Automatic Packing for Tile Adhesive Manufacturing
1-5 T/H Capacity Dry Mortar Mixer Machine with 20kw Power and Automatic Packing for Tile Adhesive Manufacturing
Specifications
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Application :
Dry Powder Mixing
Power :
20kw
Color :
Grey/White/Blue Or Customized
Model Number :
MGDM3.1
Workers :
2-3 Persons
Price :
negotiable
Capacity :
1-5 T/H
Certification :
CE BV ISO 9001:2008
MOQ :
1
Delivery Time :
20 working days
Size :
6000*3000*3200mm
Supply Ability :
10 sets per month
Raw Material :
Sand,Cement,Gypsum,etc
Mixing Time :
10-15 Minutes/Batch
Place of Origin :
China
Packing Machine :
Valve Port Packing Machine
Brand Name :
MG
Formula :
Provided
Packaging Details :
Stand seaworthy packaging
Description
Simple Dry Mix Powder Mortar Mixing Machine
Product Overview

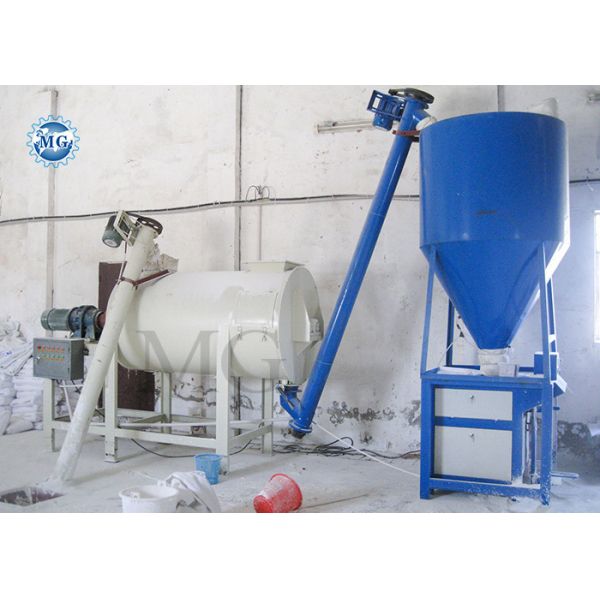

The MG series Dry Mix Mortar Tile Adhesive Production Line Manufacturing Plant is designed based on traditional single mixer technology, enhanced with material transportation systems, finished product storage silos, and automatic packing machines. This integrated system forms a complete dry mortar production line that significantly improves working efficiency by automating the entire process from feeding and mixing to conveying and packing.

1-5 T/H Capacity Dry Mortar Mixer Machine with 20kw Power and Automatic Packing for Tile Adhesive Manufacturing 1-5 T/H Capacity Dry Mortar Mixer Machine with 20kw Power and Automatic Packing for Tile Adhesive Manufacturing 1-5 T/H Capacity Dry Mortar Mixer Machine with 20kw Power and Automatic Packing for Tile Adhesive Manufacturing
Product Configuration
Model Capacity Occupied Area Equipment Height Manpower Batching & Packaging
Simple type 3-4t/h 20㎡ 3-4m 2-3 Person Manual batching
Automatic packaging
Semi-automatic type 6-8t/h 50-60㎡ 6-8m 3-4 Person Manual batching
Automatic packaging
Full automatic type 8-30t/h 60-100㎡ 8-13m 3-4 Person Automatic batching
Automatic packaging
Key Components

1. Ribbon Mixer Machine
The screw ribbon mixer offers exceptional economy and cost-effectiveness for dry mortar mixing. Its dual-action mixing system features outer and inner screw ribbon blades driven by high-speed rotating shafts. The inner blades push material outward while outer blades pull material inward, creating thorough back-and-forth mixing for uniform results in just 10-15 minutes per batch.

2. Screw Conveyor
Features a Φ165×3500mm design that efficiently transfers mixed mortar from the mixer to the finished product hopper.

3. Finished Product Storage Silo
With approximately 1.5m³ capacity, this hopper stores finished materials and feeds the packing machine, significantly improving operational efficiency.

4. Automatic Packing Machine
Valve-type automatic dry mortar packing machine with adjustable capacity from 15-50kg per bag. Powered by a 4kw motor, it achieves packing speeds of 5-6 seconds per bag with high weighing accuracy, automation level, and easy maintenance.

5. Air Compressor
0.25m³ capacity with 2.2kw power, providing air source for the automatic packing machine and finished product hopper to enable quick packing and prevent material bridging.

1-5 T/H Capacity Dry Mortar Mixer Machine with 20kw Power and Automatic Packing for Tile Adhesive Manufacturing 1-5 T/H Capacity Dry Mortar Mixer Machine with 20kw Power and Automatic Packing for Tile Adhesive Manufacturing
Working Principle
1-5 T/H Capacity Dry Mortar Mixer Machine with 20kw Power and Automatic Packing for Tile Adhesive Manufacturing
  1. Raw materials are loaded into the screw conveyor feeding pot
  2. Materials are transported into the mixer via screw conveyor
  3. Multiple raw materials are thoroughly mixed by the multi-ribbon screw mixer
  4. Mixed material is conveyed to the end product silo via second screw conveyor
  5. Finished product is automatically packed into bags by the packing machine
Raw Materials
1-5 T/H Capacity Dry Mortar Mixer Machine with 20kw Power and Automatic Packing for Tile Adhesive Manufacturing
Applications
1-5 T/H Capacity Dry Mortar Mixer Machine with 20kw Power and Automatic Packing for Tile Adhesive Manufacturing 1-5 T/H Capacity Dry Mortar Mixer Machine with 20kw Power and Automatic Packing for Tile Adhesive Manufacturing 1-5 T/H Capacity Dry Mortar Mixer Machine with 20kw Power and Automatic Packing for Tile Adhesive Manufacturing 1-5 T/H Capacity Dry Mortar Mixer Machine with 20kw Power and Automatic Packing for Tile Adhesive Manufacturing 1-5 T/H Capacity Dry Mortar Mixer Machine with 20kw Power and Automatic Packing for Tile Adhesive Manufacturing 1-5 T/H Capacity Dry Mortar Mixer Machine with 20kw Power and Automatic Packing for Tile Adhesive Manufacturing 1-5 T/H Capacity Dry Mortar Mixer Machine with 20kw Power and Automatic Packing for Tile Adhesive Manufacturing 1-5 T/H Capacity Dry Mortar Mixer Machine with 20kw Power and Automatic Packing for Tile Adhesive Manufacturing 1-5 T/H Capacity Dry Mortar Mixer Machine with 20kw Power and Automatic Packing for Tile Adhesive Manufacturing
Frequently Asked Questions
1. How is the quality of your products?
Our machines are manufactured strictly according to national and international standards. We assemble, test, and carefully pack all equipment before delivery. With exports to numerous countries including Australia, Malaysia, India, Indonesia, and Vietnam, you can rest assured of our product quality.
2. What is your business model? Trading company or factory?
We are a factory with our own mechanical design engineers and project design engineers. All machinery is manufactured in-house. We provide customized solutions and full-process services including project communication, scheme design, equipment selection, production, site planning, transportation, delivery, installation, and commissioning.
3. Do you provide after-sale service?
Yes. Our machines come with a 12-month warranty period, supported by a professional after-sales service team dedicated to promptly and thoroughly resolving any issues.
4. Do you provide equipment operation training?
Yes. Our experienced engineers can be sent to customer sites to guide equipment installation and debug production lines until operational. We provide comprehensive documentation including installation instructions, layout drawings, and assembly drawings. For customers with their own engineers, we offer detailed installation guidance and online video support.
5. Can I visit your factory?
Yes! We welcome factory visits and host numerous domestic and international customers annually. We provide invitation letters for visa applications and professional business reception services including airport or station pickup.
6. What is the process for purchasing equipment?
Contact customer service → Understand basic requirements → Equipment quotation → Sign contract → Equipment production

If you are interested in our dry mortar production line, please feel free to send us an inquiry or leave your contact number for us.
