1-8 T/H Small Dry Mix Mortar Mixing Plant for wall putty, floor tile adhesive, glue, and grout making applications.

The MG series Dry Mix Mortar Mixing Plant integrates material transportation, finished product storage, and automatic packing into a complete production line. This automated system significantly improves working efficiency by handling feeding, mixing, conveying, and packing processes automatically.

Customizable configurations available with optional loading screw conveyors, valve type or open type packing machines, and automatic weighing scales. The complete line operates with only 2-3 workers, offering capacities of 3-4 t/h, 4-6 t/h, and 7-8 t/h.

High-economy screw ribbon mixer with outer and inner spiral blades for maximum material mixing. Mixing time: 10-15 minutes per batch.

• Model: 165×3500, 219×3500
• Material: Q235A
• Thickness: 3mm
• Diameter: Φ165mm, 219mm

Φ165×3500mm conveyor transfers mixed mortar from mixer to finished product hopper.

• Motor: 5kw, 7.5kw, 11kw
• Capacity: 0.5-3 T/batch
• Mixing Speed: 10-15 min/batch

1.5m³ capacity hopper stores finished material for packing, significantly improving efficiency.

• Volume: 1.5m³, 2.5m³, 3.7m³
• Diameter: Φ1250mm
• Material: Q235A

Valve type automatic packing with adjustable 15-50kg/bag capacity and 5-6 seconds per bag speed.

• Packing Accuracy: >98%
• Weighing Range: 15-50 kg/bags
• Packing Speed: 4-6s/bag
• Power: 4kw

0.25m³, 2.2kw unit provides air source for packing machine and product hopper operations.

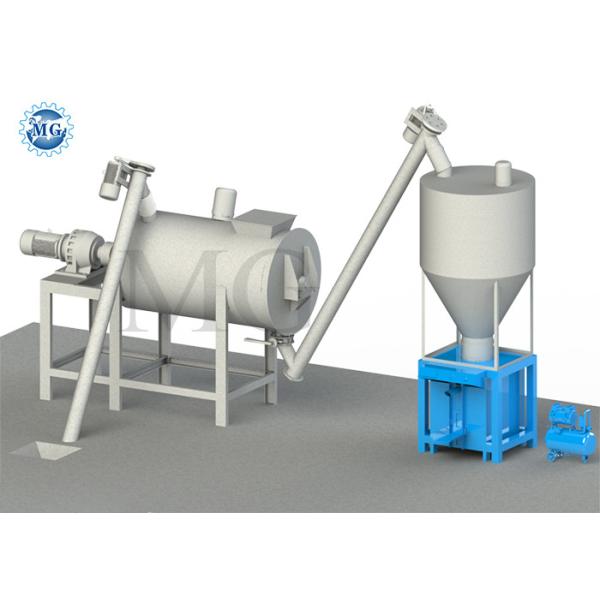

The MGDM-3.0 system includes feeding screw conveyor, multi-spiral ribbon mixer, discharge screw conveyor, finished product hopper, automatic valve bag packing machine, air compressor, and control panel.

Operation process:

• Raw materials are loaded into the feeding screw conveyor
• Materials are transported to the multi-ribbon screw mixer
• Multiple raw materials are thoroughly mixed
• Mixed material is conveyed to the end product silo
• Finished product is packed into bags by automatic packing machine

We offer dry mortar mixing plant capacities ranging from 3-50T/H according to your requirements, with customizable production line solutions.

Yes, with over 20 years of experience in dry mortar production equipment, we provide optimal formulas for various applications as executive members of Chinese building materials associations.

12 months warranty with complimentary technical services during this period.

We are a factory with our own mechanical and project design engineers, offering customized solutions including equipment production, site planning, installation, and commissioning services.

Yes, we have a professional after-sales service team to promptly address any issues during the 12-month warranty period.

As a factory, we offer competitive pricing with quantity-based discounts and honest business practices.
