Specifications
Supply Ability :
10 sets per month
Raw Material :
Sand,Cement,Gypsum,etc
Brand Name :
MG
Formula :
Provided
Model Number :
MGDM3.7
Workers :
3-4 Persons
MOQ :
1
Delivery Time :
20 working days
Size :
8000*8000*8000mm
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,
Application :
Dry Powder Mixing
Power :
83kw
Price :
negotiable
Capacity :
10-30 T/H
Color :
Grey/White/Blue Or Customized
Mixing Time :
3-5 Minutes/Batch
Certification :
CE BV ISO 9001:2008
Place of Origin :
China
Packing Machine :
Valve Port Packing Machine
Packaging Details :
Stand seaworthy packaging
Description
Product Formula Customized Dry Mix Powder Mortar Mixing Plant
Product Formula Customized Dry Mix Powder Mortar Mixing Plant Wall Putty Sand Cement Mixer Ceramic Tile Adhesive Making Macine
Product Overview

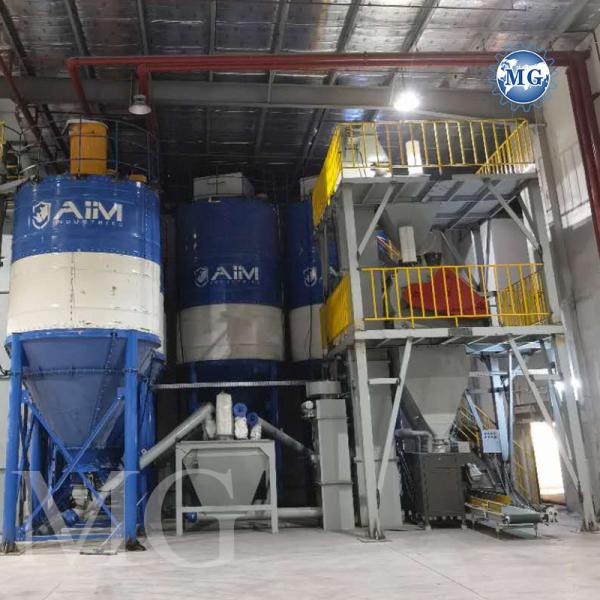

The automatic dry mix powder mortar plant is an advanced powder mixing equipment system. This mixing station combines a twin-shaft mixer with a precision batching system to maximize the advantages of both components. Operation is simple and convenient with Chinese and English menu interfaces that display simulated device status with audible and visual alarms. During operation, minimal button inputs transfer the entire workflow to computer-controlled automation.
Product Specifications
Model Capacity Equipment Height Total Power Workers Required Workshop Required
2000L Mixer 10-12T/H 8-10m 80-90KW 2-3 Person 500-600m²
3000L Mixer 15-20T/H 10-14m 90-100KW 3-4 Person 600-800m²
4000L Mixer 20-30T/H 10-14m 100-120KW 3-4 Person 600-800m²
6000L Mixer 30-50T/H 15-20m 100-120KW 3-4 Person 800-1000m²
10000L Mixer 50-80T/H 20-25m 120-150KW 3-4 Person 1000-1200m²
System Components
Raw Material Storage Silo
Designed for storing dry building raw materials including sand, cement, fly ash, slag, and calcium carbonate powder. Standard silos include level regulators, air breaking devices, dust collectors, pressure safety valves, and complete assembly accessories. The air breaking device facilitates material feeding while the dust collector maintains clean operation. Level regulators monitor material levels for timely refilling, and safety valves ensure smooth material discharge when working with screw conveyors.
Bucket Elevator
A vertical lifting device capable of reaching heights of 20-35m with high-efficiency lifting speed and substantial transport capacity. Available in belt type and chain type configurations. Chain bucket elevators can handle heated materials and offer higher capacity and lifting height capabilities.
Automatic Weighing System
This automated batching system significantly reduces labor and material resource requirements. Equipped with three S-type sensors for precise measurements during operation. Input formulation weights for each raw material with high precision, minimizing weighing errors while saving labor costs and improving output.
Twin Shaft Agravic Paddle Mixer
Features high mixing speed, superior uniformity, and low power consumption. Effectively mixes materials with significant differences in specific gravity, particle size, and shape without segregation. Pneumatic-controlled material discharge completes within 3-5 seconds.
Automatic Packing Machine
Utilizes computerized metering devices for accurate weighing, stable performance, and simple operation. Equipped with dust collection ports for environmentally friendly production. PLC-controlled for intelligent operation, compatible with bag belt conveyors and robot palletizers.
Pulse Dust Collector
Specifically designed for dry mortar machine dust collection with pulse solenoid valves for automatic dust removal. Compact structure with convenient maintenance, featuring high ash removal kinetic energy and efficiency. Uses specialized fabric filters for optimal dust collection with integrated fans, cloth cylinders, and filter assemblies.
Control Cabinet
PLC control system with high intelligence level, providing automated control from raw material storage through screw conveying, ingredient weighing, mixing, packaging, and complete dry mortar plant management. Intelligent and user-friendly operation.
Product Formula Customized Dry Mix Powder Mortar Mixing Plant Wall Putty Sand Cement Mixer Ceramic Tile Adhesive Making Macine
Product Formula Customized Dry Mix Powder Mortar Mixing Plant Wall Putty Sand Cement Mixer Ceramic Tile Adhesive Making Macine
Working Principle
Product Formula Customized Dry Mix Powder Mortar Mixing Plant Wall Putty Sand Cement Mixer Ceramic Tile Adhesive Making Macine
The automated feeding dry mix powder mortar plant operates through a systematic process:
  • Various raw materials are transported into storage silos via bucket elevator or pump truck
  • Materials are conveyed from silos to automatic weighing scales according to formulation ratios using screw conveyors
  • Premixed materials are lifted into the premix hopper by bucket elevator
  • Materials enter the twin shaft paddle mixer for uniform blending
  • Mixed materials proceed to the automatic packing machine for packaging
  • Packaged bags are conveyed to subsequent processes via belt conveyor
Raw Materials
Product Formula Customized Dry Mix Powder Mortar Mixing Plant Wall Putty Sand Cement Mixer Ceramic Tile Adhesive Making Macine
Applications
Product Formula Customized Dry Mix Powder Mortar Mixing Plant Wall Putty Sand Cement Mixer Ceramic Tile Adhesive Making Macine
Product Formula Customized Dry Mix Powder Mortar Mixing Plant Wall Putty Sand Cement Mixer Ceramic Tile Adhesive Making Macine
Product Formula Customized Dry Mix Powder Mortar Mixing Plant Wall Putty Sand Cement Mixer Ceramic Tile Adhesive Making Macine
Product Formula Customized Dry Mix Powder Mortar Mixing Plant Wall Putty Sand Cement Mixer Ceramic Tile Adhesive Making Macine
Product Formula Customized Dry Mix Powder Mortar Mixing Plant Wall Putty Sand Cement Mixer Ceramic Tile Adhesive Making Macine
Product Formula Customized Dry Mix Powder Mortar Mixing Plant Wall Putty Sand Cement Mixer Ceramic Tile Adhesive Making Macine
Product Formula Customized Dry Mix Powder Mortar Mixing Plant Wall Putty Sand Cement Mixer Ceramic Tile Adhesive Making Macine
Product Formula Customized Dry Mix Powder Mortar Mixing Plant Wall Putty Sand Cement Mixer Ceramic Tile Adhesive Making Macine
Product Formula Customized Dry Mix Powder Mortar Mixing Plant Wall Putty Sand Cement Mixer Ceramic Tile Adhesive Making Macine
Frequently Asked Questions
What is the capacity of your automatic dry mortar mixing plant?
We offer dry mortar mixing plants with capacities ranging from 3-50T/H according to your requirements. We can also customize production lines to meet specific needs.
Can you provide formulas for different types of dry mortar?
Yes, as a professional dry mortar production equipment supplier with over 20 years of experience serving customers worldwide, we have extensive expertise in dry mortar production. As executive members of Chinese private Technology Promotion Committee and Building Materials Experts Association, we can provide optimal formulas for various applications.
What is the equipment guarantee?
12 months warranty with complimentary technical services during this period.
What is your business model? Trading company or factory?
We operate as a factory with our own mechanical design engineers and project design engineers, manufacturing all machinery in-house. We provide customized solution design and comprehensive services including project communication, scheme design, equipment selection, production, site planning, equipment layout, transportation, installation, and commissioning.
Do you provide after-sale service?
Yes. Our machines come with a 12-month warranty, supported by a professional after-sale service team dedicated to prompt and thorough problem resolution.
Do you provide equipment operation training?
Yes. Our engineers are passport-ready and can be dispatched to customer sites for equipment installation guidance, production line debugging, and commissioning support. We provide installation instructions, layout drawings, assembly drawings, and online video guidance for customers with their own engineering teams.
If you are interested in our dry mortar production line, please feel free to send us an inquiry or leave your contact information.
