Specifications
Supply Ability :
10 sets per month
Raw Material :
Sand,Cement,Gypsum,etc
Mixing Time :
3-5 Minutes/Batch
Model Number :
MGDM3.7
Workers :
3-4 Persons
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Application :
Dry Powder Mixing
Power :
83kw
Price :
negotiable
Capacity :
10-30T/H
Color :
Grey/White/Blue Or Customized
MOQ :
1
Delivery Time :
20 working days
Size :
8000*8000*8000mm
Certification :
CE BV ISO 9001:2008
Place of Origin :
China
Packing Machine :
Valve Port Packing Machine
Packaging Details :
Stand seaworthy packaging
Brand Name :
MG
Formula :
Provided
Description
High Speed Mixing Dry Mix Powder Mortar Mixing Plant
Automatic powder mixing equipment for wall putty, plaster, gypsum, ceramic tile adhesive production and other dry mortar applications.
Product Description
The latest design dry mix powder mortar mixing plant is an automatic powder mixing equipment. The proposed mixing station consisting of a combination of a twin-shaft mixer and a batching system can fully utilize the advantages of both systems. Operation is simple and convenient with Chinese and English menu displays, simulated device status monitoring, and audible/visual alarms. The entire work process is computer-controlled after minimal button operation.
Key Advantages
  • High degree of intelligence: Program-controlled system enables total automation of batching, weighing, feeding, mixing, and packing
  • Tower layout structure: Shortens transportation distance and increases production capacity
  • Gravimetric biaxial mixer: Provides high mixing uniformity and prevents segregation of materials with varying physical properties
Technical Specifications
Model Capacity Equipment Height Total Power Workers Required Workshop Required
2000L Mixer 10-12T/H 8-10m 80-90KW 2-3 Person 500-600m²
3000L Mixer 15-20T/H 10-14m 90-100KW 3-4 Person 600-800m²
4000L Mixer 20-30T/H 10-14m 100-120KW 3-4 Person 600-800m²
6000L Mixer 30-50T/H 15-20m 100-120KW 3-4 Person 800-1000m²
10000L Mixer 50-80T/H 20-25m 120-150KW 3-4 Person 1000-1200m²
Working Principle

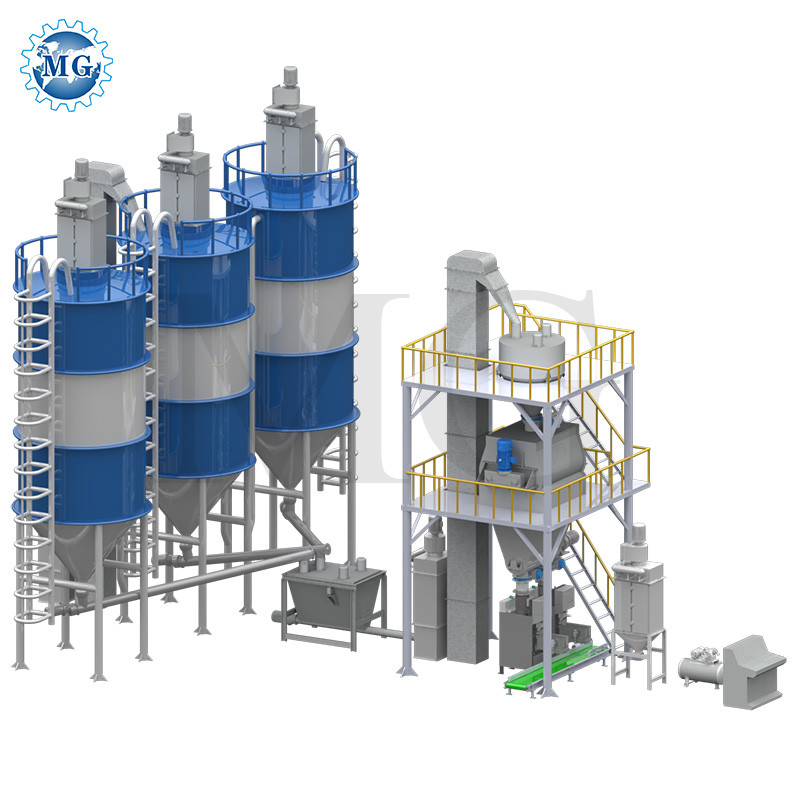

High Speed Mixing Dry Mix Powder Mortar Mixing Plant Wall Putty Plaster Gypsum Mixer Machine Ceramic Tile Adhesive Production Line
When the dry mortar manufacturing plant operates:
  1. Raw materials are transported into silos via bucket elevator or pump truck
  2. Materials are conveyed from silos to automatic weighing scale by screw conveyor according to formula ratio
  3. Premixed materials are lifted into premix hopper by bucket elevator
  4. Materials enter twin shaft paddle mixer for uniform mixing
  5. Mixed materials are transferred to automatic packing machine
  6. Packed bags are conveyed to next process via belt conveyor
Raw Materials
High Speed Mixing Dry Mix Powder Mortar Mixing Plant Wall Putty Plaster Gypsum Mixer Machine Ceramic Tile Adhesive Production Line
  • Cementing materials: Cement, lime, gypsum
  • Aggregate: Yellow sand, quartz sand, limestone, dolomite, expanded perlite
  • Mineral admixture: Industrial byproducts, industrial slag, fly ash, pozzolana, fine silica powder
  • Water-retention and thickening materials
  • Chemical additives
Applications
High Speed Mixing Dry Mix Powder Mortar Mixing Plant Wall Putty Plaster Gypsum Mixer Machine Ceramic Tile Adhesive Production Line
  • Bonding mortar: Masonry mortar, wall and floor tile adhesive, ceramic tile adhesive, anchorage mortar
  • Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar
  • Protection mortar: Water-proof, anti-corrosion, self-leveling, wear resistance, thermal insulation, sound insulation, repair, anti-crack, mildew-proof, shielding mortar
About Our Company
Zhengzhou MG Industrial Co., Ltd. is a leading manufacturer of building material equipment in China, providing professional solutions for high-quality machinery, formula technology, and special additives for over 20 years.
Main products include dry mortar plants, thermal insulation mortar production lines, sand dryers, powder blending machines, impulse dust collectors, automatic packing machines, and related equipment.
MG products are used in over 1,000 building materials enterprises in China and exported to more than 50 countries including Canada, Russia, Korea, Malaysia, UAE, Argentina, Chile, Ecuador, Morocco, South Africa, and Nigeria.
High Speed Mixing Dry Mix Powder Mortar Mixing Plant Wall Putty Plaster Gypsum Mixer Machine Ceramic Tile Adhesive Production Line High Speed Mixing Dry Mix Powder Mortar Mixing Plant Wall Putty Plaster Gypsum Mixer Machine Ceramic Tile Adhesive Production Line High Speed Mixing Dry Mix Powder Mortar Mixing Plant Wall Putty Plaster Gypsum Mixer Machine Ceramic Tile Adhesive Production Line High Speed Mixing Dry Mix Powder Mortar Mixing Plant Wall Putty Plaster Gypsum Mixer Machine Ceramic Tile Adhesive Production Line High Speed Mixing Dry Mix Powder Mortar Mixing Plant Wall Putty Plaster Gypsum Mixer Machine Ceramic Tile Adhesive Production Line High Speed Mixing Dry Mix Powder Mortar Mixing Plant Wall Putty Plaster Gypsum Mixer Machine Ceramic Tile Adhesive Production Line High Speed Mixing Dry Mix Powder Mortar Mixing Plant Wall Putty Plaster Gypsum Mixer Machine Ceramic Tile Adhesive Production Line High Speed Mixing Dry Mix Powder Mortar Mixing Plant Wall Putty Plaster Gypsum Mixer Machine Ceramic Tile Adhesive Production Line
Frequently Asked Questions
Are you manufacturer or trading company?
We are factory, established in 2003.
How many workers are needed to operate the equipment?
Our 3-4 t/h semi-automatic dry mortar production line needs about 2-3 workers.
What is your payment method?
We usually accept T/T, LC, Western Union, Paypal, and other methods.
How long is the warranty?
12 months, within this period we provide technical services for free.
What kind of product can this production line make?
Our automatic dry mortar mixing plant can produce all kinds of dry mortar including inner and outer wall putty, plaster, skim coat, ceramic tile adhesive, tile grout, masonry mortar, and more.
If I need the complete dry mortar plant can you help us to build it?
Yes, we can help you set up a complete production line and provide related professional advice. We have built many dry mortar projects in China and overseas.
If you are interested in our dry mortar production line, please feel free to send us an inquiry or leave your contact number.
