380V 50HZ Automatic Weighing Twin Shaft Mixer Tile Adhesive Production Line for Dry Mortar
380V 50HZ Automatic Weighing Twin Shaft Mixer Tile Adhesive Production Line for Dry Mortar
Specifications
Advantage :
Turn key project provided
Product name :
Tile adhesive production line
Total power :
50-80KW
Warranty :
12 months
Voltage :
380V/50HZ or Customized
Man power :
3-4 Person
Machine occupy area :
80-100m2
After-sales services :
Engineer available to service machinery overseas
Application :
Tile adhesive mixing and packagiing
Condition :
New
Brand Name :
MG
Model Number :
MGDM-3.0
Certification :
CE,BV, ISO9001:2008
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T,L/C,D/A,D/P,,Western Union
Supply Ability :
30 sets per month
Delivery Time :
15-20 working days
Packaging Details :
Stand seaworthy packaging, Wooden packaging and bubble wrap packaging
Description
380V 50HZ Tile Adhesive Machine Mixing Packaging Dry Mortar Production Line
Product Overview

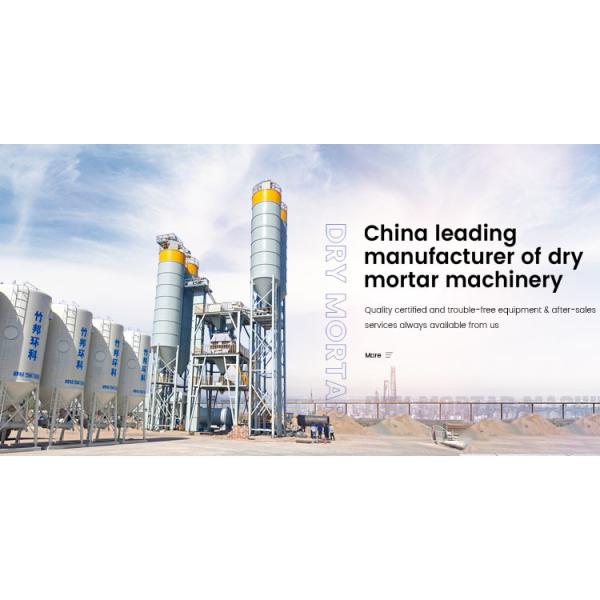

This production line incorporates advanced German technology with a tower-type silo design and modern management systems for automated control, significantly improving user-friendly operation and automation levels. The annual production capacity of this automatic dry mortar production line ranges from 3,000 to 10,000 tons.

Key Advantages
  • High degree of intelligence with control system automation for batching, weighing, feeding, mixing, and packaging
  • Tower layout structure reduces transmission distance and increases production efficiency
  • Twin shaft mixer ensures high mixing uniformity and prevents segregation of materials with varying physical properties
380V 50HZ Automatic Weighing Twin Shaft Mixer Tile Adhesive Production Line for Dry Mortar
Applications
  • Bonding Mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar
  • Decoration Mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar
  • Protection Mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildew-proof mortar, shielding mortar
380V 50HZ Automatic Weighing Twin Shaft Mixer Tile Adhesive Production Line for Dry Mortar
Product Specifications
380V 50HZ Automatic Weighing Twin Shaft Mixer Tile Adhesive Production Line for Dry Mortar
Model Capacity Machine Height Total Power Workers Required Workshop Required Bag Belt Conveyor
2000L Mixer 10-12T/H 8-10m 80-90KW 2-3 persons 500-600m² B500X5000mm
3000L Mixer 15-20T/H 10-14m 90-100KW 3-4 persons 600-800m² B500X5000mm
4000L Mixer 20-30T/H 10-14m 100-120KW 3-4 persons 600-800m² B500X5000mm
380V 50HZ Automatic Weighing Twin Shaft Mixer Tile Adhesive Production Line for Dry Mortar
System Components
1. Raw Material Detachable Storage Silo

Customized volumes: 150T, 100T, 60T. Features easy transportation, waterproof manufacturing, and rational design.

380V 50HZ Automatic Weighing Twin Shaft Mixer Tile Adhesive Production Line for Dry Mortar
2. Bucket Elevator

High efficiency, excellent sealing, easy assembly, environmental protection, and simple maintenance.

380V 50HZ Automatic Weighing Twin Shaft Mixer Tile Adhesive Production Line for Dry Mortar 380V 50HZ Automatic Weighing Twin Shaft Mixer Tile Adhesive Production Line for Dry Mortar
3. Automatic Weighing System

High-efficiency self-measurement, highly sensitive, high-accuracy digital display.

380V 50HZ Automatic Weighing Twin Shaft Mixer Tile Adhesive Production Line for Dry Mortar 380V 50HZ Automatic Weighing Twin Shaft Mixer Tile Adhesive Production Line for Dry Mortar
4. Twin Shaft Agravic Paddle Mixer

High efficiency, equipped with fly cut for fiber breaking, mixing time 3-5 minutes per batch.

5. Finished Product Hopper

Rational design, equipped with pneumatic vibrating system.

6. Automatic Packing Machine

High accuracy, high speed, equipped with bag auto pushing system.

7. Pulse Dust Collector

High efficiency, strength dust collecting, pulse controller control.

8. Screw Type Air Compressor

High quality, long life time, energy saving.

9. Control Cabinet

Famous brand PLC, intelligent and computer control.

Certifications
380V 50HZ Automatic Weighing Twin Shaft Mixer Tile Adhesive Production Line for Dry Mortar
About Our Company

Zhengzhou MG Industrial Co., Ltd. is a leader in pre-mixed dry mortar mixing plants, providing innovative building solutions to over 70 countries worldwide. Founded in 2000 and located in Zhengzhou, we are an integrated high-tech enterprise specializing in R&D, production, sales, and construction of dry mortar mixing equipment. As an executive member of the Chinese Private Technology Promotion Committee and Building Materials Experts Association, we are certified by ISO9001 quality management system and honored to be the executive director of Henan Building Energy Conservation Committee.

Our Services
Pre-Sale Services
  • 24-hour response to inquiries
  • High quality and quantity assurance
  • Favorable manufacturer-direct pricing
  • Professional technical and project solutions
  • Fluent English and Russian support
  • OEM & ODM services available
  • Assistance with first construction scheme and foundation drawings
After-Sale Services
380V 50HZ Automatic Weighing Twin Shaft Mixer Tile Adhesive Production Line for Dry Mortar
  • Overseas installation and technical exchange
  • Operator training programs
  • Favorable pricing for spare parts and accessories
  • Original, authentic, high-quality spare parts
  • Immediate parts availability and shipping
  • Comprehensive follow-up after-sale service
