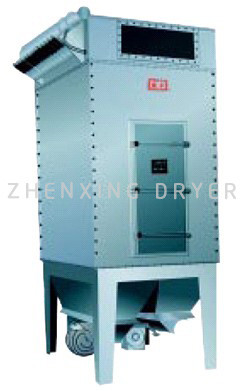

Fast Drying Speed Stainless Steel Pulse Dust Filter Chemical Dryers Equipment With Cloth Bag
Fast Drying Speed Stainless Steel Pulse Dust Filter Chemical Dryers Equipment With Cloth Bag
Specifications
Place of Origin :
CHANGZHOU,CHINA
Brand Name :
ZHENGAN
Certification :
ISO
MOQ :
1 set
Price :
As per request model
Packaging Details :
Wooden case or loose cargo in container
Delivery Time :
7-30 days as per order quantity
Payment Terms :
T/T,L/C
Supply Ability :
1-1000 set
Model Number :
MC Series
Description

Fast Drying Speed Stainless Steel Pulse Dust Filter Chemical Dryers Equipment With Cloth Bag

Descrition:

■ The air stream containing dust passes through low box from air inlet parts of it deposit when

light particle dust is floated, it is retarded in the bag. The purified air penetrates the filtrating bag and

passes into the up box through Venturi tube and exhausts from outlet.

■ The accumulated powder dust on the outer wall of filtering bag is increased continuously. If the

resistance reaches the limit range (in generally,it should be 80-120mmH2O), it is necessary to clean

the accumulated powder dust.The clean method is as follows: controller touches off each control

valve in order. It makes the compressed air inside the gas bag sprays out through nozzles(the 1st wind).

Using Venturitube,several times of air around it(the 2nd wind) enters into the bag and makes the

filtering bag expand rapidly at momentary and accompany and with the counter action of air stream.

This makes the dust drop into dust gate and discharge outside the machine.

Applications:

The equipment is widely used for ventilaion and recoverable dust such as: metallurgy industry,

costing industry, mine, chemical industry, pharmaceutica lindustry, construetion, material industry

and grain processing industry and so on.

Spec of Installation

Skech of Strucrure

Schmatic of Installation

SCHMATIC OF INSTALLATION

MF48

MF60

MF72

MF84

MF96

MF108

MF120

A

3530

3530

3530

3530

3530

3530

3530

B

3287

3287

3287

3287

3287

3287

3287

C

2550

2552

2552

2552

2552

2552

2552

D

1160

1160

1160

1160

1160

1160

1160

E

1350

1650

1950

2250

2550

2850

3150

F

1350

1350

1350

1350

1350

1350

1350

G

635

635

635

635

635

635

635

H

325

475

625

775

925

1075

1225

J

1586

1586

1586

1586

1586

1586

1586

K

790

790

790

790

850

850

850

L

824

824

824

824

880

880

880

MxN

400x500

500x500

600x500

700x600

700x600

800x600

800x600

PxQ

432x530

530x530

600x530

728x630

728x630

832x630

832x630

RxS

1050x1050

1350x1050

1650x1050

1950x1050

2250x1050

2550x1050

2850x1050

Specifications:

Ttechnical

property

Model

MC24

MC36

MC48

MC60

MC72

MC84

MC96

MC120

Filtering

area

(m2)

18

27

36

45

54

63

72

90

Quantity

of

filtering

bag (piece)

24

36

48

60

72

84

96

120

Aair

speed

of

filtering

(m/min)

2-4

2-4

2-4

2-4

2-4

2-4

2-4

2-4

Aair

amount

of

treatment

(m3/min)

2160-4300

3250-6480

4320-8630

5400-10800

6450-12900

7550-15100

8650-17300

10800-20800

Max.

overall

dimension

L,M,H

1025

1425

1820

2225

2625

3025

3585

4385

W:1678 H:3660

Ddust

removing

device

quantity of

pulse

valve,

piece

4

6

8

10

12

14

16

20

consume

compressed

air,

m3/min

0.07-0.15

0.11-0.22

0.15-0.30

0.18-0.37

0.22-0.44

0.25-0.50

0.29-0.56

0.37-0.73

Pressure

of

copressed

air, kg/(cm2)

5-7 should not

be less than 4
