Energy Saving High - Speed Air Stream Dryer For Drying Maize, Potato, Cassava With 1.8 - 2.0 Steam Consume
Energy Saving High - Speed Air Stream Dryer For Drying Maize, Potato, Cassava With 1.8 - 2.0 Steam Consume
Energy Saving High - Speed Air Stream Dryer For Drying Maize, Potato, Cassava With 1.8 - 2.0 Steam Consume
Energy Saving High - Speed Air Stream Dryer For Drying Maize, Potato, Cassava With 1.8 - 2.0 Steam Consume
Specifications
Place of Origin :
CHANGZHOU,CHINA
Brand Name :
ZHENGAN
Certification :
ISO
MOQ :
1 set
Price :
As per request model
Packaging Details :
Wooden case or loose cargo in container
Delivery Time :
7-30 days as per order quantity
Payment Terms :
T/T,L/C
Supply Ability :
1-1000 set
Description

Energy Saving High - Speed Air Stream Dryer For Drying Maize, Potato, Cassava With 1.8 - 2.0 Steam Consume

Description:

DG Series Air Stream Dryer is drying plant for to dry maize,potato alike and other starch material

processed by wet method after dewatering process.It's also for to dry heat sensitive powder or

slice state material with fast speed.

Application:

Drying maize,potato,cassava and other starch

Advantage:

In the dryer, high-speed hot air stream sustain raw material in the suspending state, then the material

is dried. Since air stream speed is very high, and material is suspending in air stream, the heat transfer

surface between air and solid is large, heat transfer rate is high, and drying time is short (usually within

several seconds). It's specialized suitable for to drying heat sensitive materials.

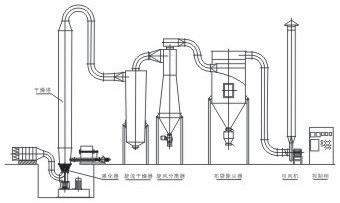

In drying process, clean cool air is heated by air heater, and mixed with wet starch sent by spiral feeder

and material raiser. Wet starch is dried momentarily. Dry starch is dischanged though centrifugal separator

and star shape unloader. Exhaust air is let out into atmosphere.

Specifications:

capacity of starch t/h

total power KW

steam consume Kg/Kg

finished starch moisture

DG-0.5

0.5

1.8-2.0

12-14％

DG-0.8

0.8

21.6

1.8-2.0

12-14％

DG-1

1

24.6

1.8-2.0

12-14％

DG-1.2

1.2

26.6

1.8-2.0

12-14％

DG-1.6

1.6

30.1

1.8-2.0

12-14％

DG-2

2

47.6

1.8-2.0

12-14％

DG-2.6

2.6

59.5

1.8-2.0

12-14％

DG-3.2

3.2

75

1.8-2.0

12-14％

DG-3.6

3.6

95

1.8-2.0

12-14％

DG-5

5

123.4

1.8-2.0

12-14％

DG-6

6

170

1.8-2.0

12-14％

DG-10

10

223.5

1.8-2.0

12-14％

DG-20

20

440

1.8-2.0

12-14％
