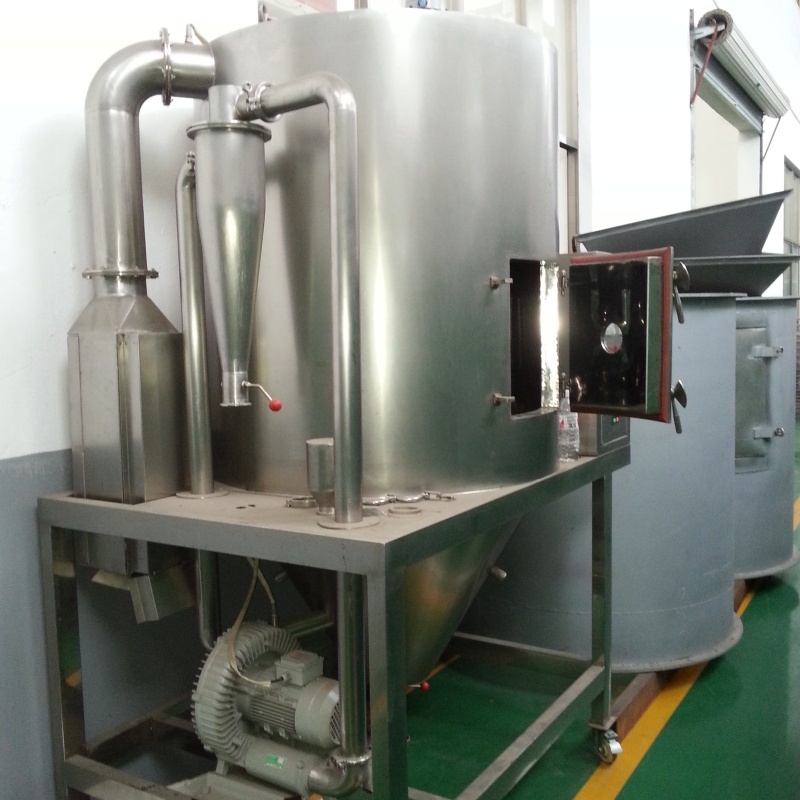

Customized GMP Centrifugal Spray Dryer Used In Food Industry
Customized GMP Centrifugal Spray Dryer Used In Food Industry
Customized GMP Centrifugal Spray Dryer Used In Food Industry
Customized GMP Centrifugal Spray Dryer Used In Food Industry
Customized GMP Centrifugal Spray Dryer Used In Food Industry
Customized GMP Centrifugal Spray Dryer Used In Food Industry
Specifications
MOQ :
1 set
Delivery Time :
60-120 days
Water loss :
1550kg/h
Price :
$50,000-$500,000
Heat source :
Hot blast stove
Packaging Details :
Wooden crate/Wooden pallet
Model Number :
LPG-1500
Material :
SUS304
Payment Terms :
T/T
Control :
PLC
Supply Ability :
100 set/year
Certification :
ISO9001
Initial moisture :
60%
Place of Origin :
CHINA
Final moisture :
3%
Brand Name :
YIXIN
Name :
Centrifugal Spray Dryer
Description

The spray drying granulator is an integrated dry granulation system widely used in food, and chemical industries, capable of directly converting liquid feed into dried granules in a single step. The equipment consists of a hot air system, atomizer, drying tower, dust collection and recovery unit, and control system. The liquid material is atomized into fine droplets under high pressure or centrifugal force, which then come into full contact with clean, high-temperature hot air, enabling instant evaporation of moisture and producing either dry powder or hollow granules.

The system operates under closed negative pressure with multi-stage air filtration, meeting GMP cleanliness standards. All components in contact with the material are made of stainless steel, ensuring easy disassembly and cleaning. Parameters such as hot air temperature, feed rate, and atomization pressure can be precisely controlled, resulting in extremely short drying times—ideal for heat-sensitive materials that are prone to thermal degradation.

The final granules are porous, highly soluble, and uniformly sized, eliminating the need for secondary drying and simplifying the process flow. Compared to fluid bed granulation, this method avoids wet binding and is particularly suitable for processing liquid raw materials such as solutions, suspensions, and extracts. Equipped with an efficient dust collection system, it achieves high powder recovery rates and features high automation and strong continuous production capacity. It is a core device for granulation and drying of materials including oral liquid extracts, milk powder, flavorings, and traditional Chinese medicine extracts.

Customized GMP Centrifugal Spray Dryer Used In Food Industry

Customized GMP Centrifugal Spray Dryer Used In Food Industry

Send your message to this supplier
Send Now

Customized GMP Centrifugal Spray Dryer Used In Food Industry

Ask Latest Price
Watch Video
Product Detail
MOQ :
1 set
Delivery Time :
60-120 days
Water loss :
1550kg/h
Price :
$50,000-$500,000
Heat source :
Hot blast stove
Packaging Details :
Wooden crate/Wooden pallet
Contact Supplier
video
Customized GMP Centrifugal Spray Dryer Used In Food Industry
Customized GMP Centrifugal Spray Dryer Used In Food Industry
Customized GMP Centrifugal Spray Dryer Used In Food Industry

Changzhou Yixin Drying Equipment Co., Ltd.

Verified Supplier
1 Years
changzhou
Since 2004
Business Type :
Manufacturer
Main Products :
Hollow Paddle Dryer, Vacuum Screw Dryer, Universal Pulverizer
Total Annual :
$10,000,000-$15,000,000
Employee Number :
80~100
Certification Level :
Verified Supplier
