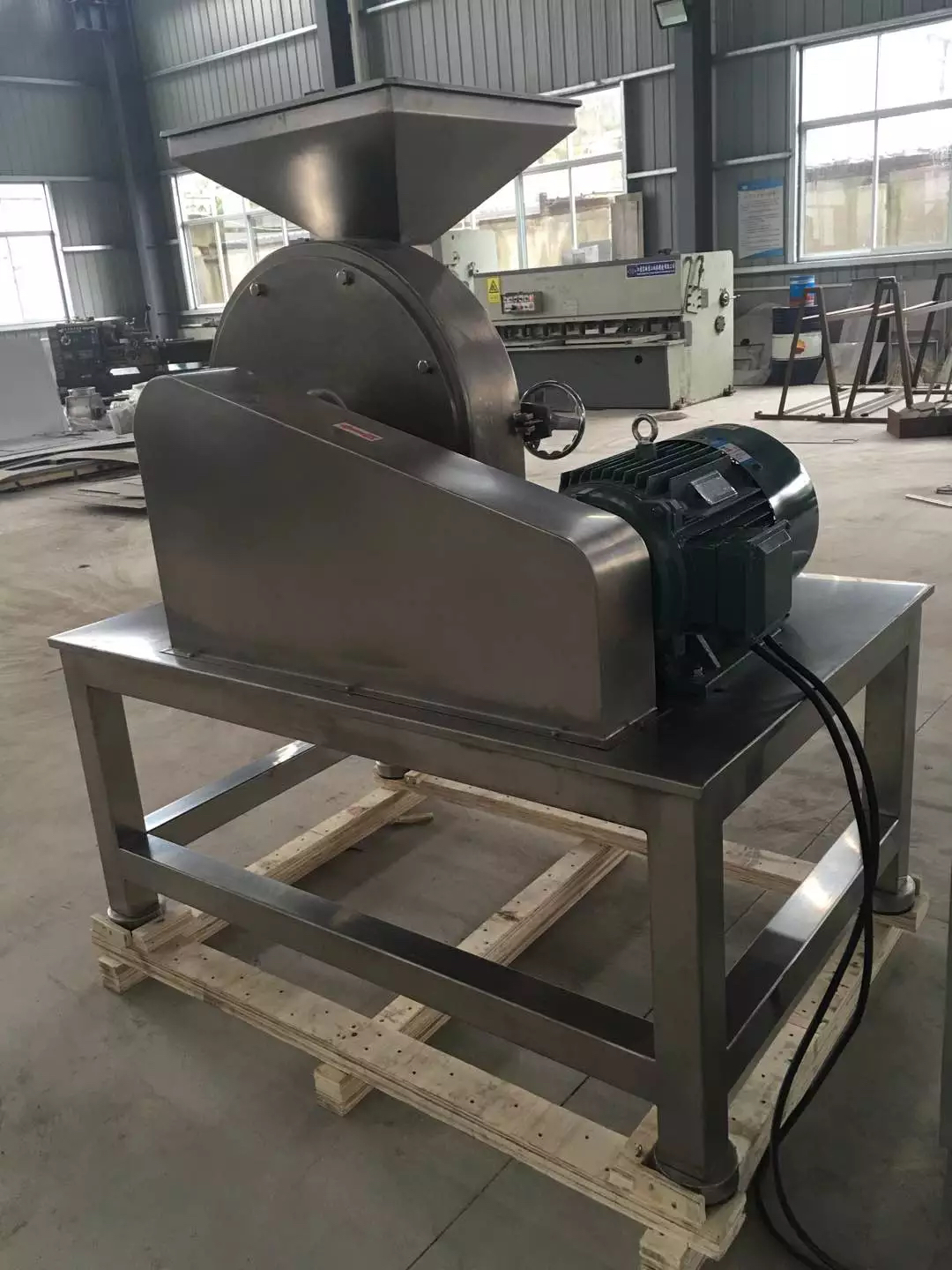

SAP Customized SUS High Speed Universal Grinder

The universal grinder, also known as a multi-purpose grinder or high-efficiency grinder, is a versatile grinding machine with a wide range of applications. It is widely used in industries such as food processing, chemical manufacturing, pesticides, and traditional Chinese medicine, suitable for coarse, medium, or fine crushing of dry soft and hard materials.

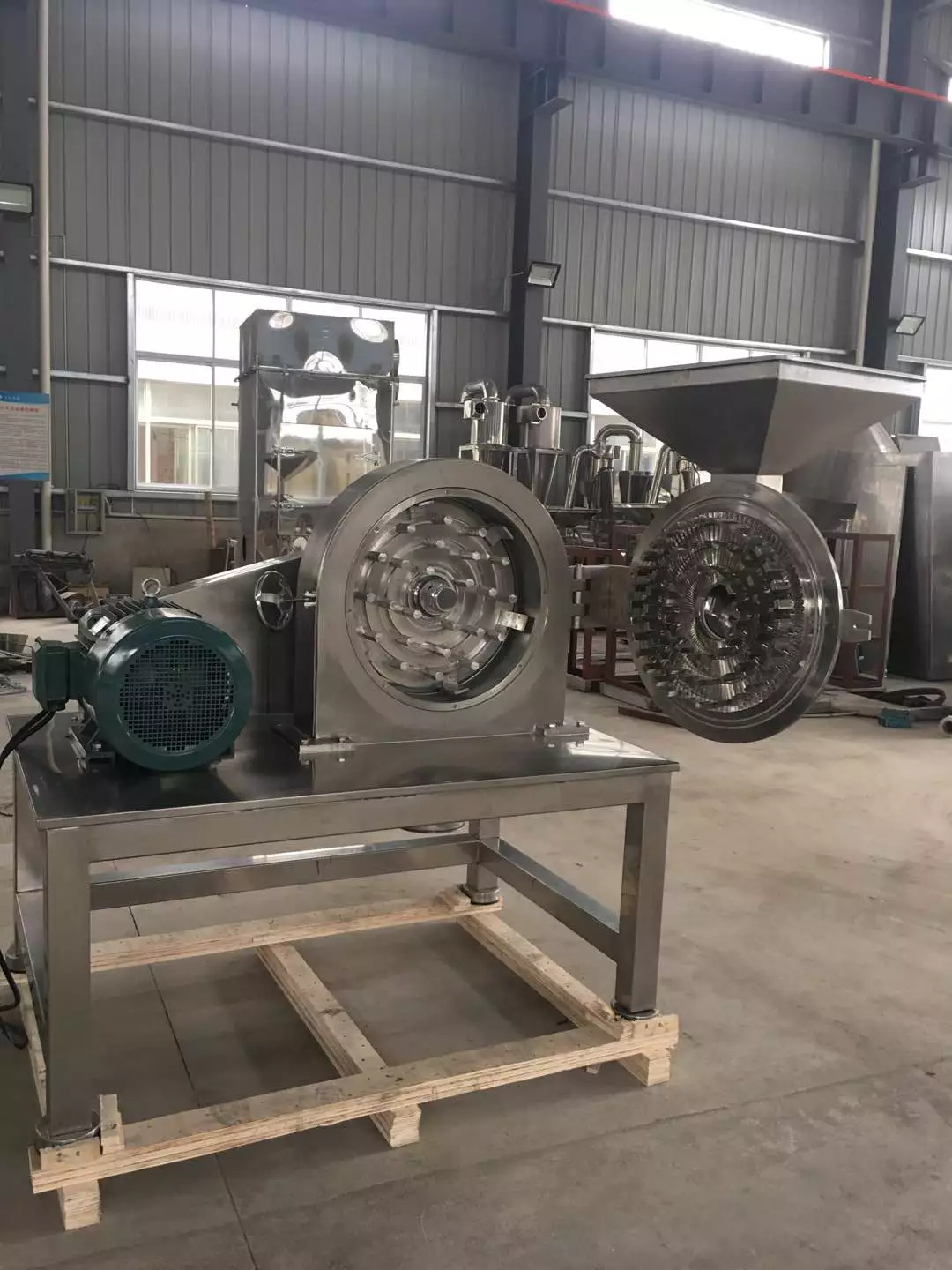

Its working principle is based on high-speed impact and shearing action. The equipment mainly consists of a housing, fixed tooth plate, moving tooth plate (or hammer/blades), screen mesh, and main shaft. During operation, the motor drives the main shaft to rotate the moving tooth plate at high speed. Material fed through the hopper is subjected to intense impact, shearing, and friction between the rapidly rotating moving teeth and the fixed tooth plate, resulting in rapid crushing into fine particles. The ground material is discharged through the bottom screen under the combined effect of centrifugal force and airflow. Particle fineness can be adjusted by replacing screens with different aperture sizes (typically ranging from 20 to 150 mesh).

The core advantages of this device include:

Wide applicability: Suitable for grinding various dry, brittle materials such as Chinese medicinal herbs, chemical raw materials, food seasonings, and minerals, but less effective for high-oil, high-sugar, or highly fibrous materials.

Compact structure: simple design, easy to operate, small footprint, and convenient for disassembly, assembly, and cleaning.

Adjustable fineness: Simply replace the screen mesh to change the particle size of the final product, meeting various process requirements.

High safety: Common models are equipped with air-cooling or water-cooling systems to reduce grinding temperature rise, preventing degradation of heat-sensitive materials.
