Customized Made Vacuum Screw Dryer For Chemical

I, Basic structure

The vacuum equipment uses a dust collector, condenser, buffer tank, vacuum pump, solvent and 100% water vapor recovery. The micro-negative pressure structure uses dust collectors and induced draft fans for dehumidification.

II, Working Principle

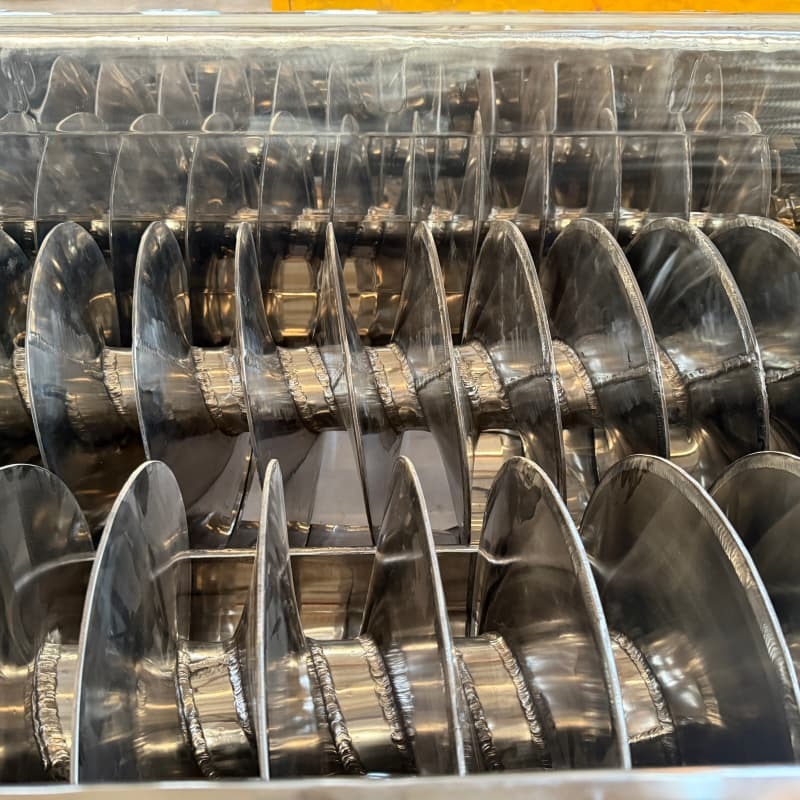

The vacuum spiral dryer, through the internal hollow blade structure, enables the material to circulate fully within the box, fully increasing the contact heat energy of the material, the dried material is more uniform and has no dead corner residue. The heat energy is transferred by the hollow blades and the heat energy on the box wall. The material is wrapped and flows with almost no heat energy loss. The entire equipment operates in a sealed manner to prevent dust, odor, There is no leakage. The later condensation recovery device is used to recover reusable resources and pollutants, thus achieving no pollution discharge. Different heating media can be used according to the temperature requirements of the material: steam, hot water, heat transfer oil. Depending on the material, the feeding method can be one-time or multiple times. After the drying is completed, the vacuum is discharged and the discharge is opened through the discharge valve.

III, Features

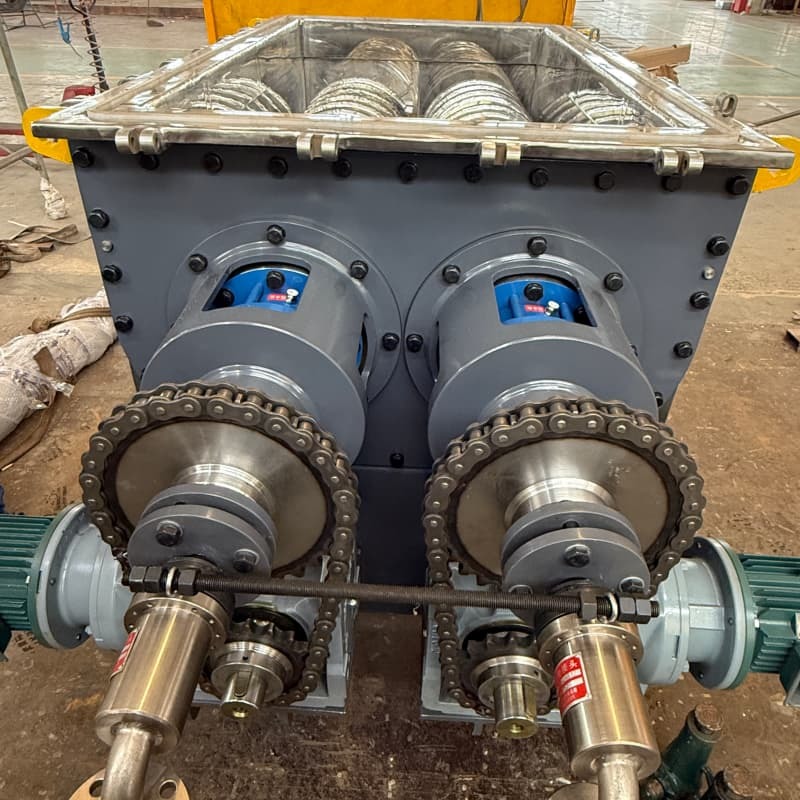

1. Sealing performance: It adopts the low-speed mechanical combination sealing method independently developed and produced by our company, which offers better sealing effect and longer service life.

2. Six-in-one: drying, cooling, desolvation, reaction, crystallization, mixing.

3. Energy saving: The heating area of the equipment increases, and the heat energy is fully absorbed by the material, reducing heat energy loss.

4. Environmentally friendly: The equipment operates under vacuum, and through the condensation recovery device, resources can be recovered and reused without pollution emissions.

5. High efficiency: Due to the increased heating area of the equipment, it is much more efficient than conventional drying equipment, thus saving energy consumption.
