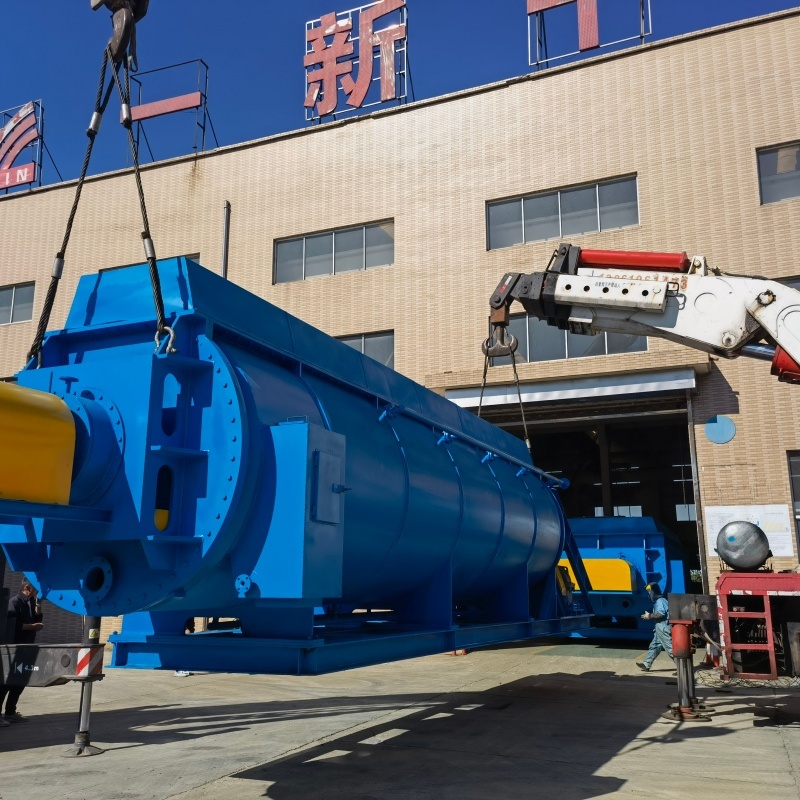

120m2 Fluoride Containing Sludge Dryer Machine 40T/D Disc sludge dryer For Industry
120m2 Fluoride Containing Sludge Dryer Machine 40T/D Disc sludge dryer For Industry
120m2 Fluoride Containing Sludge Dryer Machine 40T/D Disc sludge dryer For Industry
120m2 Fluoride Containing Sludge Dryer Machine 40T/D Disc sludge dryer For Industry
Specifications
MOQ :
1 Set
Delivery Time :
60-120 days
Drive method :
Gear Drive
Price :
$50,000-$500,000
Material :
SUS 316L
Packaging Details :
Wooden crate/Wooden pallet
Model Number :
DYGJ-120
Heat source :
600,000 kcal thermal oil heater
Payment Terms :
T/T
Name :
Disc Dryer
Supply Ability :
100 Set/year
Brand Name :
YIXIN
Capacity :
40T/D
Certification :
ISO9001
Drying Temperature :
200～220℃
Place of Origin :
CHINA
Out Air Temperature :
80℃～85℃
Description

120㎡ Fluoride-Containing Sludge Disc Dryer For Industry

I. Basic Structure
The sludge drying system consists of a feeding unit, a disc dryer (including steam heat source), a gas-solid separation unit (cyclone separator), a condensation unit, an exhaust fan unit, and a discharge unit. The disc dryer mainly comprises a stator (housing), a rotor (discs), and a drive mechanism. The central shaft of the rotor serves as the load-bearing component for the drying discs; it is a hollow shaft to which all discs are welded.

II. Working Principle
In the disc dryer, sludge is uniformly and slowly conveyed through the entire dryer by the action of scrapers/stirrers located at the edges of the discs, and is dried through thermal contact with the discs. During the drying process, hot steam condenses on the inner walls of the disc chambers, forming condensate water. This condensate is channeled through a pipe into a central tube and finally discharged from the dryer via an outlet chute. Scrapers are installed between every two discs and are fixed to the housing (stator). These scrapers loosen the sludge between the discs, enabling waste steam to escape quickly.

III. Features
1. Compact equipment structure with small footprint.
2. Wide adaptability to material moisture content and high uniformity in product drying.
