8×1.2 Low Investment Vibrating Fluidized Bed Dryer In Food Industry

I. Basic Structure

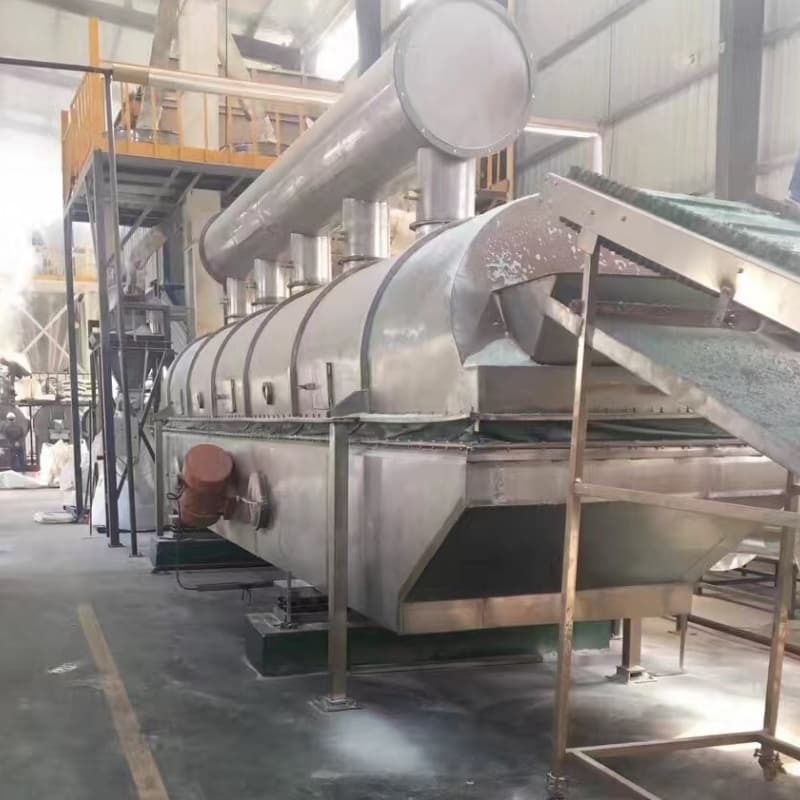

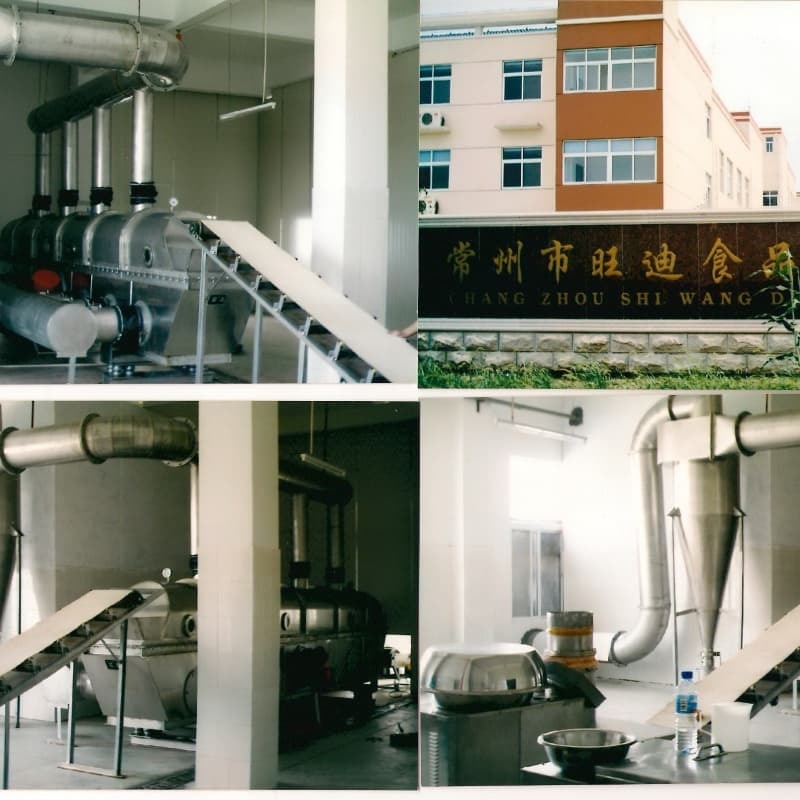

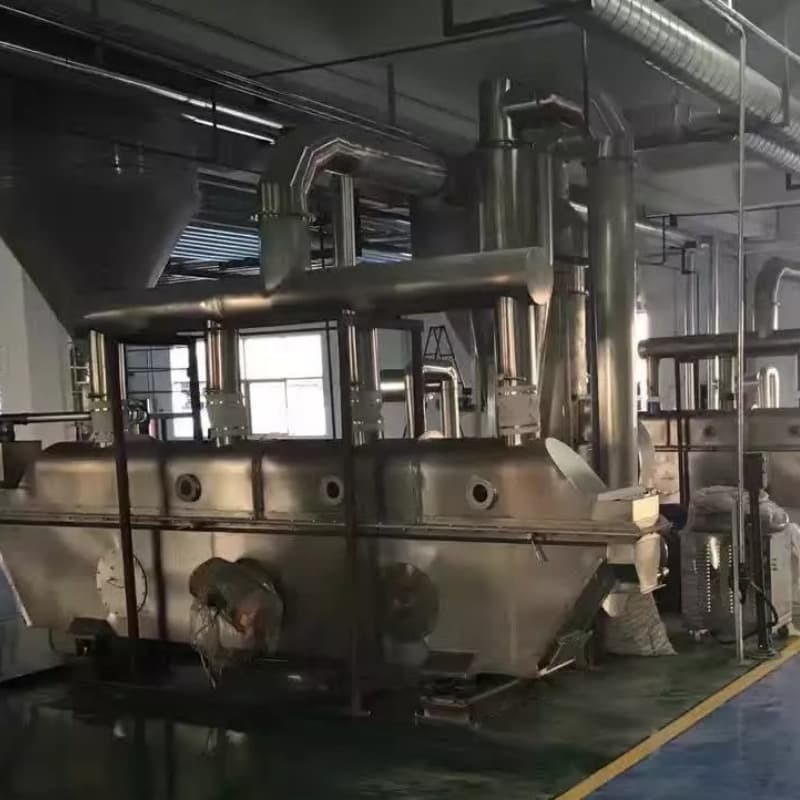

The ZLG vibrating fluidized bed dryer consists of a feed hopper, blower, heat exchanger, main vibrating fluidized bed unit, induced draft fan, and cyclone dust collector, forming a complete drying and dust removal system.

II. Working Principle

The equipment synchronizes vibration conveying with hot air drying, ensuring smooth material movement, minimizing breakage, and achieving uniform moisture content in the final product. The entire system features a sealed negative-pressure design, equipped with multi-stage air filtration, and all parts in contact with materials are made of stainless steel, enabling easy disassembly and cleaning while complying with GMP standards. Temperature can be controlled in segments, integrating drying in the front section and cooling in the rear section into one process, simplifying the production line layout.

III. Features

1. The vibration source is driven by a vibrating motor, ensuring smooth operation, easy maintenance, low noise, long service life, and convenient repair.
2. High thermal efficiency saves over 30% energy compared to conventional drying equipment. The bed temperature distribution is uniform, with no localized overheating; fluidization is even, and there are no dead zones.
3. Excellent adjustability and wide adaptability: the thickness of the material layer, movement speed within the machine, and full amplitude can all be continuously and precisely adjusted.
4. Minimal damage to material surfaces, suitable for drying fragile materials; performance remains unaffected even when particles are irregularly shaped.
5. Fully enclosed structure effectively prevents cross-contamination between material and air, ensuring a clean working environment.
