200kg/batch SUS304 Vertical Fluidized Bed Dryer In Food Industry / Feed
200kg/batch SUS304 Vertical Fluidized Bed Dryer In Food Industry / Feed
200kg/batch SUS304 Vertical Fluidized Bed Dryer In Food Industry / Feed
200kg/batch SUS304 Vertical Fluidized Bed Dryer In Food Industry / Feed
Specifications
Price :
$15,000-$40,000
Packaging Details :
Wooden crate/Wooden pallet
Height :
3100mm
Payment Terms :
T/T
Stirring Speed :
11r/min
Model Number :
GFG-200
Material :
SUS316L
Supply Ability :
100 Set/year
Capacity :
200kg/batch
Delivery Time :
30 days
Brand Name :
YIXIN
Certification :
ISO9001
Name :
Vertical Fluidized Bed Dryer
Place of Origin :
CHINA
Power :
30kw
MOQ :
1 Set
Time of opeartion :
15-60min
Description

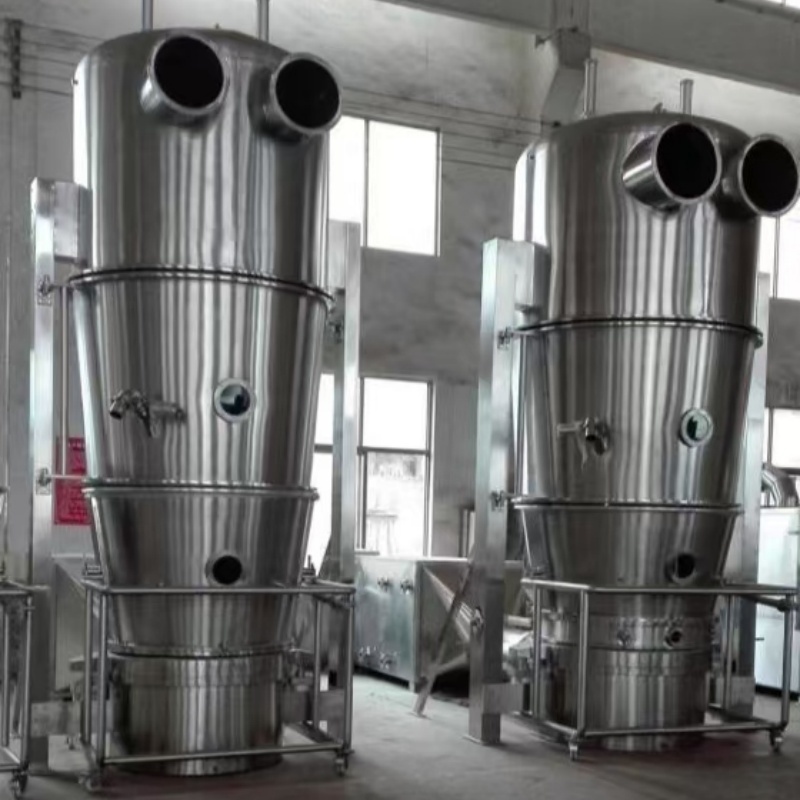

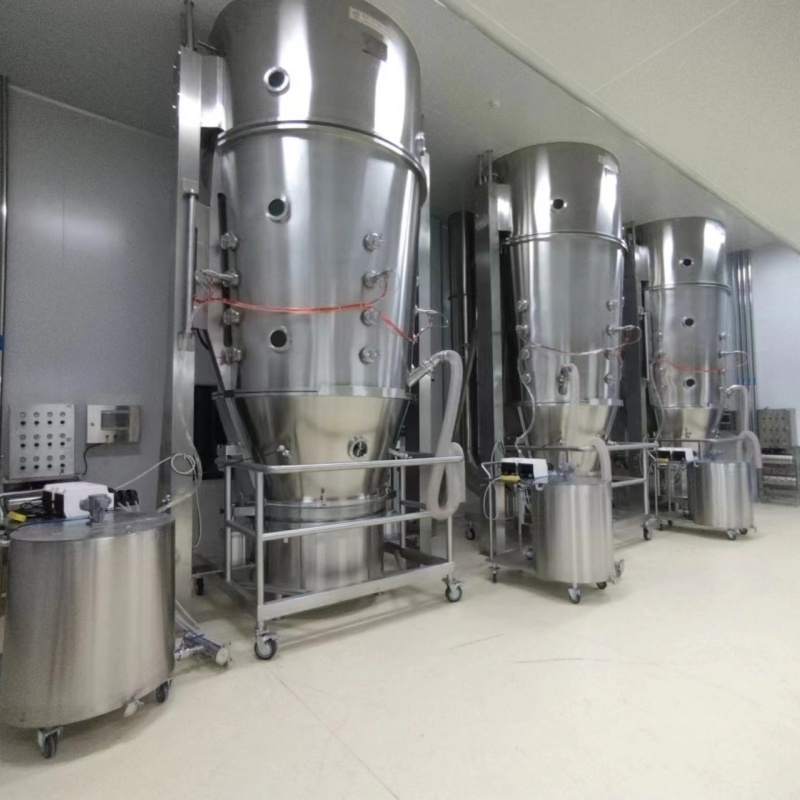

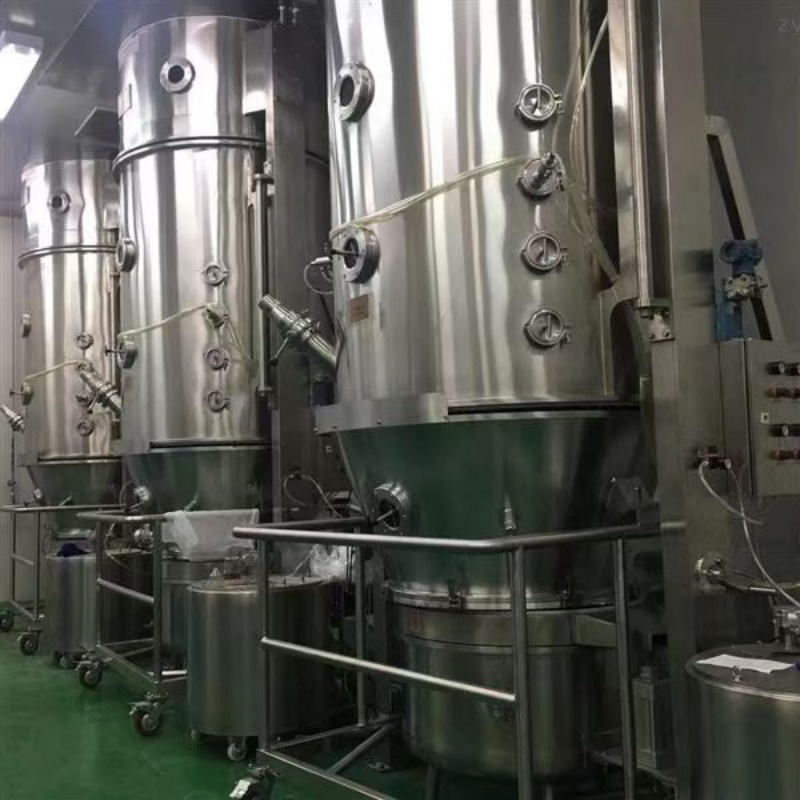

200kg SUS304 High-Efficiency Vertical Fluidized Bed Dryer For Feed

I．Basic structure

The overall structure is divided into four major modules: the bottom air intake section, the middle fluidized drying section, the top air exhaust and dust removal section, the frame and the electrical control. The entire machine operates under negative pressure in a closed manner.

II．Working principle

The air, after being heated and purified, is drawn in from the bottom by the induced draft fan through the orifice plate of the hopper. In the working chamber, fluidization is formed by stirring and negative pressure, and the moisture evaporates rapidly and is carried away with the exhaust, drying the material quickly.

III．Features

1. The fluidized bed has a circular basic structure to avoid dead corners.

2. The hoppers are set with stirring to prevent the agglomeration of wet materials and the formation of channeling during drying.

3. The drying speed is fast, the temperature is uniform, and the drying time for each batch is generally 20-30 minutes.

4. Closed negative pressure operation, gas filtered, easy to operate, easy to clean, ideal equipment for meeting GMP requirements.

200kg/batch SUS304 Vertical Fluidized Bed Dryer In Food Industry / Feed

200kg/batch SUS304 Vertical Fluidized Bed Dryer In Food Industry / Feed
