GHL High-Speed ​​Mixer Granulator
GHL High-Speed ​​Mixer Granulator
GHL High-Speed ​​Mixer Granulator
GHL High-Speed ​​Mixer Granulator
Specifications
Model Number :
GHL
MOQ :
10 sets
Material :
Stainless steel or carbon steel
Payment Terms :
T/T, L/C
Packaging Details :
According to customer requirements
price :
$10,000 to $60,000 or more
Certification :
ISO9001
Place of Origin :
china
Price :
Negotiable
Brand Name :
suli
Function :
High-speed crushing
Description

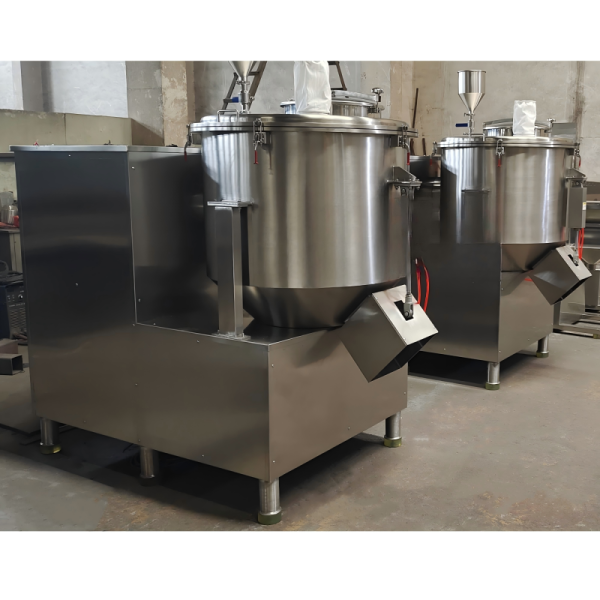

GHL High-Speed Mixer Granulator
Working Principle
Powdered materials and binders are thoroughly mixed into a moist, soft material by a bottom-mounted mixing slurry in a cylindrical container. This material is then cut into uniform wet granules by a high-speed, side-mounted pulverizing paddle.
Performance Characteristics
  • Horizontal cylindrical structure with rational design
  • Air-sealed drive shaft, switchable to water for cleaning
  • Fluidized bed granulation produces nearly spherical granules with excellent flowability
  • Reduces binder usage by 25% compared to traditional processes, shortening drying time
  • Each batch requires only 2 minutes of dry mixing and 1-4 minutes of granulation
  • Increases efficiency by 4-5 times compared to traditional processes
  • Complete process—dry mixing, wet mixing, and granulation—within the same sealed container
  • Comprehensive safety protection measures throughout operation
  • Jacketed type available according to user requirements
Technical Specifications - Dimensions
Model A B C×D E F
503209501250×8009701650
15042010001350×80010501750
20050011001650×94014502050
25050011601650×94014002260
30055012001700×100014002310
40067013001860×110015502410
60075015002000×123017502610
Technical Specifications - Performance Data
Name 50 150 200 250 300 400 600
Volume (L)50150200250300400600
Output (kg/batch)155080100130200280
Mixing Speed (r.p.m)200/400180/270180/270180/270140/220106/15580/120
Mixed Power (kw)4/5.56.5/89/119/1113/1618.5/2222/30
Cutting Speed (r.p.m)1500/30001500/30001500/30001500/30001500/30001500/30001500/3000
Cutting Power (kw)1.3/1.82.4/34.5/5.54.5/5.54.5/5.56.5/89/11
Compressed Air Consumption (m³/min)0.60.90.90.91.11.51.8
Weight (kg)50080010001300180022002600
