Belt Dryers Are Suitable For Non-Standard Customization Of Materials That Cannot Be Dried At High Temperatures.
Belt Dryers Are Suitable For Non-Standard Customization Of Materials That Cannot Be Dried At High Temperatures.
Belt Dryers Are Suitable For Non-Standard Customization Of Materials That Cannot Be Dried At High Temperatures.
Belt Dryers Are Suitable For Non-Standard Customization Of Materials That Cannot Be Dried At High Temperatures.
Belt Dryers Are Suitable For Non-Standard Customization Of Materials That Cannot Be Dried At High Temperatures.
Belt Dryers Are Suitable For Non-Standard Customization Of Materials That Cannot Be Dried At High Temperatures.
Specifications
Brand Name :
suli
Model Number :
DW/DWC
Certification :
ISO9001
Place of Origin :
china
MOQ :
2 sets
Price :
Negotiable
Payment Terms :
T/T, L/C
Packaging Details :
According to customer requirements
Material :
Stainless steel, carbon steel
control system :
PLC programming or buttons
price :
Quotation based on requirements
Manufacturing standards :
Non-standard customization is available
Description

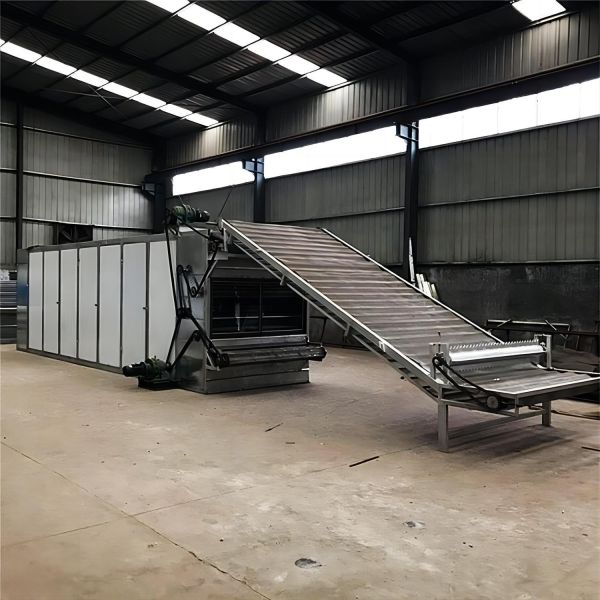

Belt Dryers for Heat-Sensitive Materials
Belt dryers provide continuous drying solutions for batch production, specifically engineered for materials that cannot withstand high-temperature processing. These systems excel at drying sheet-like, strip-like, and granular materials with good air permeability.
Belt Dryers Are Suitable For Non-Standard Customization Of Materials That Cannot Be Dried At High Temperatures.
Key Product Features
Specifically designed for heat-sensitive materials with high moisture content including dehydrated vegetables, traditional Chinese medicine slices, and catalysts. The system delivers exceptional drying performance with rapid drying rates, high evaporation intensity, and superior product quality retention.
  • Fast drying speed with high evaporation intensity
  • Excellent product quality preservation
  • Suitable for materials requiring non-standard customization
  • Ideal for heat-sensitive applications where high temperatures are prohibited
  • Wide industrial applications for small pieces and fibrous materials
Operating Principle
Material is evenly distributed onto stainless steel mesh belts (12-60 mesh) via feeder systems. The dryer comprises multiple independent units, each with dedicated hot air circulation and humidity control systems.
Hot air passes through the material layer from either top-to-bottom or bottom-to-top configurations, facilitating efficient heat and mass transfer. The belt speed is adjustable based on material characteristics, ensuring optimal drying conditions throughout the process.
Belt Dryers Are Suitable For Non-Standard Customization Of Materials That Cannot Be Dried At High Temperatures.
Multi-stage drying configurations typically include initial, intermediate, and final drying sections. The initial section handles high-moisture content with higher temperatures (up to 120°C), while final sections utilize lower temperatures (around 80°C) for temperature-sensitive materials.
Application Scope
Belt dryers are specifically engineered for materials with good air permeability including sheet-like, strip-like, and granular forms. The system is particularly effective for high-moisture materials where temperature limitations apply.
For paste-like materials such as dehydrated filter cakes, preliminary processing including granulation or rod-shaped preparation is required before drying operations.
Belt Dryers Are Suitable For Non-Standard Customization Of Materials That Cannot Be Dried At High Temperatures.
Technical Advantages
  • Continuous drying operation for batch production
  • Flexible unit configuration based on specific requirements
  • Independent hot air circulation per unit section
  • Precise humidity control with dedicated dehumidifying systems
  • Adjustable belt speed for optimal material residence time
  • Multi-stage drying capability for uniform product quality
