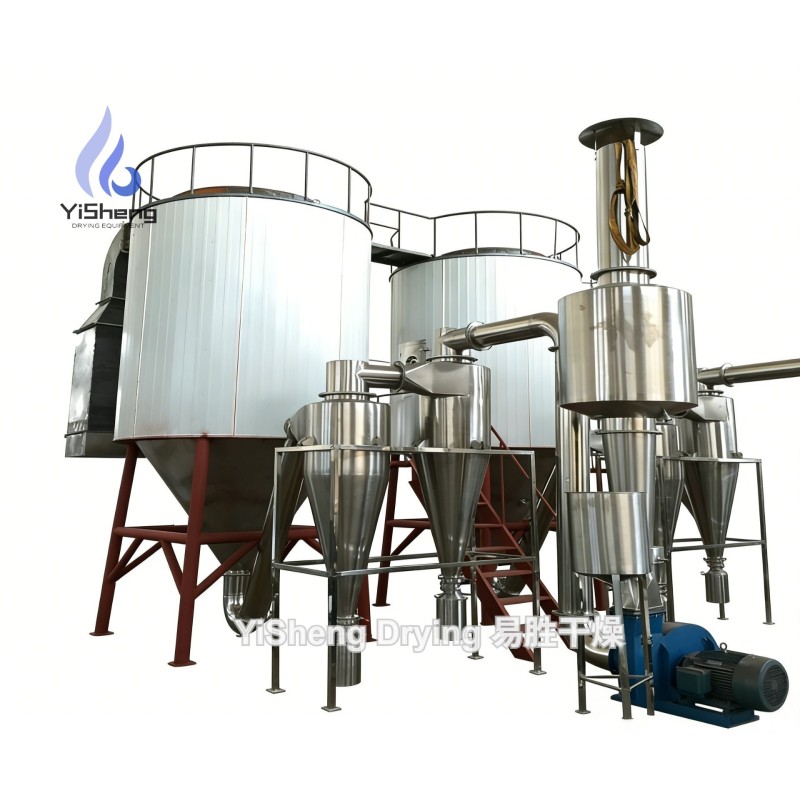

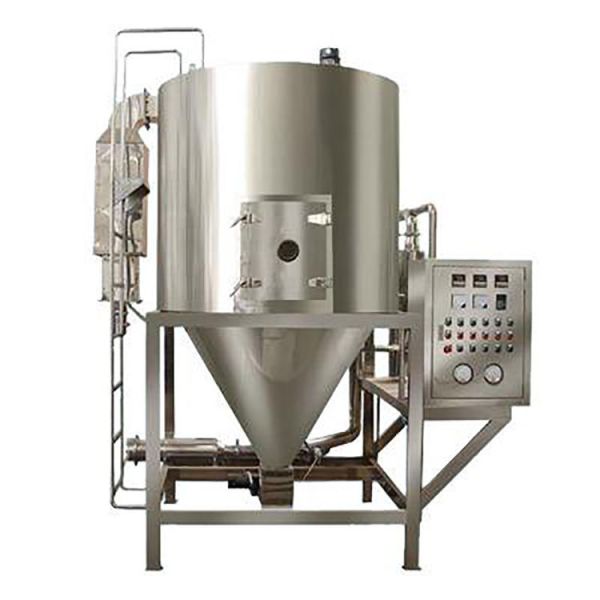

The Centrifugal Spray Dryer EcoGuard Series is built for manufacturers who must demonstrate low emissions, energy efficiency and dust explosion safety to environmental regulators, combining high-speed centrifugal atomization with a fully instrumented, compliance-oriented exhaust system.

Working PrincipleFiltered and heated air enters the drying chamber uniformly through a top air distributor, while liquid feed is pumped to a high-speed centrifugal atomizer (10,000 to 30,000 rpm) and atomized into fine droplets under centrifugal force. The droplets contact hot air in co-current flow and complete moisture evaporation within seconds, drying into finished powder collected at the tower bottom and by a cyclone separator, with exhaust routed through the emission control train.

Environmental, Safety & Energy-Efficiency Enhancements

• Exhaust heat recovery: optional air-to-air or air-to-water heat exchanger recovers energy from the exhaust stream to preheat incoming drying air, reducing overall fuel or electricity consumption;
• Emission control: cyclone + bag filter or wet scrubber combination reduces particulate and odor emission to meet EU/North American/Japanese air quality permits;
• ATEX/explosion-proof configuration: available for combustible powder products with ATEX Zone 20/21/22-rated components, explosion venting and inerting;
• Energy monitoring: standard metering of heater and fan power with data export for ISO 50001 reporting;
• CIP (Clean-in-Place) system reduces water and chemical consumption per cleaning cycle while meeting food/pharmaceutical hygiene standards;
• Full CE/UL documentation package and third-party emission test report available for regulatory submission.

Technical AdvantagesExtremely fast drying with 95% to 98% instant moisture evaporation after atomization; suitable for heat-sensitive materials due to evaporative cooling effect; simplified production process converting solutions directly into powder; adjustable product particle size, bulk density and moisture via feed rate, inlet temperature and atomizer speed; documented energy recovery and emission compliance reduce permitting risk.

ApplicationsSuitable for dairy, food ingredient, pharmaceutical and specialty chemical manufacturers in Europe, North America, Japan and South Korea where energy efficiency reporting, dust explosion protection and emission permits are required for spray drying operations.
