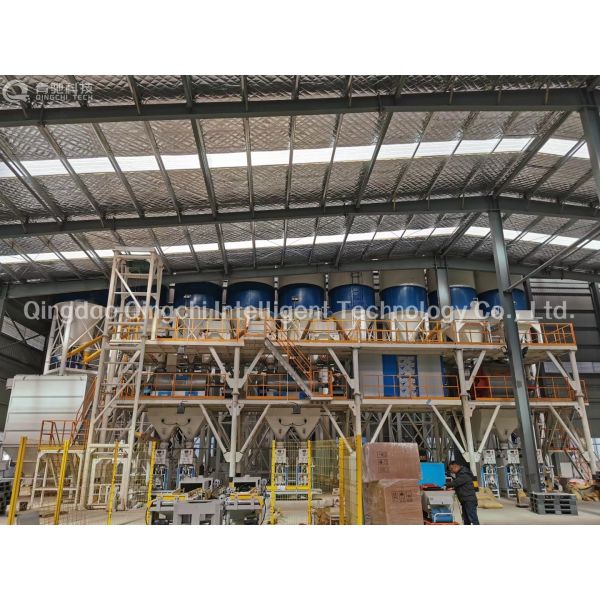

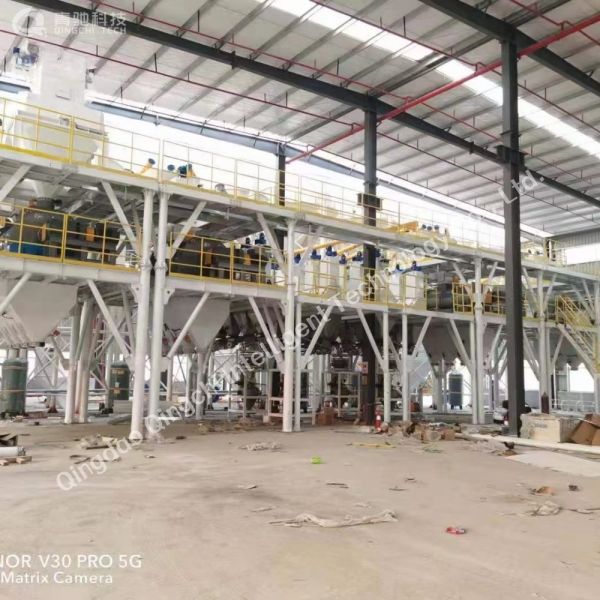

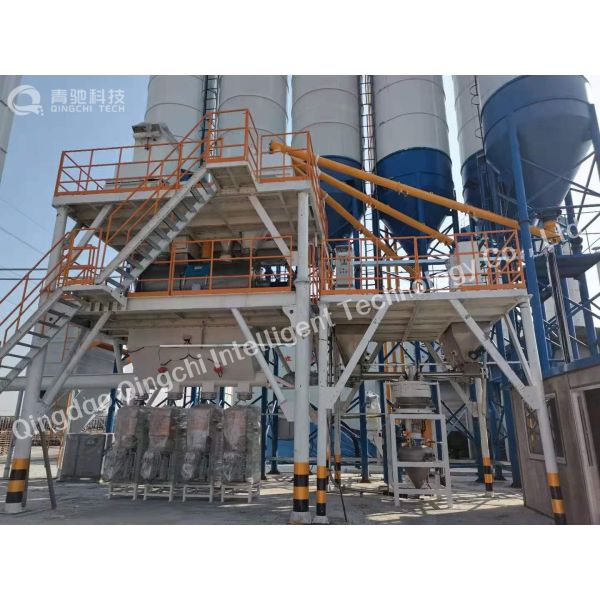

The 15-20 Ton/Hour Dry Mix Mortar Production Line is top-grade full-automatic intelligent industrial dry mortar manufacturing equipment, the largest standard model for commercial mortar factories. Adopting fully enclosed integrated industrial design, it supports automatic wet sand drying, servo high-precision batching, circulating anti-segregation mixing, finished mortar storage, intelligent automatic packing and centralized dust removal. The adjustable hourly output ranges from 15 ton to 20 ton, supporting 24-hour uninterrupted heavy-load operation. This full intelligent production line covers all types of ordinary and high-end construction mortar, featured ultra-high automation, super large output, zero-dust production and stable product quality. It is dedicated to large-scale mortar enterprises, national regional mortar bases and large construction group supporting factories.

• Super Large Adjustable Industrial Output: Steady adjustable output 15-20t/h, daily maximum output up to 180 tons, meet bulk order delivery, full-market supply and long-term non-stop factory production demand
• Closed-loop Servo Batching System: Full servo closed-loop weighing module, automatic real-time error correction, batching accuracy up to ±0.08%, ultra-precise micro-powder additive feeding, meet high-standard engineering mortar inspection standard
• Heavy-duty Circulating Mixing Host: Super thickened alloy double-shaft gravity-free mixer, full wearable anti-corrosion lining, mixing uniformity up to 99.9%, completely mix polymer powder, fiber, latex powder and ultra-fine admixture without material segregation
• Full-process Unmanned Intelligent Operation: Industrial-grade PLC centralized control system, store 25+ classified exclusive formulas, one-click formula switching, automatic fault diagnosis, automatic material shortage alarm, remote monitoring function available
• Zero-dust Full Closed Production System: Full sealed conveying + high-power centralized pulse dust removal system, dust removal efficiency 99.95%, fully meet global strict environmental protection emission standards, clean workshop environment
• Complete Integrated Supporting Configuration: Standard equipped with intelligent sand drying system, automatic feeding system, multi-group raw material silo, finished product large silo, matched automatic palletizing machine, realize full automatic unmanned production
• Heavy-load 24h Continuous Operation: Enhanced heat dissipation frequency conversion motor, reinforced bearing assembly, optimized transmission structure, ultra-low failure rate, adapt long-term heavy-load continuous production, reduce production downtime
• Low Long-term Operation Cost: Energy-saving frequency conversion overall design, low power consumption per ton mortar; long-life alloy wearing parts, centralized automatic lubrication, greatly cut labor, maintenance and replacement cost

1. Large standardized intelligent dry mortar industrial factory full-scale mass production
2. Mass high-end plastering & rendering mortar production, perfectly matched batch automatic wall plastering machines
3. Full series high-performance mortar production: high strength tile adhesive, epoxy grout, structural non-shrink grout, waterproof mortar, anti-crack mortar, special engineering mortar
4. Provincial-level regional mortar supply base, exclusive supply for large construction groups, municipal projects, chain decoration enterprises
5. Special building material factory for bridge, tunnel, high-speed railway, water conservancy municipal infrastructure reinforcement and grouting materials

• Must match supporting intelligent sand drying system, strictly control raw sand moisture ≤1.8%, eliminate damp sand to avoid weighing error and material agglomeratio
• Follow strict heavy-load operation rules: empty machine startup firstly, feeding after stable running; stop feeding first then shut down mixer, forbid full-load startup and emergency sudden stop
• Implement full mixer cavity cleaning after daily shutdown, remove high-viscosity residual mortar, prevent hardened material wearing alloy blades and lining plate
• Adopt automatic centralized lubrication system, manual inspection every 5 days; calibrate servo weighing system every 7 days to keep long-term ultra-high batching precision
• Inspect dust removal filter bag and exhaust pipeline every week, clean dust accumulation regularly to maintain zero-dust workshop production standard
• Install feeding inlet magnetic iron remover, block metal sundries entering mixing bin, protect mixer core components from impact damage
• Set professional administrator authority for PLC system, forbid untrained staff modifying formulas, operation parameters and remote control settings
• Carry out full circuit, frequency converter and transmission system monthly inspection, eliminate hidden risks to guarantee 24h heavy-load stable operation
