Specifications
Brand Name :
SINOLIFT
Model Number :
QDD10 / QDD10L / QDD15L
Certification :
CE, ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 sets/mouth
Delivery Time :
15 days
Packaging Details :
Sandard Export Package
Product name :
SINOLIFT QDD10 / QDD10L / QDD15L Pedestrian Electric Tractor
Front Track :
428mm
Rear Track :
217mm
Overall Width :
520mm
Travel Brake :
Electromagnetic
Drive Unit Type :
DC
Steering Type :
Mechanical
Noise Level :
74dB(A)
After-sales service provided :
Video technical support,Free spare parts
Warranty :
1 year
Description

Product Name:

SINOLIFT QDD10 / QDD10L / QDD15L Pedestrian Electric Tractor

Product Description:

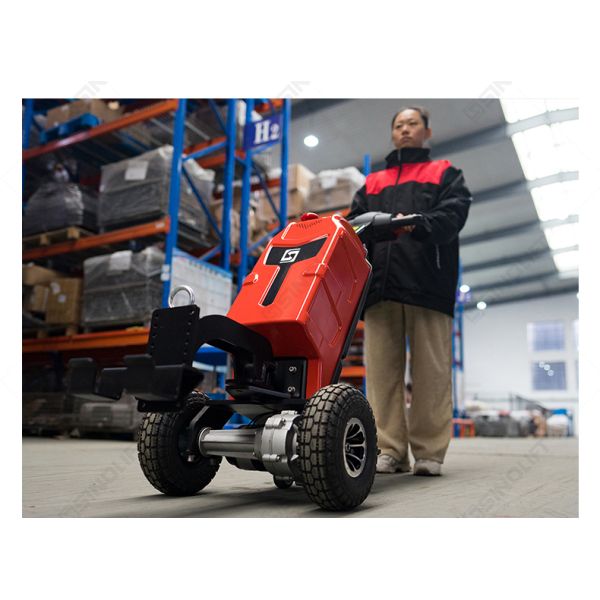

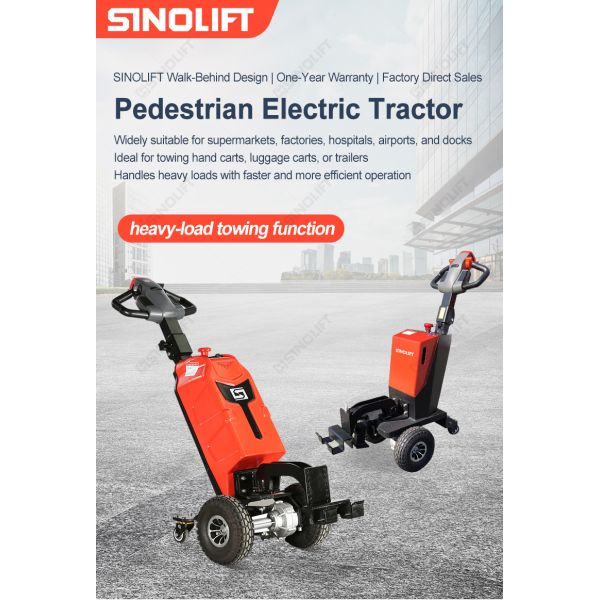

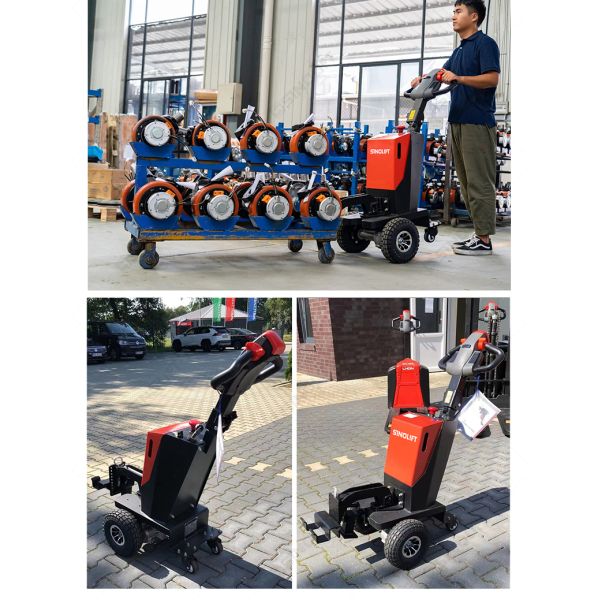

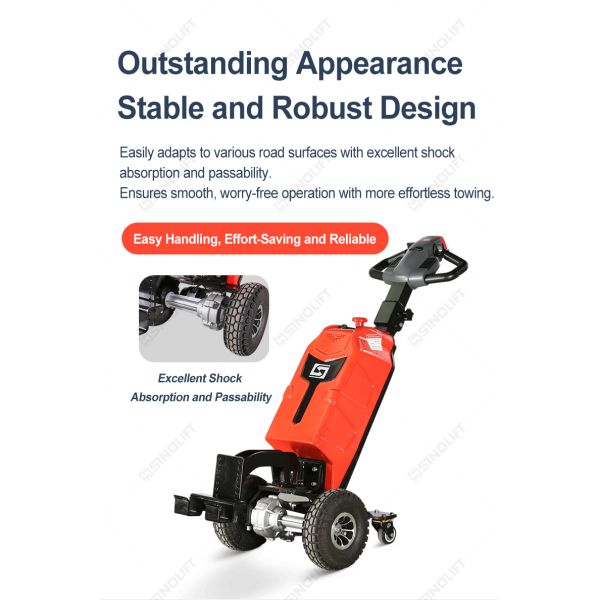

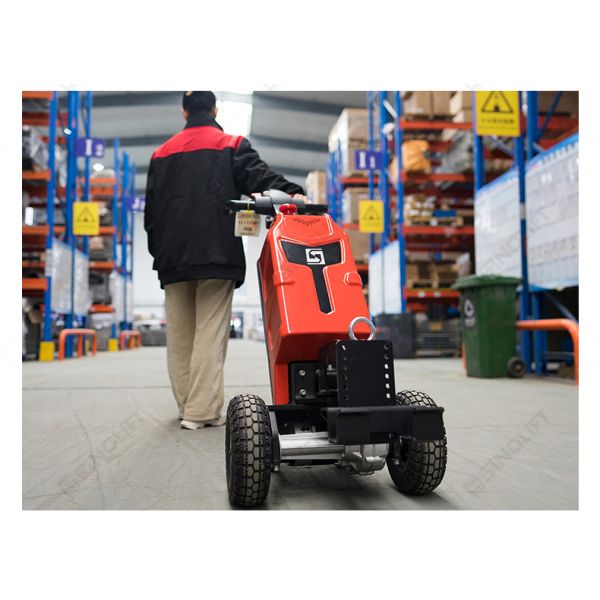

The SINOLIFT QDD Series Pedestrian Electric Tractor is designed for efficient and effortless towing in factories, warehouses, and logistics environments. Built with high-quality steel and powered by a high-performance motor, it delivers strong traction, stable operation, and low energy consumption. Its compact structure and ergonomic design make daily material handling easier, safer, and more productive, even in confined spaces.

Key Features:

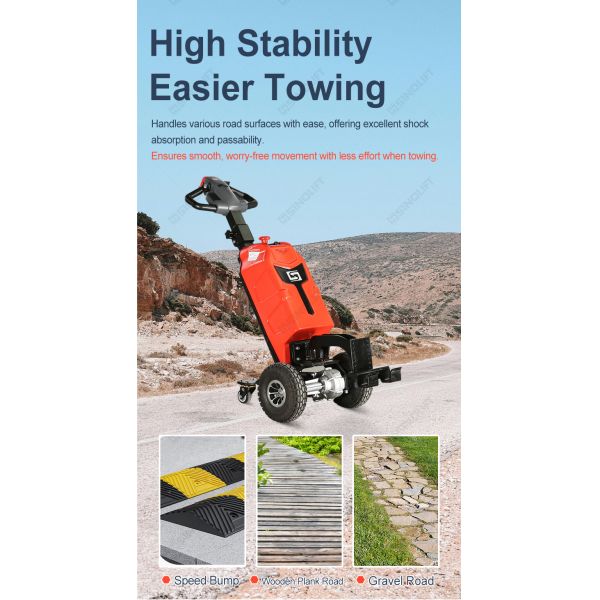

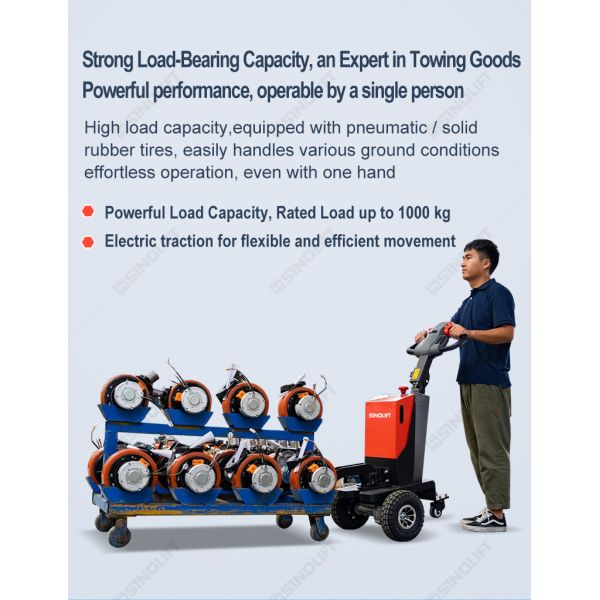

  • Strong Towing Performance

High-power motor delivers reliable traction for heavy-load towing with stable and efficient operation.

  • Durable Steel Construction

High-quality steel frame ensures long service life and dependable performance in demanding industrial environments.

  • Compact & Labor-Saving Design

Lightweight body combined with compact dimensions allows easy maneuvering while reducing operator fatigue.

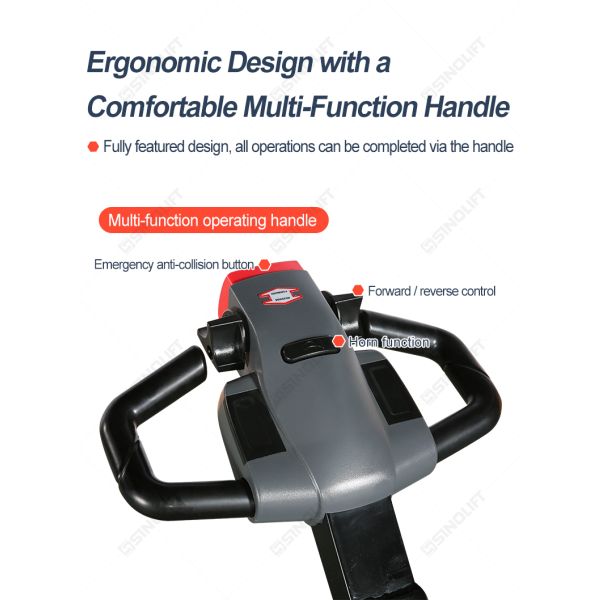

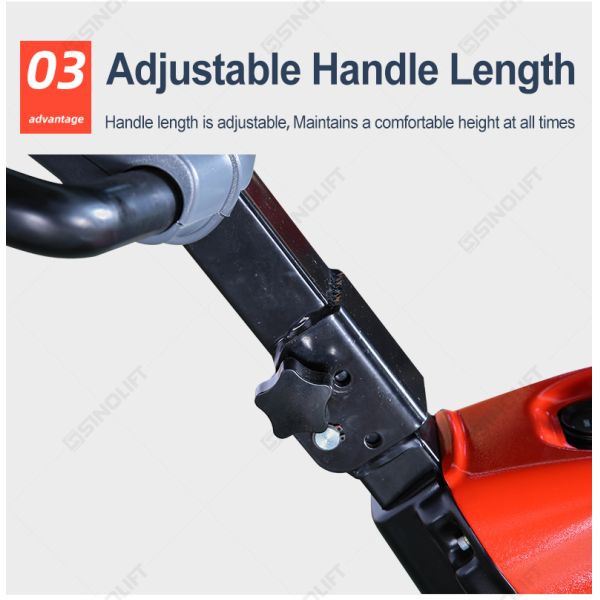

  • Adjustable & Ergonomic Handling

Adjustable handle length maintains a comfortable operating height for different users, ensuring smooth and convenient control.

  • Stable & Safe Power System

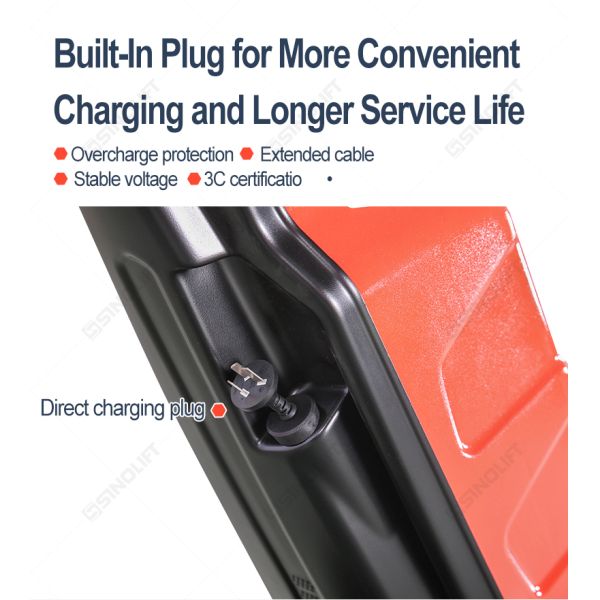

Equipped with overcharge protection, stable voltage output, an extended charging cable, a direct charging plug, and 3C certification for safe and reliable use.

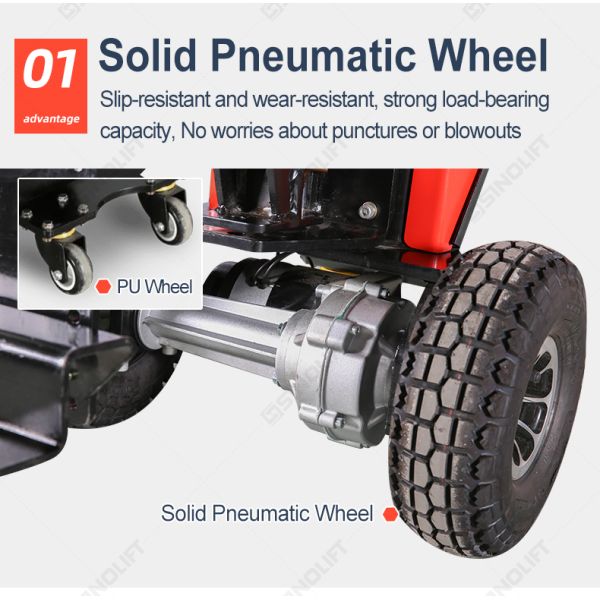

  • Maintenance-Free Solid Tires

Slip-resistant, wear-resistant tires with strong load-bearing capacity eliminate worries about punctures or blowouts.

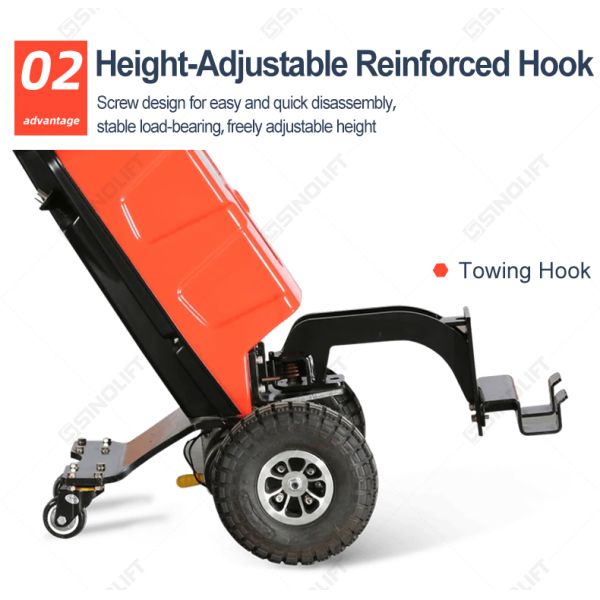

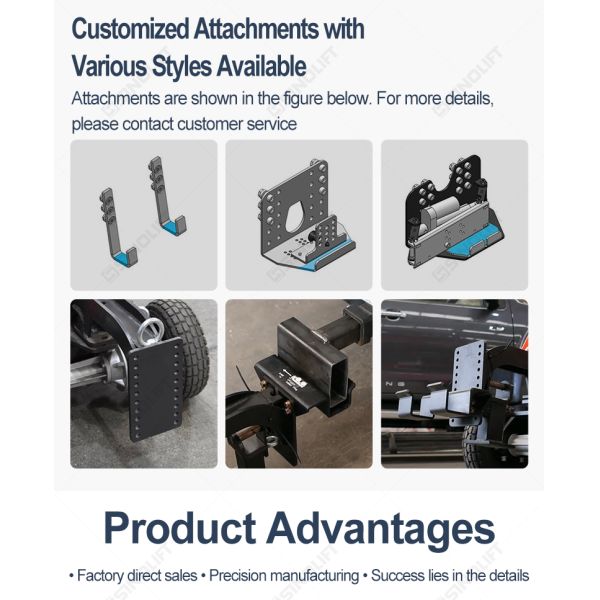

  • Flexible Hook Design

Height-adjustable reinforced hook with screw-type structure allows quick disassembly and secure load bearing.

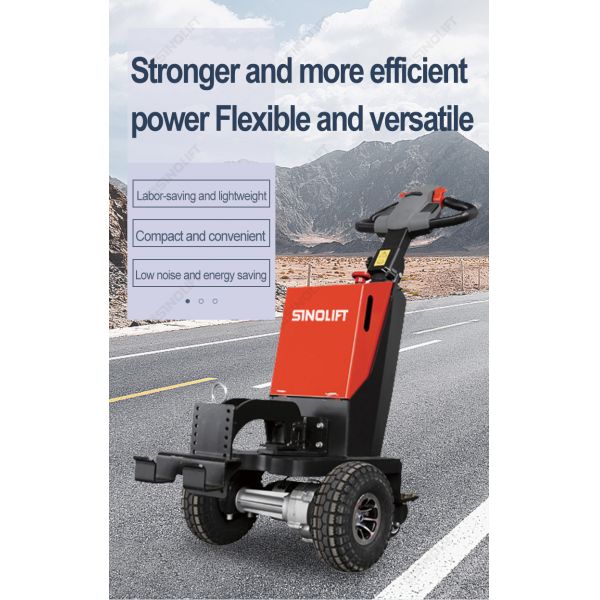

  • Low Noise & Energy Efficient

Designed for quiet operation and reduced energy consumption, suitable for continuous indoor use.

  • Customization & Factory Direct Supply

Customization services are available, backed by factory-direct sales and strict quality assurance.

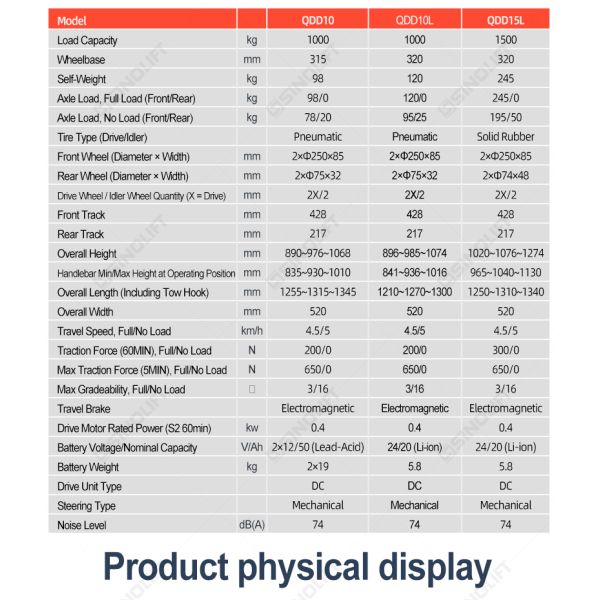

Product Specifications:

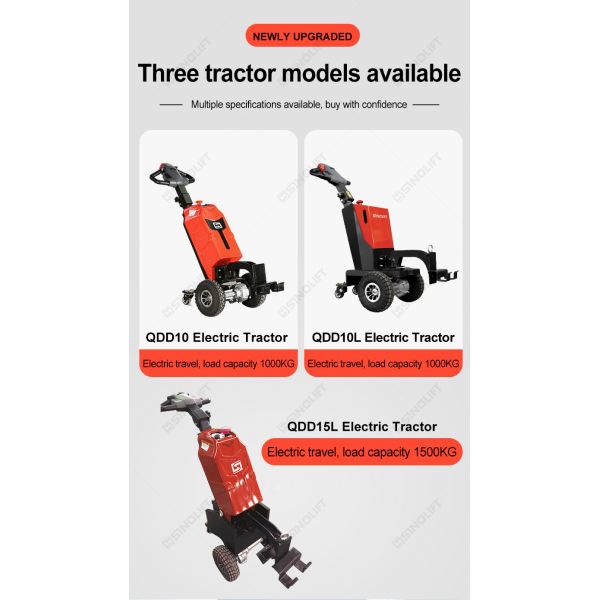

Model QDD10 QDD10L QDD15L
Load Capacity kg 1000 1000 1500
Wheelbase mm 315 320 320
Self-Weight kg 98 120 245
Axle Load, Full Load (Front/Rear) kg 98/0 120/0 245/0
Axle Load, No Load (Front/Rear) kg 78/20 95/25 195/50
Tire Type (Drive/Idler) Pneumatic Pneumatic Solid Rubber
Front Wheel (Diameter × Width) mm 2×Φ250×85 2×Φ250×85 2×Φ250×85
Rear Wheel (Diameter × Width) mm 2×Φ75×32 2×Φ75×32 2×Φ74×48
Drive Wheel / Idler Wheel Quantity (X = Drive) 2X/2 2X/2 2X/2
Front Track mm 428 428 428
Rear Track mm 217 217 217
Overall Height mm 890~976~1068 896~985~1074 1020~1076~1274
Handlebar Min/Max Height at Operating Position mm 835~930~1010 841~936~1016 965~1040~1130
Overall Length (Including Tow Hook) mm 1255~1315~1345 1210~1270~1300 1250~1310~1340
Overall Width mm 520 520 520
Travel Speed, Full/No Load km/h 4.5/5 4.5/5 4.5/5
Traction Force (60MIN), Full/No Load N 200/0 200/0 300/0
Max Traction Force (5MIN), Full/No Load N 650/0 650/0 650/0
Max Gradeability, Full/No Load % 3/16 3/16 3/16
Travel Brake Electromagnetic Electromagnetic Electromagnetic
Drive Motor Rated Power (S2 60min) kw 0.4 0.4 0.4

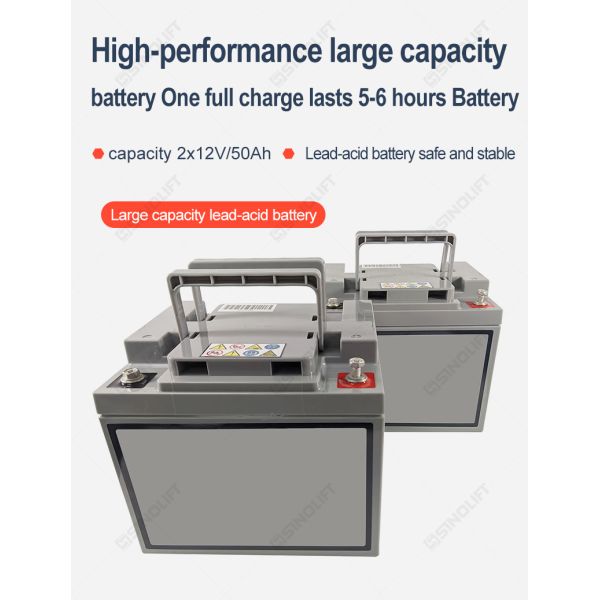

Battery Voltage/Nominal Capacity V/Ah 2×12/50 (Lead-Acid) 24/20 (Li-ion) 24/20 (Li-ion)
Battery Weight kg 2×19 5.8 5.8
Drive Unit Type DC DC DC
Steering Type Mechanical Mechanical Mechanical
Noise Level dB(A) 74 74 74
