Specifications
Brand Name :
SINOLIFT
Model Number :
C SERIES 2.0-2.5T
Certification :
CE, ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
55 units
Delivery Time :
15 DAYS
Packaging Details :
Sandard Export Package
Product name :
C SERIES 2.0-2.5T Internal-Combustion Cushion Tire Forklift
Power type :
LPG
Load center :
500mm
Lift height :
3000mm
Fork size :
1070×120×40mm
Turning radius :
2110mm
Wheelbase :
1400mm
Warranty :
1 year
After service :
on-line service, free spart parts
Description

Product Overview:

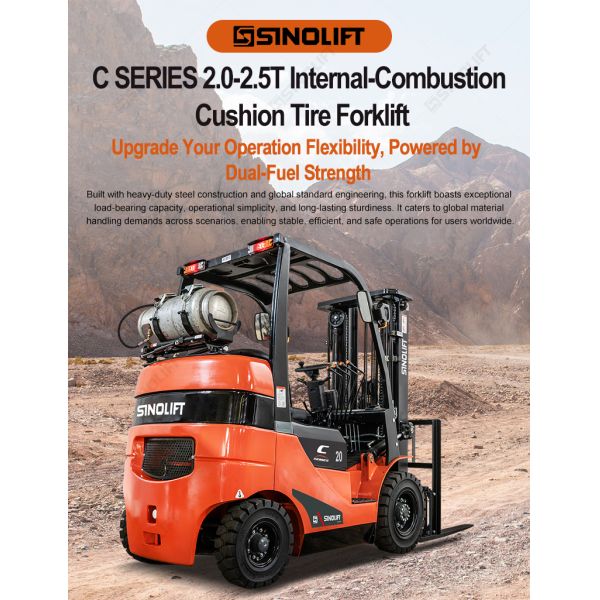

The SINOLIFT C Series 2.0-2.5T Internal-Combustion Cushion Tire Forklift is a robust, globally compliant material handling solution engineered for flexibility and efficiency. Built with heavy-duty steel, it supports 2.0-2.5T loads, offers optional dual-fuel (LPG/gasoline) power, and features a compact design for narrow spaces. Compliant with EPA Tier 4 Final emission standards and tailored to meet European/American market requirements, it delivers stable, safe operations across diverse industrial scenarios.

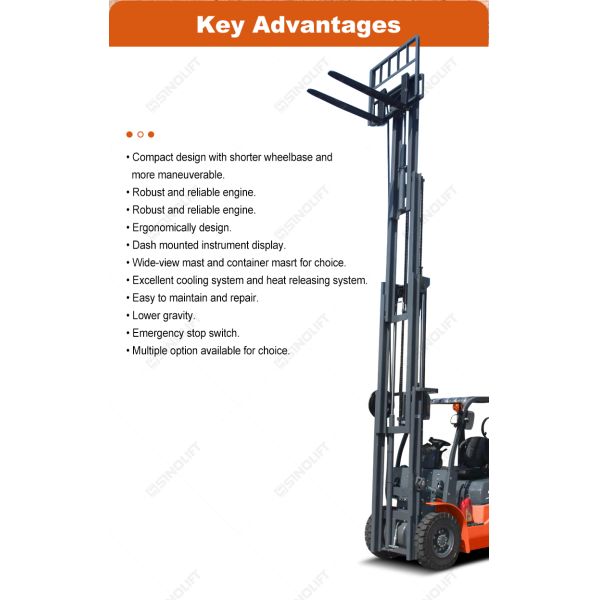

Key Features:

  • Compact & Maneuverable: Shorter wheelbase and small turning radius, ideal for tight workspaces.

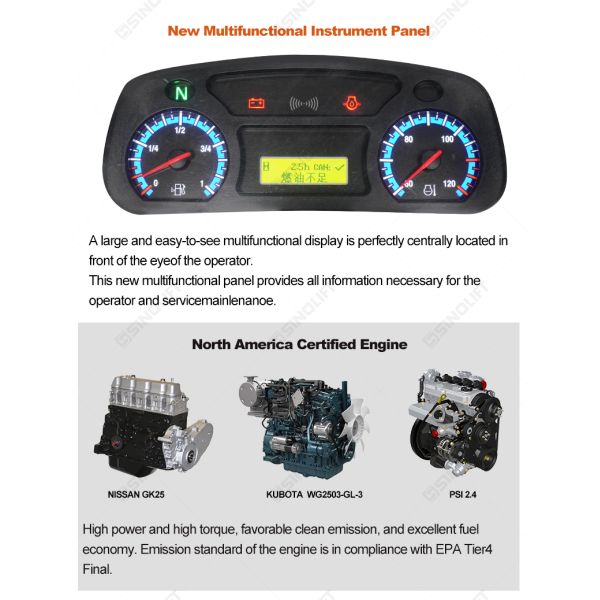

  • Reliable Power: North America-certified engine (EPA Tier 4 Final) with strong torque, low emissions, and optional dual-fuel (LPG/gasoline) flexibility.

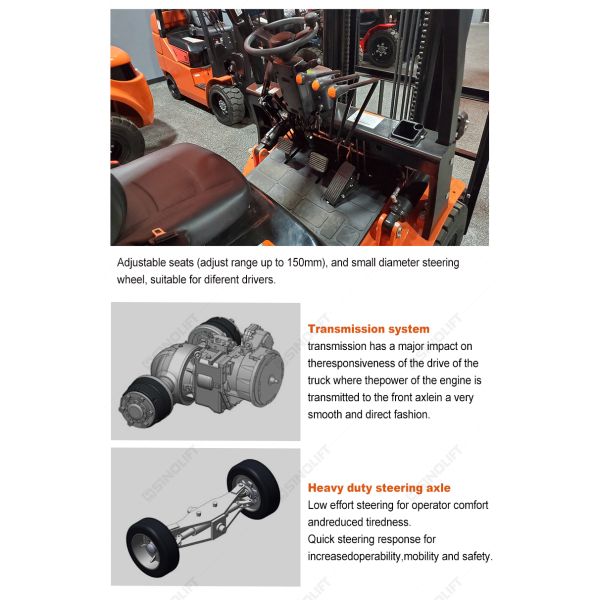

  • Ergonomic Comfort: 150mm adjustable seat, small-diameter steering wheel, flat-body design with spacious legroom, and vibration reduction for long shifts.

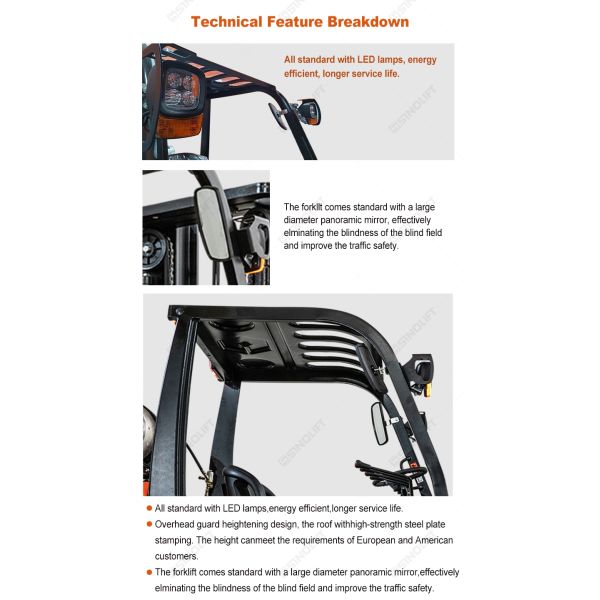

  • Enhanced Safety: Standard LED lights (energy-efficient, long-lasting), large panoramic rearview mirrors (eliminate blind spots), emergency stop switch, and optional handbrake alarm buzzer.
  • Superior Visibility & Versatility: Wide-view mast/container mast options, plus optional side shifters for precise load positioning.
  • Easy Maintenance: Accessible engine compartment, optimized hydraulic breather (with built-in oil filter), and modular components to reduce downtime.
  • Durable Cooling: Excellent cooling/heat dissipation system to maintain performance during continuous use.

Application Scenarios:

  • Warehouses & Logistics Centers: For pallet stacking, load transfer in narrow aisles (thanks to compact design).
  • Manufacturing Facilities: Handling raw materials/finished goods, compatible with heavy-duty daily operations.
  • European/American Markets: Meets height requirements for overhead guards and EPA emission standards, suitable for local compliance needs.
  • Retail & Distribution: Efficient loading/unloading of goods, with dual-fuel flexibility adapting to different fuel supply conditions.
  • Small-to-Medium Workshops: Easy maintenance and single-person operability, reducing labor costs for light-to-moderate material handling tasks.

Product Specifications:

General Manufacturer Brand SINOLIFT
Model FY20C FY25C
Power Type LPG LPG
Rated capacity Q kg 2000 2500
Load center C mm 500 500
Dimensions Lift height H mm 3000 3000
Free lift height H5 mm 125 125
Fork size L×W×T mm 1070×120×40 1070×120×40
Mast tilt angle a/β deg 1 1
Front overhang L2 mm 445 445
Rear overhang L3 mm 510 510
Overall dimensions Length to face of fork L mm 2355 2355
Overall width W mm 1110 1110
Height of load backrest H6 mm 1225 1225
Mast lowered height H1 mm 2070 2070
Mast extended height H2 mm 4070 4070
Overhead guard height H3 mm 2080 2080
Turning radius r mm 2110 2110
Min. Intersecting aisle Ra mm 2316 2316
Min. Right angle stacking aisle width RASA mm 3955 3955
Performance Laden/Unladen Travel speed km/h 16/17 16/17
Lift speed mm/s 530/570 530/570
Lowering speed mm/s 600/300 600/300
Max. gradeability (Loaden/Unloaden) % 20 20
Max. drawbar pull N 20000 20000
Self weight kg 3445 3655
Power Unit Tires Front 21×7×15 21×7×15
Rear 16(1/4)×6×11(1/4) 16(1/4)×6×11(1/4)
Tread Front W1 mm 902 902
Rear W2 mm 900 900
Wheelbase L4 mm 1400 1400
Min. ground clearance H4 mm 80 80
Drive units & control Engine Model NISSAN K25 EPA PSI 2.4
Rated output kw/rpm 42/2700 46/2700
Rated torque N.m/rpm 185/1350 168/1600
No. of cylinder 4 4
Bore×stroke mm 89×100 86.5×100
Displacement cc 2488 2351
Emission Standard EPA T2 / EURO IV EPA T4 / EURO V
Transmissions Type Mechanical / Hydraulic Mechanical / Hydraulic
Hydraulic system working pressure Mpa 18 18
