CDD500-R1200 Automatic Pressure-Adjusting Roll Clamp Stacker
CDD500-R1200 Automatic Pressure-Adjusting Roll Clamp Stacker
CDD500-R1200 Automatic Pressure-Adjusting Roll Clamp Stacker
CDD500-R1200 Automatic Pressure-Adjusting Roll Clamp Stacker
CDD500-R1200 Automatic Pressure-Adjusting Roll Clamp Stacker
CDD500-R1200 Automatic Pressure-Adjusting Roll Clamp Stacker
CDD500-R1200 Automatic Pressure-Adjusting Roll Clamp Stacker
CDD500-R1200 Automatic Pressure-Adjusting Roll Clamp Stacker
CDD500-R1200 Automatic Pressure-Adjusting Roll Clamp Stacker
CDD500-R1200 Automatic Pressure-Adjusting Roll Clamp Stacker
Specifications
Brand Name :
SINOLIFT
Model Number :
CDD500-R1200
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
1000 sets/mouth
Delivery Time :
15 days
Packaging Details :
Sandard Export Package
Product name :
CDD500-R1200 Automatic Pressure-Adjusting Roll Clamp Stacker
Driving style :
Pedestrian
Load capacity :
500kg
Warranty :
1 year
After service :
on-line service,free spare parts
Description

Product Name

CDD500-R1200 Automatic Pressure-Adjusting Roll Clamp Stacker

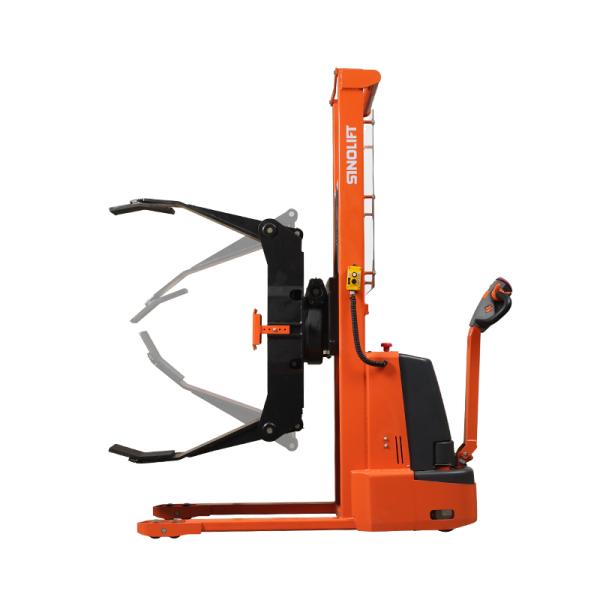

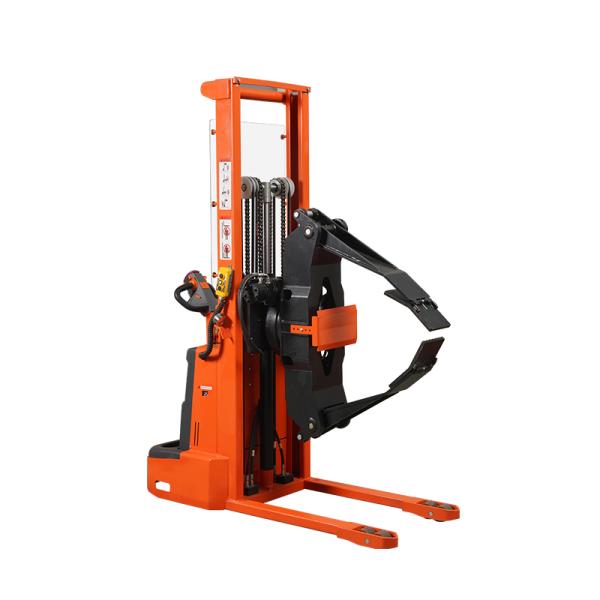

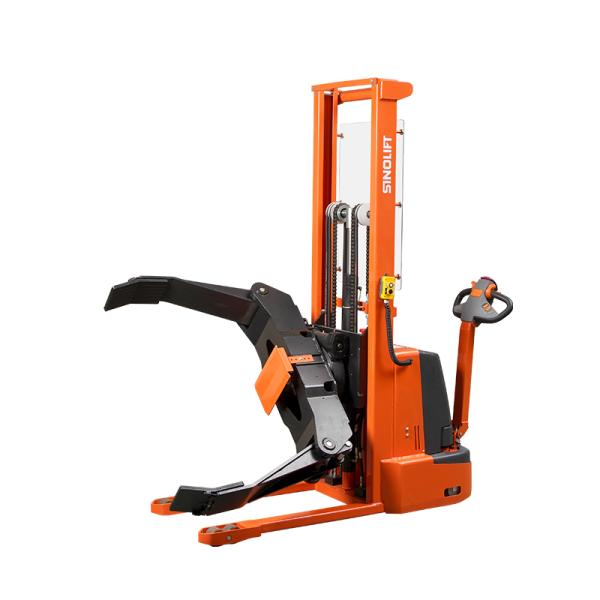

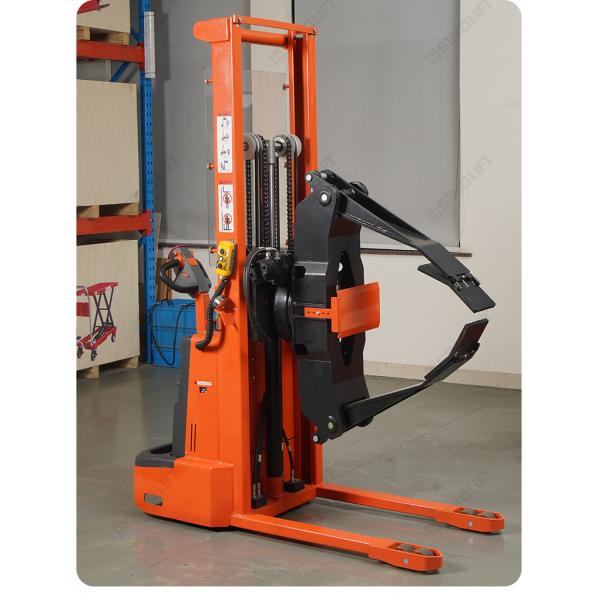

This electro-hydraulic coil rotator is specifically engineered for the printing and packaging industry. It enables safe, efficient handling of coils by picking them up from the ground or pallet, lifting and rotating them 90 degrees, and precisely feeding them into machinery. Its smart design includes automatic pressure adjustment, customizable rotation angles, and intuitive wireless control for enhanced productivity and operational safety. Fully customizable to match your specific coil types and process requirements.

Feature Highlights

  • Application-Specific Design: Ideal for coil feeding in printing and packaging operations.

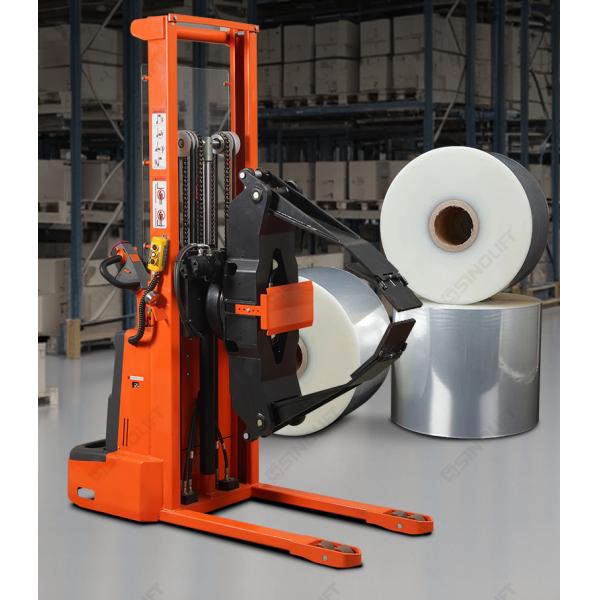

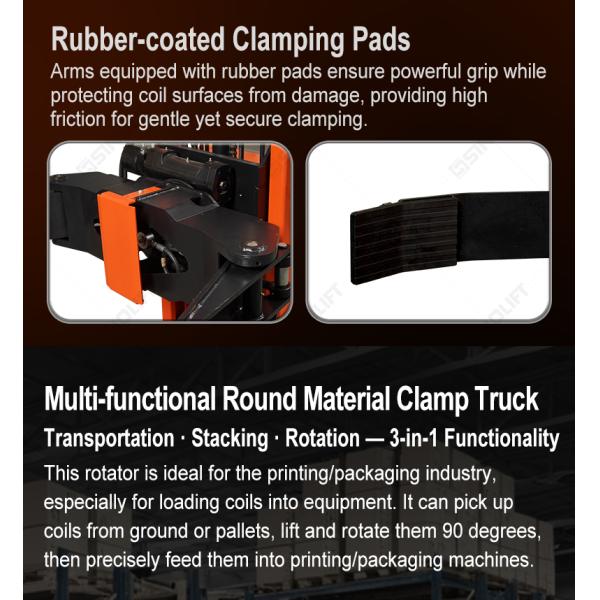

  • Multi-Functional Handling: Picks up coils from the ground or pallets, lifts, rotates 90°, and feeds them into equipment.
  • Electro-Hydraulic System: Electric lifting, clamping, and rotation for high efficiency.

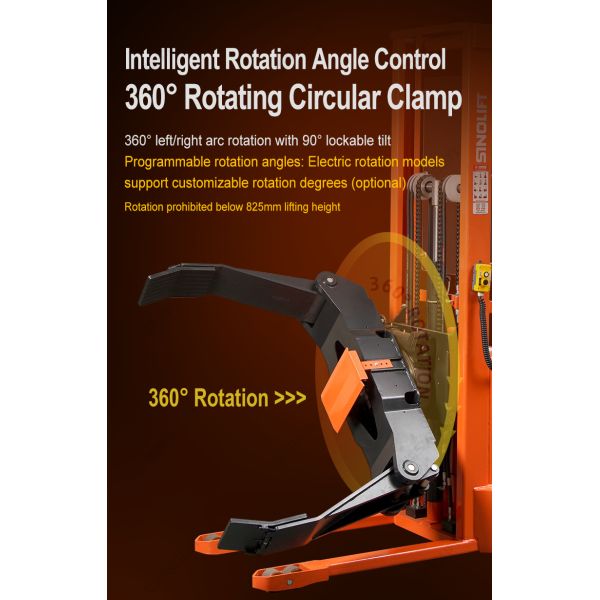

  • Customizable Rotation: Programmable rotation angles available (optional feature).

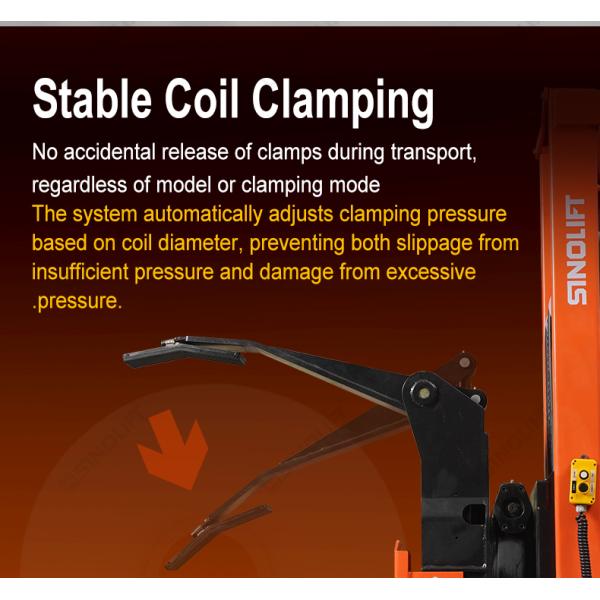

  • Automatic Pressure Control: Adjusts clamping force based on coil diameter to avoid slippage or damage.

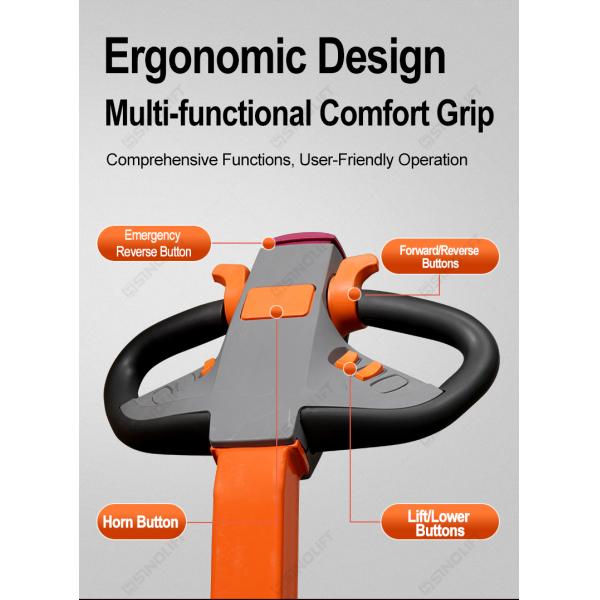

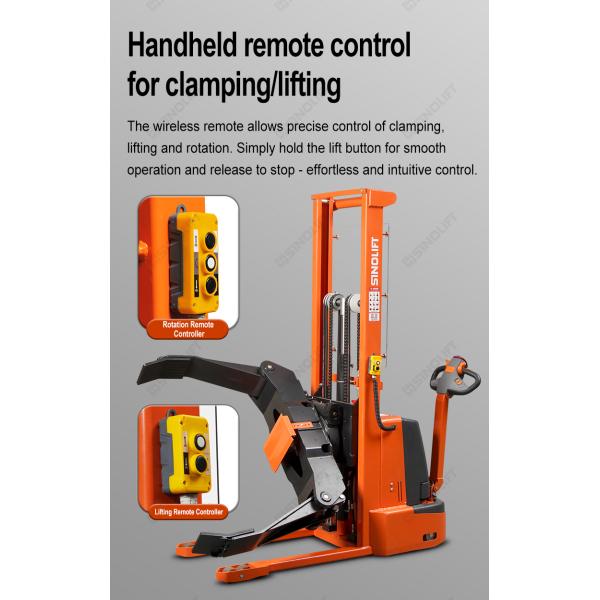

  • Wireless Remote Control: Easy and precise operation of lift, clamp, and rotation functions.
  • Effortless Operation: Hold-to-move, release-to-stop functionality for smooth handling.

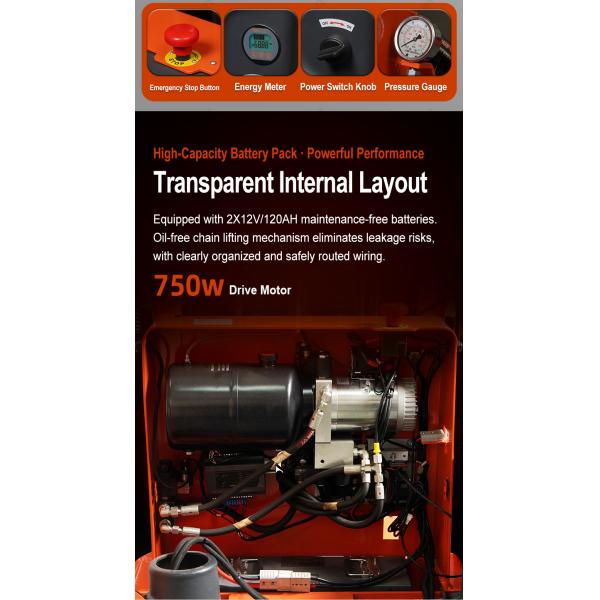

  • Reliable Power System: Dual 12V/120AH maintenance-free batteries for extended use.

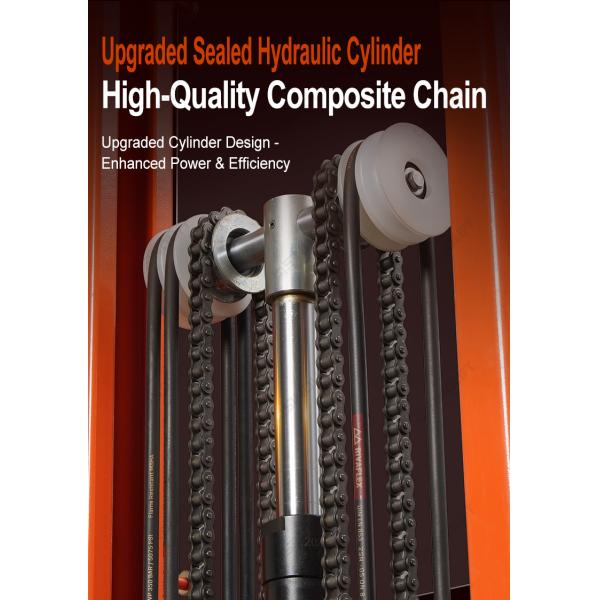

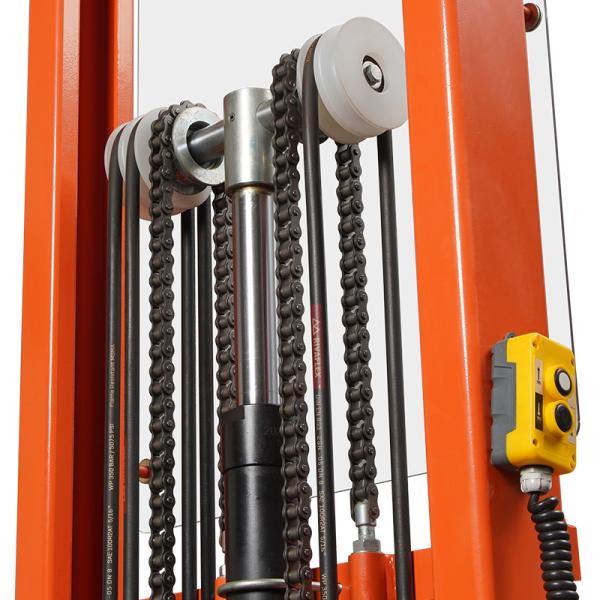

  • Oil-Free Lifting: Chain lifting system eliminates oil leakage risks.
  • Organized Wiring: Neatly routed cables for safety and durability.

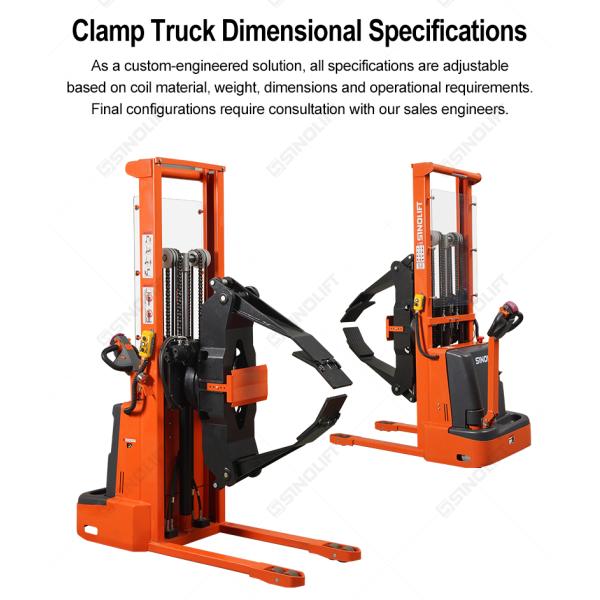

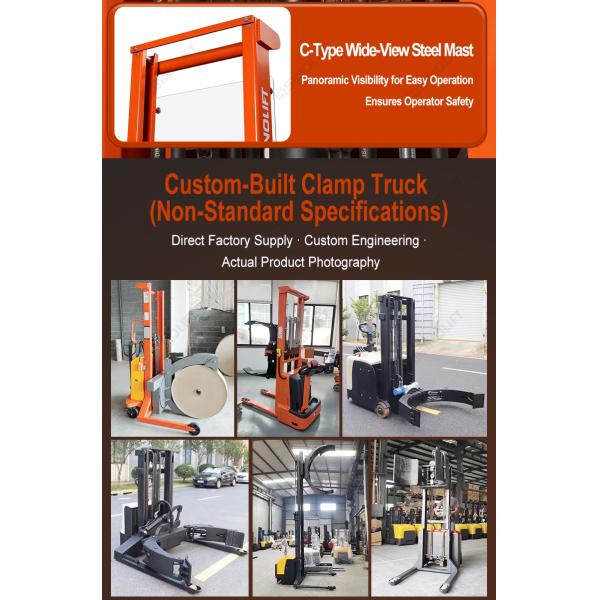

  • Customizable Specs: Fully adjustable based on coil material, size, weight, and operational needs (sales consultation required).

Product Specifications

Parameter Unit Value/Description
Model CDD500-R1200
Operation Pedestrian-controlled
Lifting Type Electric
Speed Adjustment Available
Load Capacity kg 500
Wheelbase mm Rear/Front: 475/560

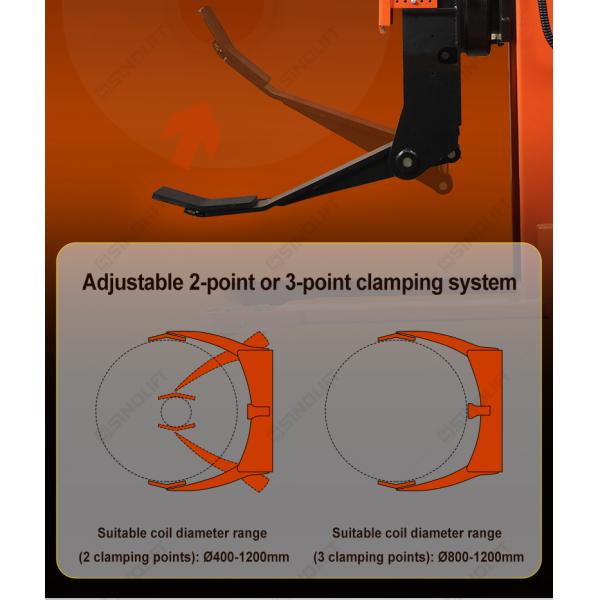

Coil Diameter Range (3-point) mm 800-1200
Coil Diameter Range (2-point) mm 400-1200
Min. Height (Clamp Arm) mm 220

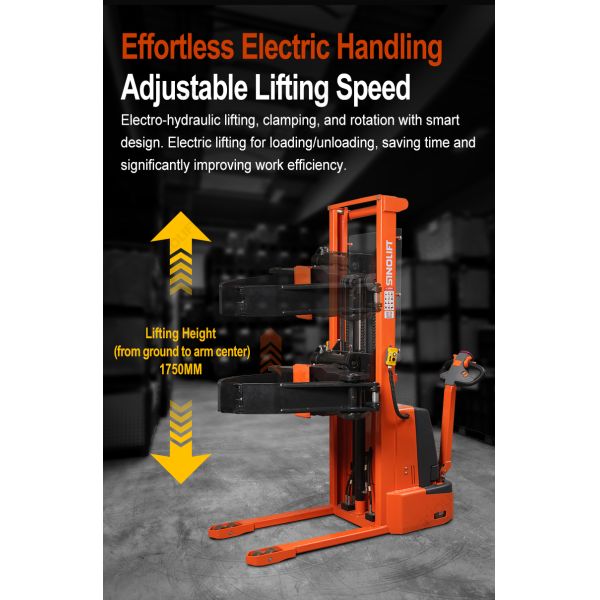

Lifting Height mm 1750 (arm center to ground)
Overall Length mm 1800
Max. Width (Arms Extended) mm 1350
Min. Width (Arms Retracted) mm 1150
Overall Height mm 2180
Outrigger Width mm 666
Turning Radius mm 1500
Ground Clearance mm 30
Aisle Width mm 2360 (coil-dependent)
Front Caster Wheels PU Ø80x60
Rear Drive Wheels PU Ø210x75
Stabilizer Wheel PU Ø150x50
Drive Motor Power kW 0.75
Max. Travel Speed km/h Loaded/Unloaded: 3.5/4.0
Battery Specification V/Ah 2x12/120
Battery Weight kg 2x28
Charger V/A 24/20
Max. Lift Speed mm/s Loaded/Unloaded: 70/100
Max. Lowering Speed mm/s Loaded/Unloaded: 60/70
Gradeability % Loaded/Unloaded: 3.5/4.0
Net Weight kg 670
