BC Series Counterbalance Hand Winch Stacker
BC Series Counterbalance Hand Winch Stacker
BC Series Counterbalance Hand Winch Stacker
BC Series Counterbalance Hand Winch Stacker
BC Series Counterbalance Hand Winch Stacker
BC Series Counterbalance Hand Winch Stacker
BC Series Counterbalance Hand Winch Stacker
BC Series Counterbalance Hand Winch Stacker
BC Series Counterbalance Hand Winch Stacker
BC Series Counterbalance Hand Winch Stacker
Specifications
Brand Name :
SINOLIFT
Model Number :
BC
Certification :
CE, ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
1000 sets/mouth
Delivery Time :
15 days
Packaging Details :
Sandard Export Package
Type :
Manual
Load Capacity :
159 (350)\181 (400)\ 227 (500)kg
Load Center :
25.4 (10)
Lift Height (Forks Up) :
3.6 (142)\3.0 (120)\1.8 (70)
Application :
Industrial Filed
After Warranty Service :
After Warranty Service
Description

Product Name:
BC Series Counterbalance Hand Winch Stacker

Product Description:

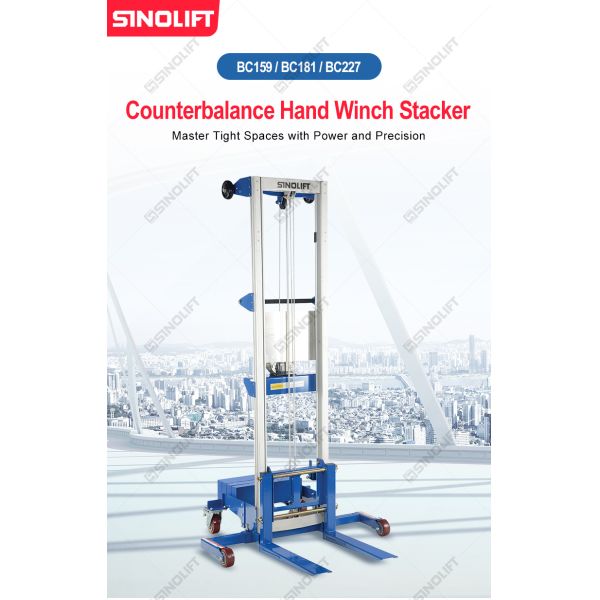

Master tight spaces with power and precision. The BC Counterbalance Stacker is engineered to deliver impressive 3.0m lifting height in the most confined areas, turning space constraints into productive potential.

Key Features:

  • True Compact Performance

Features a uniquely short leg length compared to straddle-leg models, allowing unparalleled access to loads in ultra-confined spaces and on countertops.

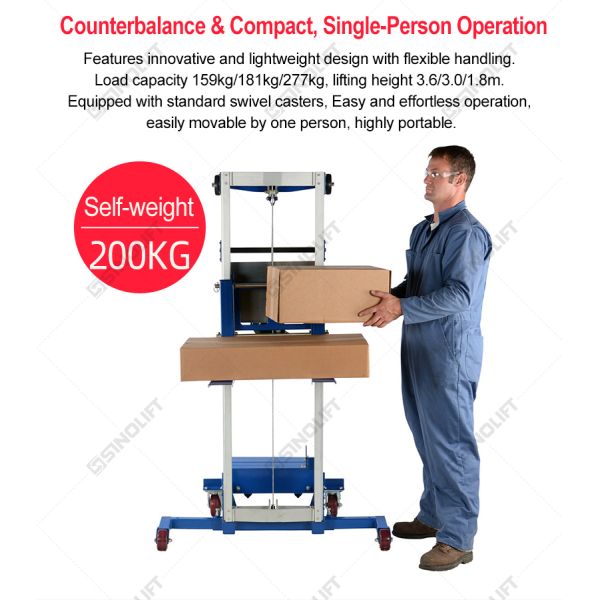

  • Powerful 181kg Lifting Capacity

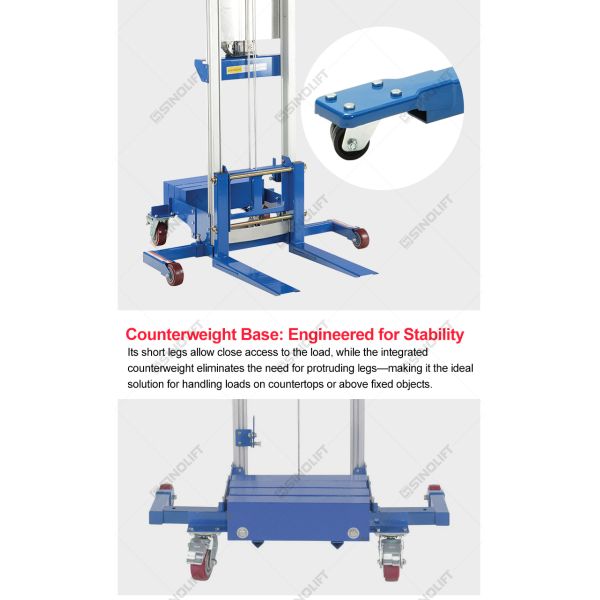

Robust counterweight design ensures stable and reliable handling of substantial loads up to 181kg, making it a powerhouse for diverse tasks.

  • Effortless High-Reach

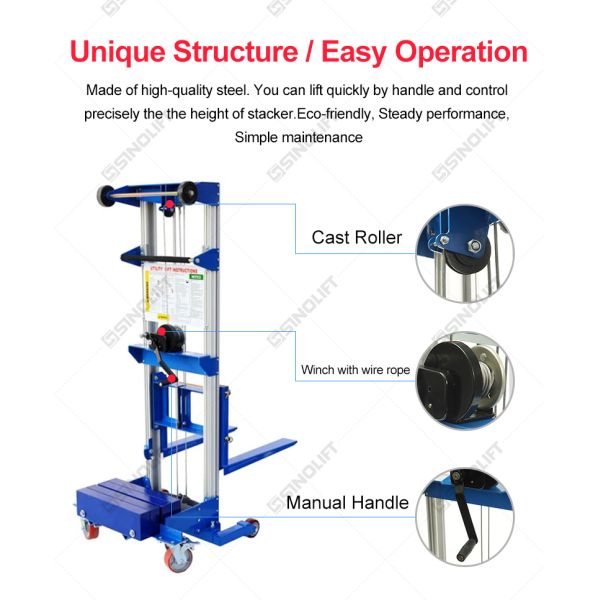

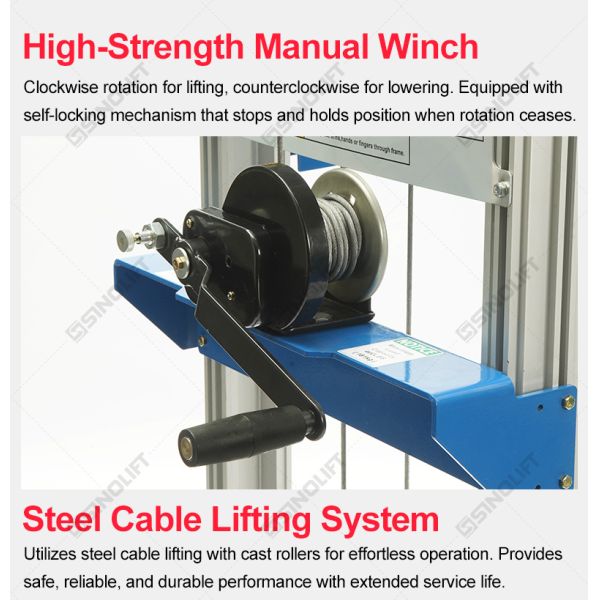

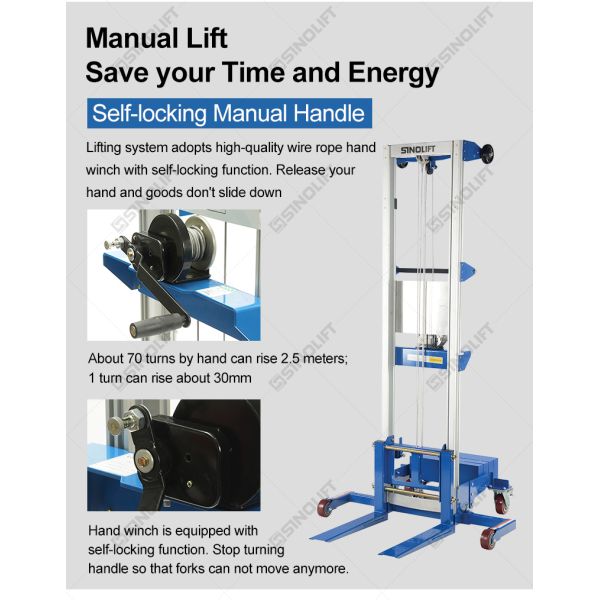

The manual winch system effortlessly raises loads to an impressive 3.0m height, with flip-able standard forks for added versatility.

  • Customizable for Your Needs

Ready to be outfitted with a range of attachments, adapting seamlessly to your specific material handling challenges.

  • Built for Long-Term Value

Manufactured to the highest SINOLIFT quality standards, guaranteeing durability and maximizing your return on investment.

Application Scenarios:

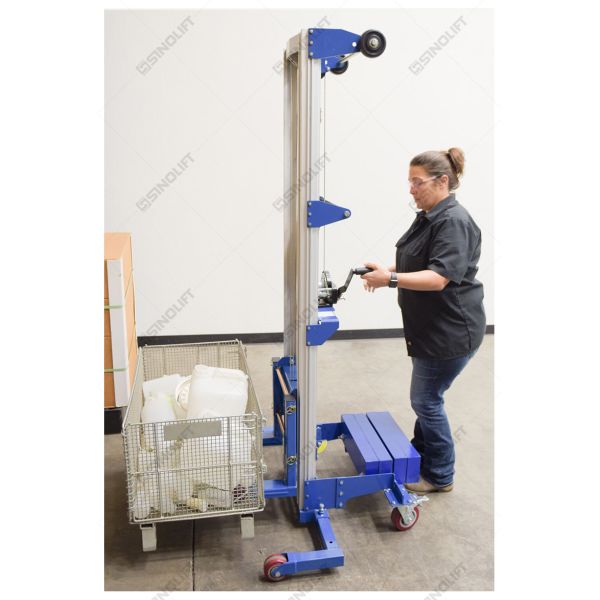

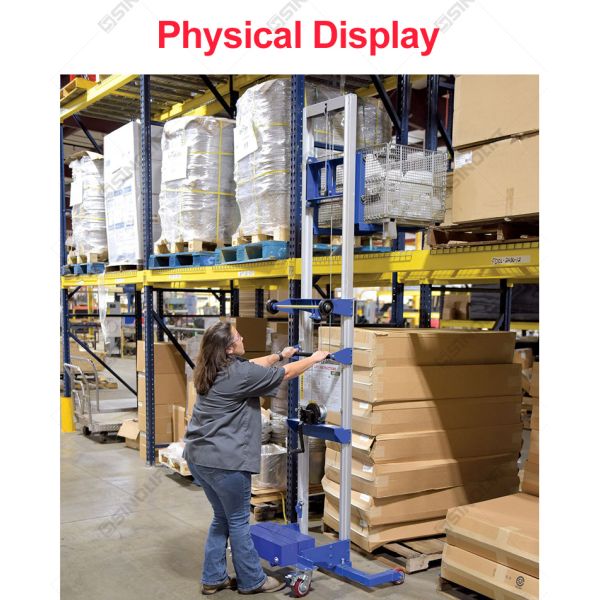

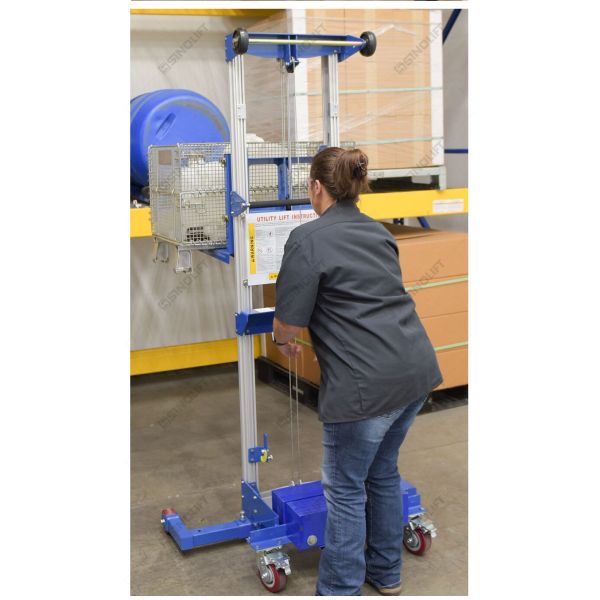

Narrow Aisles & Compact Warehouses

Production Lines & Work Benches

Retail Stock Rooms with Limited Floor Space

Loading/Unloading from Shelves or Countertops

Product Specifications:

Model Load Capacity Lift Height (Forks Up) Lift Height (Forks Down) Overall Length Overall Width Overall Height Load Center
kg (lb) m (in) m (in) cm (in) cm (in) cm (in) cm (in)
WFH-181 181 (400) 3.0 (120) 2.5 (98) 87.6 (34-1/2) 61 (24) 170 (67) 25.4 (10)
WFH-227 227 (500) 1.8 (70) 1.2 (47) 87.6 (34-1/2) 61 (24) 170 (67) 25.4 (10)
SW-159 159 (350) 3.6 (142) 3.0 (120) 110 (43) 73.6 (29) 202.4 (79-3/4) 25.4 (10)
SW-181 181 (400) 3.0 (120) 2.5 (98) 110 (43) 73.6 (29) 170 (67) 25.4 (10)
SW-227 227 (500) 1.8 (70) 1.2 (47) 110 (43) 73.6 (29) 170 (67) 25.4 (10)
BC-159 159 (350) 3.6 (142) 3.0 (120) 117 (46) 73.6 (29) 202.4 (79-3/4) 25.4 (10)
BC-181 181 (400) 3.0 (120) 2.5 (98) 117 (46) 73.6 (29) 170 (67) 25.4 (10)
BC-227 227 (500) 1.8 (70) 1.2 (47) 117 (46) 73.6 (29) 170 (67) 25.4 (10)
