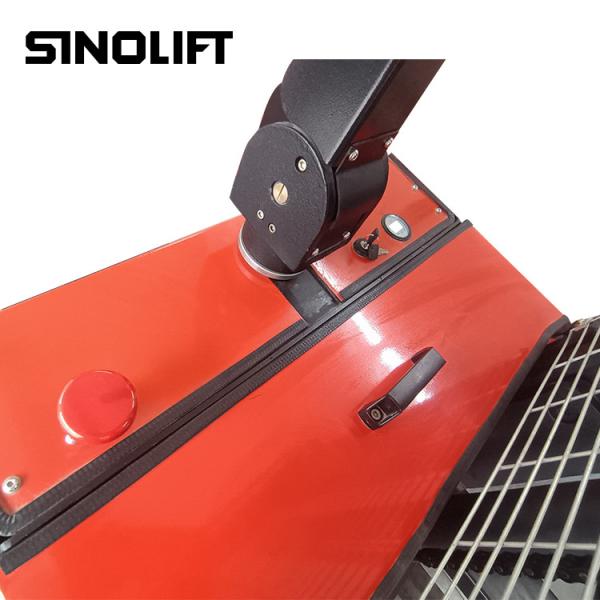

Sinolift CDD15W POWERFUL Electric pallet truck
Sinolift CDD15W POWERFUL Electric pallet truck
Sinolift CDD15W POWERFUL Electric pallet truck
Sinolift CDD15W POWERFUL Electric pallet truck
Sinolift CDD15W POWERFUL Electric pallet truck
Sinolift CDD15W POWERFUL Electric pallet truck
Sinolift CDD15W POWERFUL Electric pallet truck
Sinolift CDD15W POWERFUL Electric pallet truck
Sinolift CDD15W POWERFUL Electric pallet truck
Sinolift CDD15W POWERFUL Electric pallet truck
Sinolift CDD15W POWERFUL Electric pallet truck
Sinolift CDD15W POWERFUL Electric pallet truck
Specifications
Brand Name :
sinolift
Model Number :
CDD15W
Certification :
CE
Place of Origin :
China
MOQ :
1sets
Price :
2980＄
Payment Terms :
L/C, T/T
Supply Ability :
50
Delivery Time :
30days
Product Name :
pallet truck
Loading Capacity :
1500kg
Color :
RED
Max. Lifting Height :
3000mm
Wheel Base :
1340mm
Fork width :
560/685mm
Description
specification 1.2 Model CDD15W
1.3 Driving Model: Electric(Storage battery), Diesel, Gasoline, Fuel gas Electric
1.4 Operating(Manual, Walking, Stand driving, Seat driving ,Order picking) Standing Driving
1.5 Rated Capacity Q(kg) 1500
1.6 Load Center Distance c(mm) 600
1.7 Wheel Base Y(mm) 1340
weight 2.1 Service Weight(with battery) kg 750
Chassis 3.1 Wheels (Rubber, Pneumatic Tyre, Polyurethane Wheel) polyurethane
3.2 Wheel dimension, front Φ250×80
3.3 Wheel dimension, rear Φ80×70
3.4 Additional Wheel Φ127×50
3.5 Wheel number, Drive wheel/Load Wheel/Balanced wheel 4,1/2/2
3.6 Thread, front b4(mm) 525
3.7 Thread, rear b4(mm) 650
Dimension 4.1 Retracted height H1(mm) 2052
4.2 Max. Lift Height H(mm) 3000
4.3 Extended Mast Height H4(mm) 3505
4.4 Height, Fork Lowered H3(mm) 90
4.5 Overall Length L (mm) 2370/1870
4.6 Overall Width B(mm) 790
4.7 Fork dimension E(mm) 160
4.8 Fork width B1(mm) 560/685
4.9 Ground Clearance m2(mm) 25
4.1 Aisle Width, with pallet 1000x1200 crosswise Ast(mm) 2225
4.11 Aisle Width, with pallet 800x1200 lengthwise Ast(mm) 2150
4.12 Turning Radius W(mm) 1530
Performance Data 5.1 Traveling speed, full load/no-load Km/h 3.2/3.3
5.2 Lifting speed, full load/no-load mm/s 100/135
5.3 Descending speed, full load/no-load m/s 100/100
5.4 Max. Gradient, load/unload % 8/5
5.5 Traveling Brake Electromagnetic brake
Motor 6.1 Driving Motor Power AC kW 1.5
6.2 Lifting Motor Power DC kW 2.2
6.3 Battery Voltage/Rated Capacity V/Ah 24/100(200)
6.4 Battery Weight Kg 65
6.5 Turing Mode Mechanical
7.1 Noise Level at Operator’s Ear, according to DIN12053 dB(A) 70
