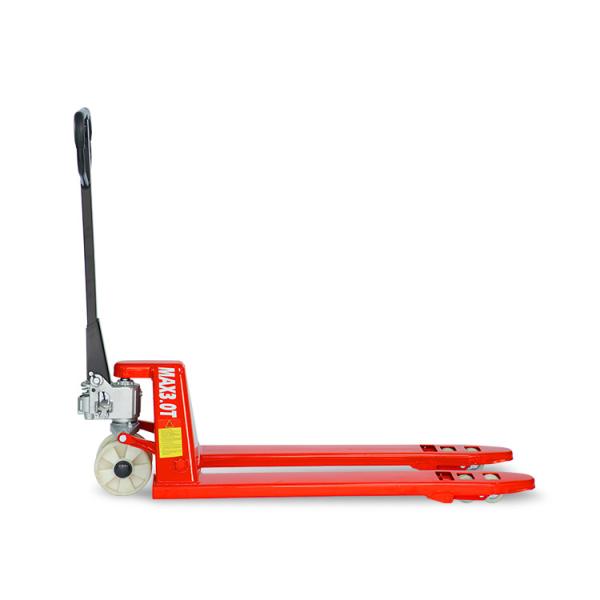

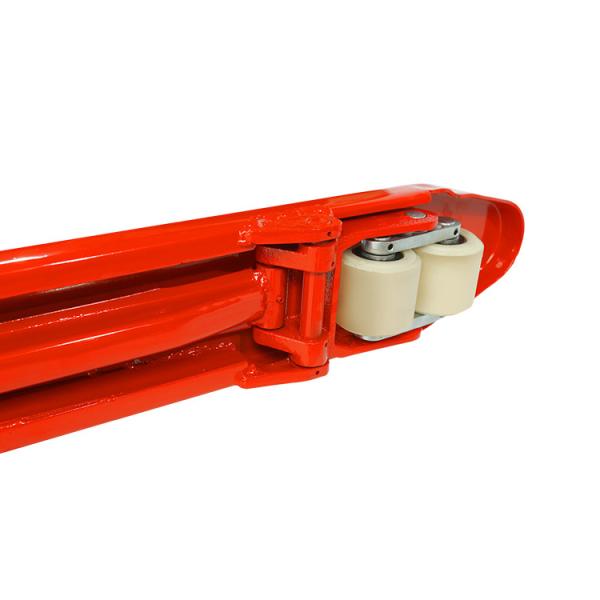

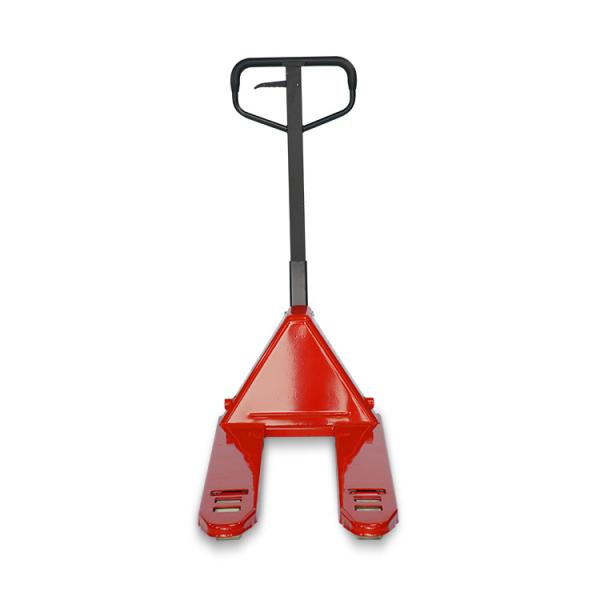

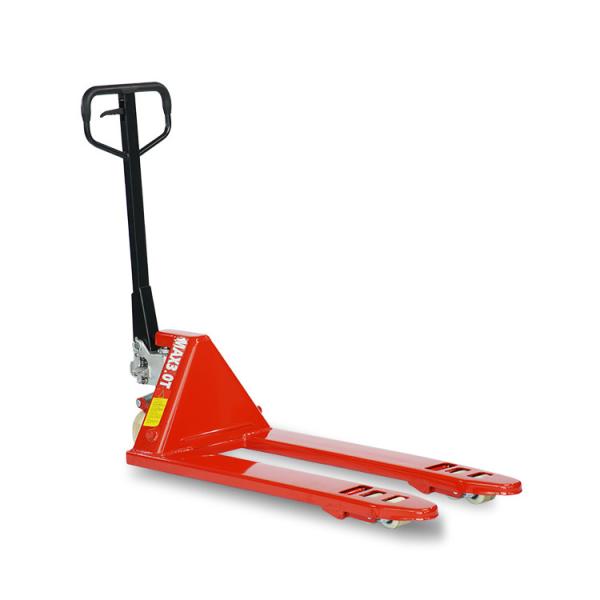

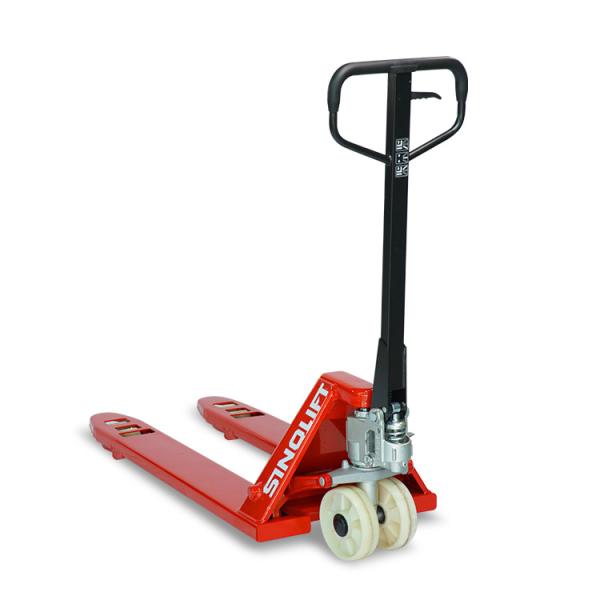

NF Series Hand Pallet Truck Loading Capacity 3000kg
NF Series Hand Pallet Truck Loading Capacity 3000kg
NF Series Hand Pallet Truck Loading Capacity 3000kg
NF Series Hand Pallet Truck Loading Capacity 3000kg
NF Series Hand Pallet Truck Loading Capacity 3000kg
NF Series Hand Pallet Truck Loading Capacity 3000kg
NF Series Hand Pallet Truck Loading Capacity 3000kg
NF Series Hand Pallet Truck Loading Capacity 3000kg
NF Series Hand Pallet Truck Loading Capacity 3000kg
NF Series Hand Pallet Truck Loading Capacity 3000kg
NF Series Hand Pallet Truck Loading Capacity 3000kg
NF Series Hand Pallet Truck Loading Capacity 3000kg
Specifications
Brand Name :
Sinolift
Model Number :
NF
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
5000 sets/mouth
Delivery Time :
15 days
Packaging Details :
Sandard Export Package
Product Name :
NF Series Hand Pallet Truck Loading Capacity 3000kg
Load Capacity :
3000Kg
Fork Width :
685mm
Fork Length :
1220mm
Min. Fork Height :
80mm
Max. Fork Height :
200mm
Steering Wheel :
Ø180×50mm
Single Load Wheel :
Ø78×100mm
Tandem Load Wheel :
Ø78×70mm
Service Weight :
70Kg
Warranty :
1 year
After Service :
On-line service,Spare parts
Description

Feature:

1. Simple and Easy Operation.
2. Lifting movement via collapsible foot pedal or 3 function handle control.
3. Sensitive lowering through sinking valve.
4. Hand push drive.
5. Overload protection via pressure valve.
6. Safe Operation and secure Working Conditions.
7. Stable chassis with 2 or 4 frame rollers and 2 steering rollers.
8. Long Service Lift.
9. Robust construction.
10. Hard chromium plated frame.
11. Hardened chromium plated ram.
12. Effortless Movement.
13. Ball bearing non-marring rollers.
14. Polyurethane rollers.
15. Tapered forks.

Specification:

Model Rated Capacity Fork Width Fork Length Min. Fork Height Max.Fork Height Wheel Service Weight
Q W L H1 H2 Steering Wheel A Single Load Wheel B Tandem Load Wheel B
(kg) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kg)
NF25-510 2500 520 1070 80 200 Ø180×50 Ø78×100 Ø78×70 62
NF25-712 685 1220 70
NF30-510 3000 520 1070 80 200 Ø180×50 Ø78×100 Ø78×70 70
NF30-712 685 1220 75
Low Profile
Model Rated Capacity Fork Width Fork Length Min. Fork Height Max.Fork Height Wheel Service Weight
Q W L H1 H2 Steering Wheel A Single Load Wheel B Tandem Load Wheel B
(kg) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kg)
NFL25-510 2500 520 1080 65 160 Ø180X62 Ø65X100 Ø65X70 62
NFL25-712 685 1230 70
