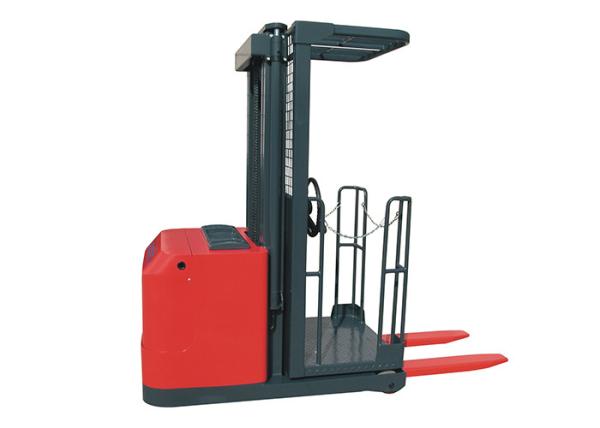

CDG Self-propelled full Electric Order Picker smooth and powerful lifting and running Capacity 500kg
CDG Self-propelled full Electric Order Picker smooth and powerful lifting and running Capacity 500kg
CDG Self-propelled full Electric Order Picker smooth and powerful lifting and running Capacity 500kg
CDG Self-propelled full Electric Order Picker smooth and powerful lifting and running Capacity 500kg
CDG Self-propelled full Electric Order Picker smooth and powerful lifting and running Capacity 500kg
CDG Self-propelled full Electric Order Picker smooth and powerful lifting and running Capacity 500kg
CDG Self-propelled full Electric Order Picker smooth and powerful lifting and running Capacity 500kg
CDG Self-propelled full Electric Order Picker smooth and powerful lifting and running Capacity 500kg
CDG Self-propelled full Electric Order Picker smooth and powerful lifting and running Capacity 500kg
CDG Self-propelled full Electric Order Picker smooth and powerful lifting and running Capacity 500kg
CDG Self-propelled full Electric Order Picker smooth and powerful lifting and running Capacity 500kg
CDG Self-propelled full Electric Order Picker smooth and powerful lifting and running Capacity 500kg
Specifications
Brand Name :
Sinolift
Model Number :
CDG
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
5000 sets/mouth
Delivery Time :
15 days
Packaging Details :
Sandard Export Package
Product Name :
CDG Self-propelled full Electric Order Picker smooth and powerful lifting and running Capacity 500kg
Load capacity :
500kg
Wheels size :
Φ140X80mm
Min. turning radius :
1920mm
Max. lifting Height :
2700mm
Loading Platform(forks)size :
800X620mm
Manned Platform size :
840X600mm
Width of Single Fork :
150mm
Pumping Power :
2.2KW/24V
Overall Dimensions :
1350X800X1800mm
Net Weight :
1230Kg
Warranty :
1 year
Description

Feature:

1. Use of high-quality drive systems and pumping stations,lifting and running is smooth and powerful.

2. Configure large-capacity traction batteries, power lasting long, durable and reliable.

3. With a seat belt, seat belt firmly connected with the roof, to ensure operator safety.

4. Apply to the Treasury, workshops, supermarkets, stadiums and other high-altitude operation or maintenance operation selected.

Specification:

Model Unit CDG500
Load capacity Kg 500
Wheels size mm Φ140*80
Wheels material PU
Min. turning radius mm 1920
Max. lifting height mm 2700
Loading platform(forks)size mm 800*620
Manned platform size(L*W) mm 840*600
width of Single fork mm 150
Lifting speed m/min 5
Lowering speed m/min 4
Pumping power KW/V 2.2/24
Batteries (traction battery) Ah/V 210/24
Driving wheel KW/V 1.2/24
Walking speed Km/h 6
Dimensions mm 1350*800*1800
Net weight Kg 1230
