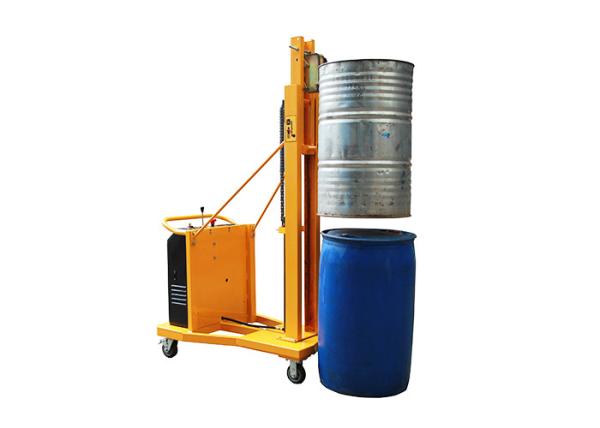

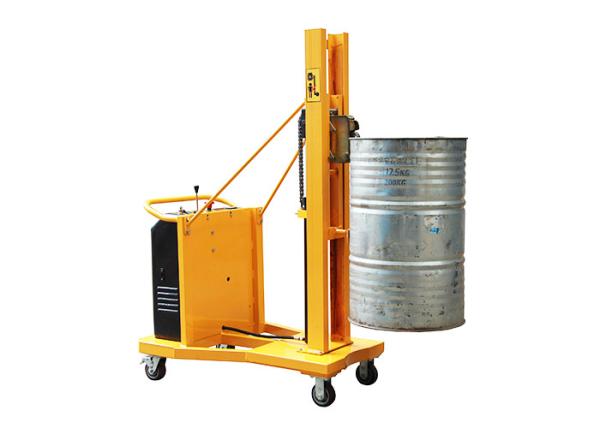

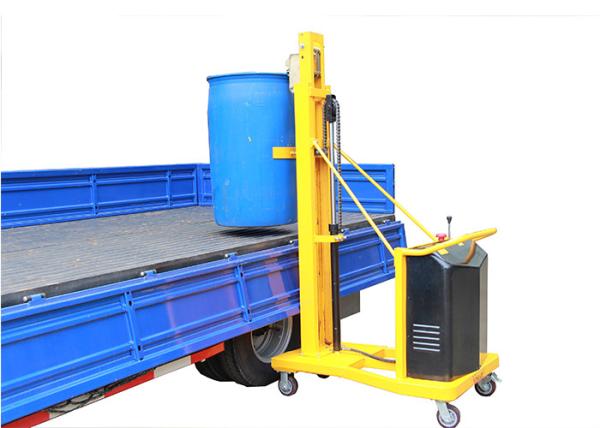

DT280 Power Counterbalance Drum Stacker Oil Drum Lifter With Capacity 280Kg
DT280 Power Counterbalance Drum Stacker Oil Drum Lifter With Capacity 280Kg
DT280 Power Counterbalance Drum Stacker Oil Drum Lifter With Capacity 280Kg
DT280 Power Counterbalance Drum Stacker Oil Drum Lifter With Capacity 280Kg
DT280 Power Counterbalance Drum Stacker Oil Drum Lifter With Capacity 280Kg
DT280 Power Counterbalance Drum Stacker Oil Drum Lifter With Capacity 280Kg
DT280 Power Counterbalance Drum Stacker Oil Drum Lifter With Capacity 280Kg
DT280 Power Counterbalance Drum Stacker Oil Drum Lifter With Capacity 280Kg
Specifications
Brand Name :
Sinolift
Model Number :
DT280
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
5000 sets/mouth
Delivery Time :
15 days
Packaging Details :
Sandard Export Package
Product Name :
DT280 Power Counterbalance Drum Stacker Oil Drum Lifter With Capacity 280Kg
Load Capacity: :
280kg
Lifting Height: :
1100mm
Overall Width: :
810mm
Net Weight: :
270kg
Overall Height: :
1880mm
Overall Length: :
1280mm
Battery :
120A/12V
Drum Diameter :
590mm
Lifting Speed :
120mm/S
Warranty :
1 year
After Service :
On-line service,Spare parts
Description

Feature:

Counter balance design without front supporting leg, thus to provide enough room for loading and unloading drums.

Suitable for close top, rimmed steel drum and plastic drums.

Adjustable arc bracket to ensure handling drums upright.

Specification:

Model DT280
Rated Load Capacity kg 280
Net Weight kg 270
Wheel Size mm 125*50
Turning Radius mm 1820
Pump Station Power kw/h 1.5
Battery Ah/V 120Ah 12V
Lifting Speed mm/s 120
Drum Diameter mm 590
Lifting Height mm 1100
Overall Length mm 1280
Overall Width mm 810
Overall Height mm 1880
