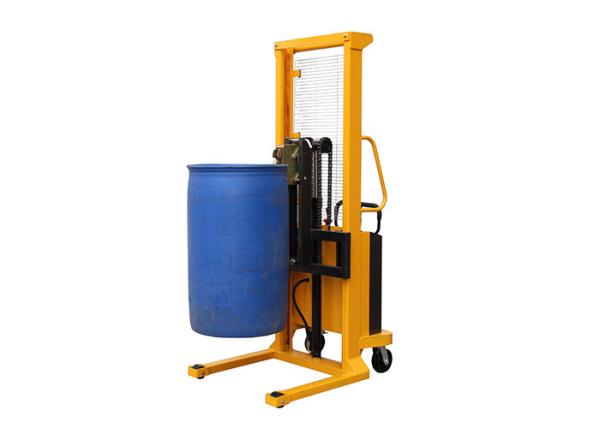

DT500 Operational Oil Drum Lifter Manual Loading Capacity 500Kg
DT500 Operational Oil Drum Lifter Manual Loading Capacity 500Kg
DT500 Operational Oil Drum Lifter Manual Loading Capacity 500Kg
DT500 Operational Oil Drum Lifter Manual Loading Capacity 500Kg
DT500 Operational Oil Drum Lifter Manual Loading Capacity 500Kg
DT500 Operational Oil Drum Lifter Manual Loading Capacity 500Kg
DT500 Operational Oil Drum Lifter Manual Loading Capacity 500Kg
DT500 Operational Oil Drum Lifter Manual Loading Capacity 500Kg
DT500 Operational Oil Drum Lifter Manual Loading Capacity 500Kg
DT500 Operational Oil Drum Lifter Manual Loading Capacity 500Kg
DT500 Operational Oil Drum Lifter Manual Loading Capacity 500Kg
DT500 Operational Oil Drum Lifter Manual Loading Capacity 500Kg
Specifications
Brand Name :
Sinolift
Model Number :
DT500
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
5000 sets/mouth
Delivery Time :
15 days
Packaging Details :
Sandard Export Package
Product Name :
DT500 Operational Oil Drum Lifter Manual Loading Capacity 500Kg
Rated Capacity :
500Kg
Max. Lifting Height :
1600mm
Acceptable Drum Type :
steel ,plastic,fiber
Powered Lifting :
Yes
Drum Tilting :
without dumping device
With Weighing Scale :
Yes
Turning Radius :
1750mm
Lifting Motor Power :
1.5KW
Battery :
12V/120Ah
Overall Size :
1200x850x2060mm
Net Weight :
228kg
Description

Feature:

Integrated functions of transporting, stacking and weighting.

Use good-quality hydraulic pump unit to provide strong driving force; maintenance-free battery provides durable power supply.

Gantry made of special-rolled industrial-manufactured C-type steel which is strong and safe.

Eagle-gripper structure, fit for operating with steel oil drum and PE oil drum;

Excellent-quality oil cylinder, high lifting speed, maximum lifting height:1600mm

Oil drum carrier is featured by its simple-and-light-structure outline design which enables single one man complete transporting, stacking and loading & unloading.

Applicable for chemical plants and food plants for transferring, loading & unloading and compounding materials of fluids, such as dyes, paintings, adhesives, petrol and edible oils, etc.

With electronic weighting device.

Specification:

Model DT500
Rated Capacity kg 500
Max. Lifting Height mm 1600
Acceptable Drum Type steel ,plastic,fiber
Powered Lifting yes/no yes
Drum Tilting (electric/manual) without dumping device
With Weighing Scale yes/no yes
Lifting Speed mm/s 120
Load Rollers Size mm Ø80x55
Steering Wheel Size mm Ø150x50
Size Between Legs(Inner/Outer) mm 640/800
Leg Length mm 630
Turning Radius mm 1750
Lifting Motor Power KW 1.5
Battery V/AH 12/120
Charger for Stacker V 12
Charger for Weighing Scale V 6
Overall Size(LxWxH) mm 1200x850x2060
Net Weight kg 228
