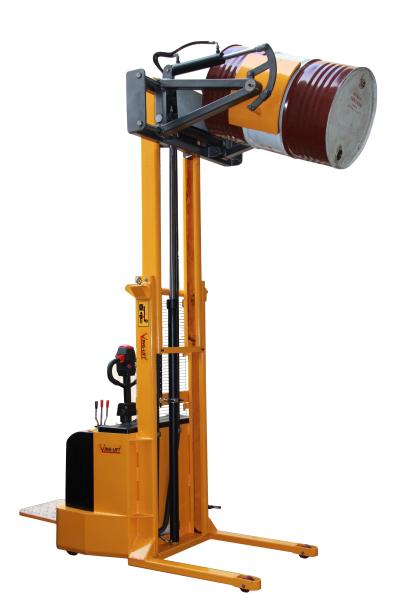

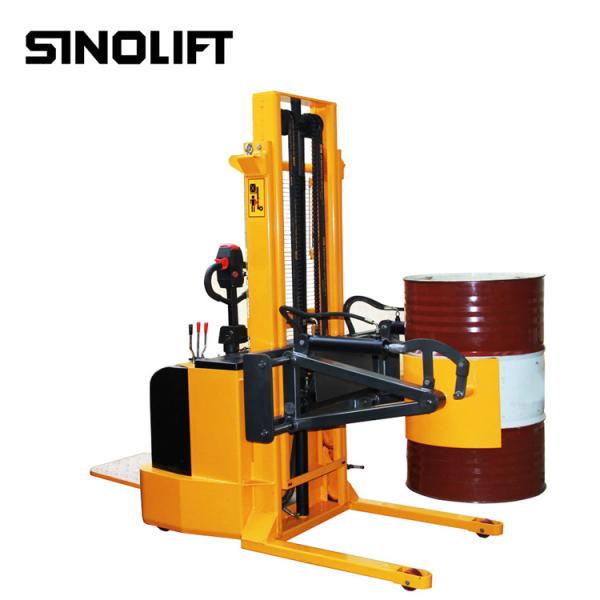

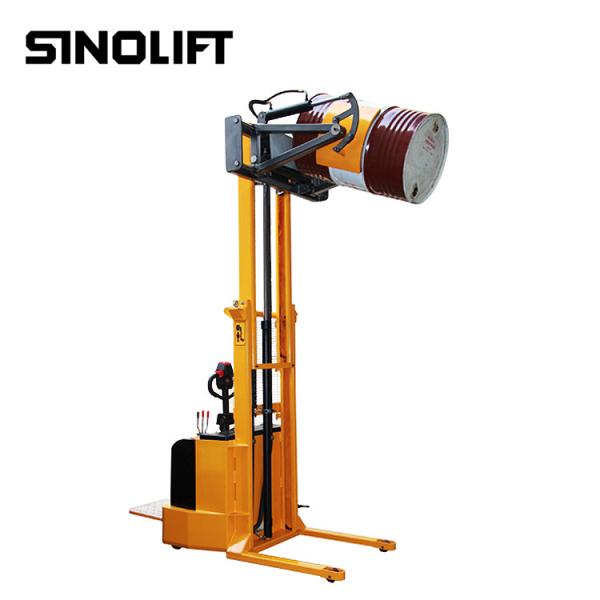

YL600 Integrated Full Electric Drum Handling Equipment With Anchor Ear Structure Load Capacity 600kg
YL600 Integrated Full Electric Drum Handling Equipment With Anchor Ear Structure Load Capacity 600kg
YL600 Integrated Full Electric Drum Handling Equipment With Anchor Ear Structure Load Capacity 600kg
YL600 Integrated Full Electric Drum Handling Equipment With Anchor Ear Structure Load Capacity 600kg
YL600 Integrated Full Electric Drum Handling Equipment With Anchor Ear Structure Load Capacity 600kg
YL600 Integrated Full Electric Drum Handling Equipment With Anchor Ear Structure Load Capacity 600kg
YL600 Integrated Full Electric Drum Handling Equipment With Anchor Ear Structure Load Capacity 600kg
YL600 Integrated Full Electric Drum Handling Equipment With Anchor Ear Structure Load Capacity 600kg
YL600 Integrated Full Electric Drum Handling Equipment With Anchor Ear Structure Load Capacity 600kg
YL600 Integrated Full Electric Drum Handling Equipment With Anchor Ear Structure Load Capacity 600kg
YL600 Integrated Full Electric Drum Handling Equipment With Anchor Ear Structure Load Capacity 600kg
YL600 Integrated Full Electric Drum Handling Equipment With Anchor Ear Structure Load Capacity 600kg
Specifications
Brand Name :
Sinolift
Model Number :
YL600
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
5000 sets/mouth
Delivery Time :
15 days
Packaging Details :
Sandard Export Package
Product Name :
YL600 Integrated Full Electric Drum Handling Equipment With Anchor Ear Structure Load Capacity 600kg
Drive Type :
Full Electric
Operating Type :
Walkie
Rated Load Capacity :
600kg
Lifting Height :
2400mm
Turning Radius :
1500mm
Overall Size :
2270x1170x1860
Controlling Type :
Electromagnetic brake
Drive Motor Power :
1.2KW
Lifting Motor Power :
2.2KW
Battery :
24V/120Ah
Charger :
24V/30A
Net Weight :
890kg
Description

Feature:

1. Power drive, lift and tilt for ergonomic 55 steel drums pouring;

2. Imported electrical vehicle exclusive walking control system;

3. Can be operated by one people, labor saving and high work efficiency;

4. Multi-man-machine control handles, stepless speed regulator, high-power reversing switch and manned pedal;

Specification:

Model 　 YL600
Drive Type 　 Full Electric
Operating Type 　 Walkie
Rated Load Capacity kg 600
Drum Size 　 30 gallon (Ø450x700), 55 gallon (Ø572x900) steel, 210L plastic
Lifting Height mm 2400
Turning Radius mm 1500
Max. Grade ability (Fully-loaded/no-loaded) % 3/5
Driving Wheel Size mm Ø250*80
Tire 　 Polyurethane
Controlling Type 　 Electromagnetic brake
Drive Motor Power KW 1.2
Lifting Motor Power KW 2.2
Noise Level db(A) <70
Battery V/Ah 24/210
Charger V/A 24/30
Rotating Range (degree) ° 140°
Overall Size mm 2270x1170x1860
Net Weight kg 890
