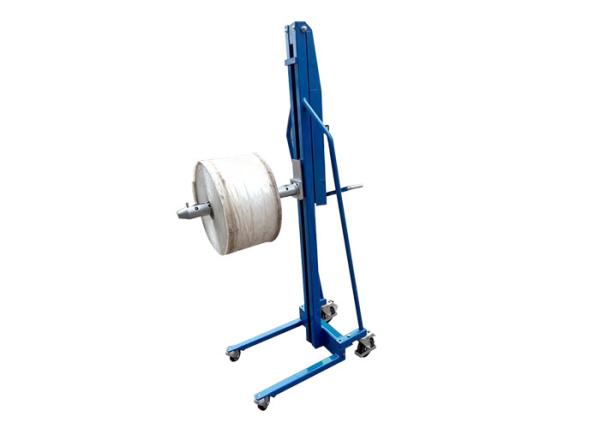

M200A Single Shaft Rod Handling Trolley For Using in Narrow Aisles Loading Capacity 200Kg
M200A Single Shaft Rod Handling Trolley For Using in Narrow Aisles Loading Capacity 200Kg
M200A Single Shaft Rod Handling Trolley For Using in Narrow Aisles Loading Capacity 200Kg
M200A Single Shaft Rod Handling Trolley For Using in Narrow Aisles Loading Capacity 200Kg
M200A Single Shaft Rod Handling Trolley For Using in Narrow Aisles Loading Capacity 200Kg
M200A Single Shaft Rod Handling Trolley For Using in Narrow Aisles Loading Capacity 200Kg
Specifications
Brand Name :
Sinolift
Model Number :
M200
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
5000 sets/mouth
Delivery Time :
15 days
Packaging Details :
Sandard Export Package
Product Name :
M200A Single Shaft Rod Handling Trolley For Using in Narrow Aisles Loading Capacity 200Kg
Load Capacity :
200Kg
Load Center :
230mm
Max. Platform Height :
1500mm
Min. Platform Height :
130mm
Min. Fork Height :
30-80mm
Support Leg Height :
110mm
Support Leg Inner Width :
370mm
Platform Size :
470X600mm
Overall Dimension :
870X600X1920mm
Net Weight :
62kg
Warranty :
1 year
Description

Feature:

A range of highly maneuverable, lightweight lifts, designed to take the strain out of any lifting job from ground level to over shoulder height.


Ideal for use in narrow aisles and confined spaces. Perfect for all applications from pharmaceutical to catering, from packing line to food processing, from warehouse to office, kitchens, laboratories, retail outlets, etc.

▲ Manual models: Operated via a manual hand winch.
Auto brake system prevents uncontrolled lowering.
▲ Quick change attachment options available.
▲ Conforms to EN1757, CE marked.

Specification:

Model M200A
Capacity (kg) 200
Load Center (mm) 230
Max. Platform Height (mm) 1500
Min. Platform Height (mm) 130 (PE) / 85 Steel
Min. Fork Height (mm) 30~80
Support Leg Height (mm) 110
Support Leg Inner Width 370(370~600)
Platform Size (mm) 470×600 (PE or Steel)
Overall Dimensions (mm) 870×600×1920
Load Wheel (mm) ø75 Universal
Steeing Wheel (mm) ø125 (PU)
Net Weight (kg) 62
