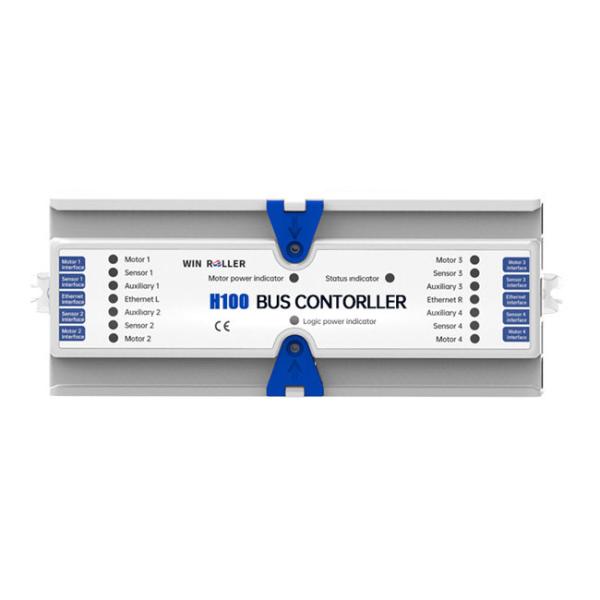

H100 ZPA Bus Controller Based On Industrial Ethernet Bus Protocol

Features Overview of H100 ZPA Bus Controller Based On Industrial Ethernet Bus Protocol

• H100 bus controller, aiming at the requirements of high-speed operation, real-time control and multi-scenario application of conveyor lines, integrates automatic generation of conveyor
• line topology and zero pressure product between sections by using edge control algorithm, bus communication and Internet of Things technology. Functions such as playback (ZPA) and one-click parameter configuration greatly shorten on-site debugging time.
• The spring-type sensor interface is used, and the power cord adopts puncture access method to facilitate on-site installation and implementation.
• The industrial Ethernet bus can transmit various motor operation and system status data, providing basic guarantee for value-added services such as statistical analysis and predictable equipment maintenance.

Motor drive and control based on industrial Ethernet bus protocol

• Support protocols such as Profinet I/O, Ethernet I/P, CC-Link IEF Basic and Modbus TCP
• 4-way motor drive and control
• channel photoelectric sensor (can be expanded to 8 channels)
• A total of 4 custom IO channels, which can be used to connect buttons, alarm lights or PLC, etc.
• Built-in ZPA control logic
• 48V/24V power supply and 24V logic power supply ASI flat line puncture access
• 4-pin sensor interface
• WIN motor dedicated interface
• Sensor NPN/PNP automatic identification
• RJ45 Ethernet interface
• Configure parameters via Ethernet or Bluetooth
• The system can be set up independently or connected to the PLC control system
