Maximum weighing capacity 300kg
Filling capacity 50-300kg/drum
Division value 100g
Accuracy level 0.2% FS (dynamic)

Working ambient temperature －10℃～55℃
Product supply pressure 0.5—1Mpa (stable)
Air supply pressure 0.4—0.6Mpa (clean and dry)
Power supply AC380V, 3 phase, 50Hz
Consumed power about 5kw

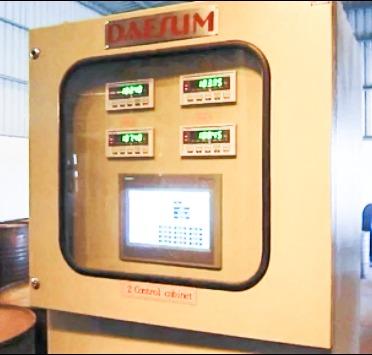

Control method auto/ manual operation by adjusting the option switch
Ex-proof level D2BT4
Protection level better than IP55

Filling container 200L standard steel drum

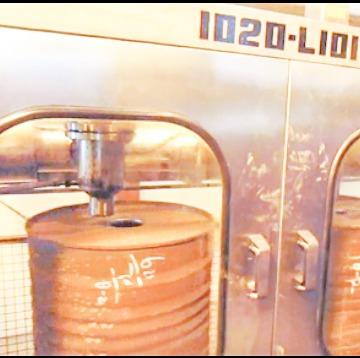

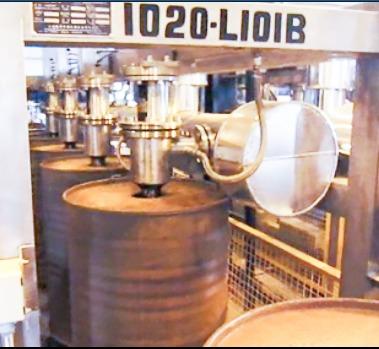

Filling type below-bunghole

The filling line is assessed with a palletizing system, which facilitates the completed drums discharge. After arriving the palletizing position, the completed drums are snatched up by the pallet gripper two at a time and located on the pallet. When the two subsequent competed drums arrive at the palletizing position, the pallet gripper would go back and repeat the transfer action. The pallet with completed drums would move to the wait-shovel roller way waiting for forklift, in the meanwhile the pallet magazine would release an empty pallet. The pallitizer is operated repeatedly.

Not applicable in this case.

Not applicable in this case.

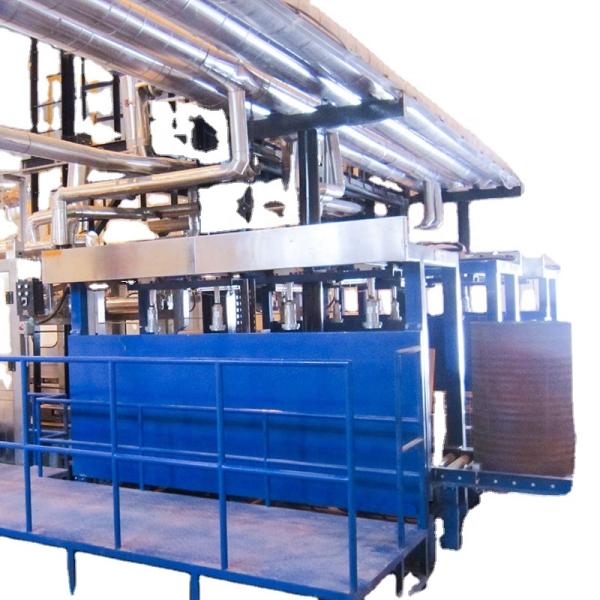

In 2012, DAESUM manufactured and exported 3 high temperature bitumen/asphalt filling lines for Pakistan Parco Company, which helps Parco create billions of value every year. Till now, all the 3 lines are still working in good condition without any machinery and safety matters.
