Specifications
machinery capacity :
80BPH
application :
Beverage, Chemical, Food
packaging type :
Cartons, Bottles, Barrel, Drums
packaging material :
plastic, Metal, Wood
automatic grade :
Automatic
driven type :
Electric
Voltage :
380V 50Hz
Place of Origin :
Shanghai, China
Brand Name :
Daesum
dimension(l*w*h) :
adjusted according to actual situation
warranty :
1 Year
key selling points :
High Safety Level
filling material :
Other, Water, Oil, Liquid, Asphalt
filling accuracy :
±0.2%
machinery test report :
Provided
video outgoing-inspection :
Provided
core components :
motor, Pump, Other, PLC, Gear, Bearing, Gearbox, Engine
Name :
200L Drum Fully automatic bitumen/asphalt filling machine
Filling capacity :
40-80 drums/hr
Accuracy :
0.1-0.2% FS
Division value :
100g
Ex-proof level :
IIBT4
Protection level :
better than IP55
Product temperature :
below 270℃
Air supply pressure :
0.4-0.6Mpa
Product supply pressure :
0.5-1Mpa
Certification :
ISO9001
Type :
Filling Machine
Condition :
New
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction works , Other
Showroom Location :
None
Warranty of core components :
1 Year
Weight :
1000 KG
MOQ :
1
Description
200L Fully Automatic High Temperature High Viscosity Bitumen/asphalt Steel Drum Filling Machine and Filling Line
200L Fully Automatic High Temperature High Viscosity Bitumen/asphalt Steel Drum Filling Machine and Filling Line
Product Description

200L automatic high temperature bitumen/asphalt filling machine and filling line


1. Introduction

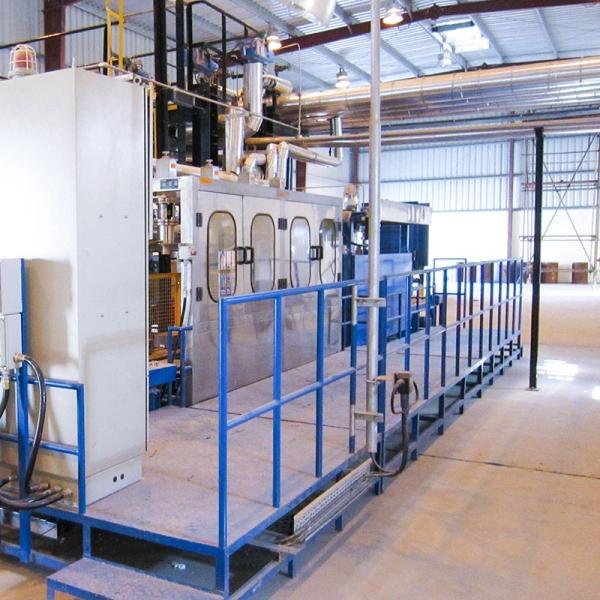

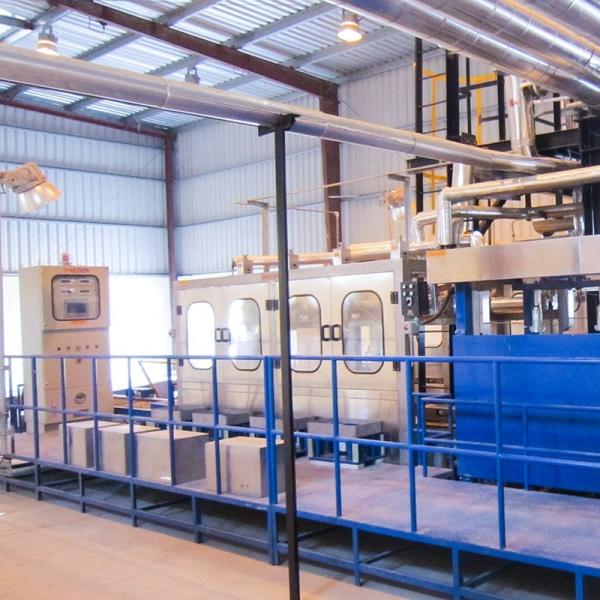

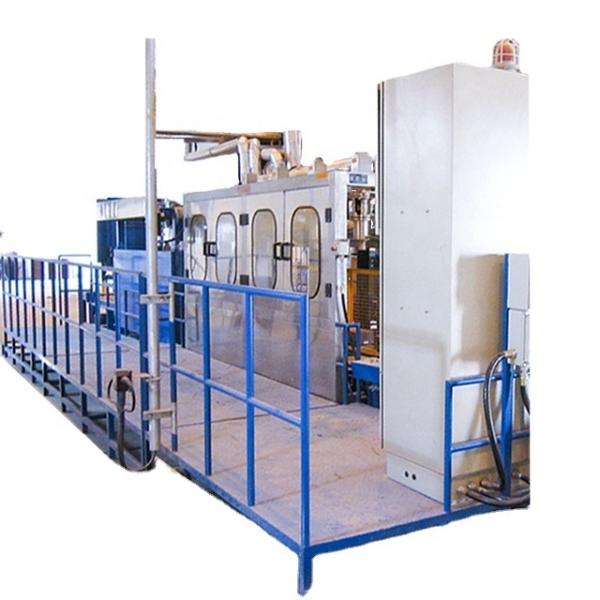

GZ200-4BSEx Ex-proof 200L drum below-bunghole fully automatic filling machine is equipped with 4 filling stations each line, which could perform empty drum infeed, bunghole positioning, filling, filled drum outfeed automatically. The machine adopts S304 hard connection pipe and valve system, featuring high integrality, heat preservation and high safety, which is appropriate for filling high temperature bitumen/asphalt product in 200L drum.
200L Fully Automatic High Temperature High Viscosity Bitumen/asphalt Steel Drum Filling Machine and Filling Line
200L Fully Automatic High Temperature High Viscosity Bitumen/asphalt Steel Drum Filling Machine and Filling Line

2. Filling nozzle

The filling nozzle uses internal-type metal-sealed bottom valve and compression-type graphite packing shaft seal, which ensures zero dripping and high temperature endurance. Besides, the filling nozzle employs casing insulation that could inlet steam or hot oil for heat tracing.

200L Fully Automatic High Temperature High Viscosity Bitumen/asphalt Steel Drum Filling Machine and Filling Line
200L Fully Automatic High Temperature High Viscosity Bitumen/asphalt Steel Drum Filling Machine and Filling Line

3. Interlock security system

In addition, the filling machine has a safety interlock system. When the drum is not in the right position or the filling nozzle does not go through the bunghole, the filling valve would not open or start filling; when the filling telescopic pipe touches the drum surface, it would retract automatically.

4. Weighing system

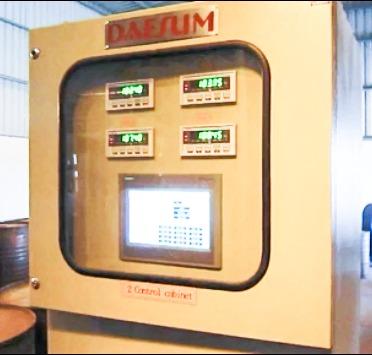

TRANSCELL stainless steel nitrogen purging sensors are embedded with the weighing platform on the filling stations. UNIPLUS instruments are installed with the control cabinets. The weighing platforms keep low with only 10cm high, which also endure high temperature.

200L Fully Automatic High Temperature High Viscosity Bitumen/asphalt Steel Drum Filling Machine and Filling Line
200L Fully Automatic High Temperature High Viscosity Bitumen/asphalt Steel Drum Filling Machine and Filling Line

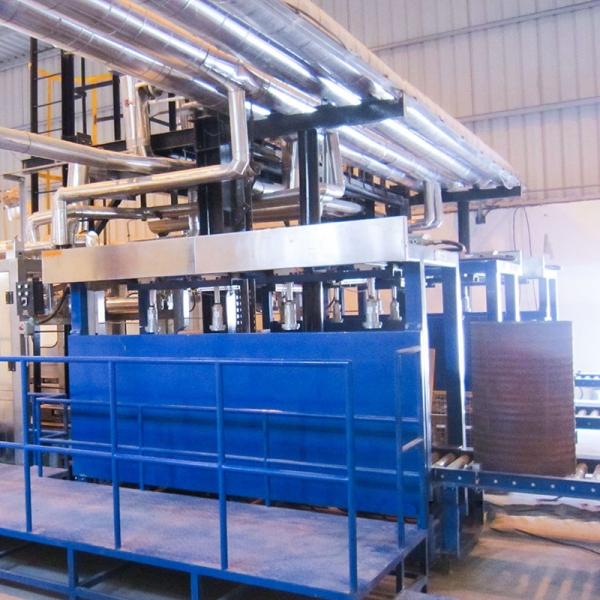

5. Roller conveyors

There are 4 parts of roller conveyors used in the system: empty drum infeed, weighing, filled drum outfeed, and filled drum wait-shovel. Apart from the filled drum wait-shovel roller conveyor, all the other roller conveyors used are power roller conveyors equipped with ex-proof motor and reduction gears. All the rollers are kept within 10cm high, improving easy and safe operation.
200L Fully Automatic High Temperature High Viscosity Bitumen/asphalt Steel Drum Filling Machine and Filling Line
Peripheral Equipment

1. Palletizing system

The filling line is assessed with a palletizing system, which facilitates the completed drums discharge. After arriving the palletizing position, the completed drums are snatched up by the pallet gripper two at a time and located on the pallet. When the two subsequent competed drums arrive at the palletizing position, the pallet gripper would go back and repeat the transfer action. The pallet with completed drums would move to the wait-shovel roller way waiting for forklift, in the meanwhile the pallet magazine would release an empty pallet. The pallitizer is operated repeatedly.

200L Fully Automatic High Temperature High Viscosity Bitumen/asphalt Steel Drum Filling Machine and Filling Line
200L Fully Automatic High Temperature High Viscosity Bitumen/asphalt Steel Drum Filling Machine and Filling Line
200L Fully Automatic High Temperature High Viscosity Bitumen/asphalt Steel Drum Filling Machine and Filling Line
200L Fully Automatic High Temperature High Viscosity Bitumen/asphalt Steel Drum Filling Machine and Filling Line

2. Capping and Sealing machine

Not applicable in this case.

3. Wrapping and Binding machine

Not applicable in this case.

Successful Case
200L Fully Automatic High Temperature High Viscosity Bitumen/asphalt Steel Drum Filling Machine and Filling Line

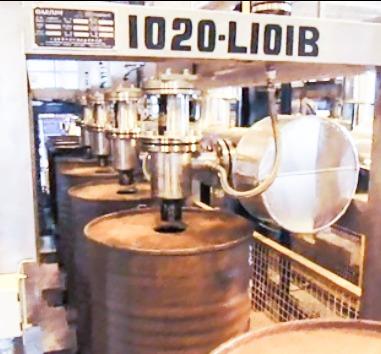

3 Bitumen/Asphalt filling lines for Pakistan Parco Company

In 2012, DAESUM manufactured and exported 3 high temperature bitumen/asphalt filling lines for Pakistan Parco Company, which helps Parco create billions of value every year. Till now, all the 3 lines are still working in good condition without any machinery and safety matters.
