200L Electric Semi-Automatic Filling Machine for Asphalt Bitumen High Temperature Liquid Ex-proof Steel Metal Motor PLC Gearbox

Specifications

application :

Chemical, petrochemical

packaging type :

Bottles, Barrel, Drum

packaging material :

Metal

automatic grade :

Automatic

driven type :

Electric

Voltage :

415V, 380V

Place of Origin :

Shanghai, China

Brand Name :

Daesum

dimension(l*w*h) :

adjusted according to actual situation

warranty :

1 Year

key selling points :

High Safety Level

filling material :

Oil, Liquid, asphalt, bitumen, chemicals

filling accuracy :

±0.2%FS

machinery test report :

Provided

video outgoing-inspection :

Provided

core components :

motor, PLC, Gear, Gearbox, Other, Ex-proof motor, Filling nozzle

filling nozzle :

2, 1, 4

After-sales Service Provided :

Video technical support, Field installation, commissioning and training, Online support, Engineers available to service machinery overseas

Weight (KG) :

8000

Filling Volume :

200L

Application :

petrochemicals

Usage :

Liquid filling

Type :

customized

Filling speed :

35-160bph

Automatic Grade :

Semi Automatic

Main material :

SS 304

Function :

Fillling

Filling Liquid :

Asphalt and bitumen

MOQ :

Description

200L semi/fully automatic Asphalt/Bitumen High temp Filling Machine Ex-proof

Equipment Description

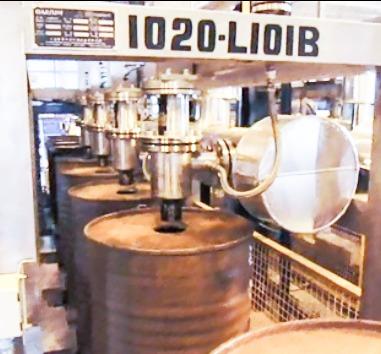

The semi-automatic equipment realizes manual matching with the gloves, the fully automatic equipment realizes auto matching with mechanical or visual type. The equipment is suitable for high -temperature and easy to solid liquid such as asphalt/bitumen or other chemicals. The equipment can be equipped with heat tracing and nitrogen purging function.

The GZ200A semi- automatic series can realize the manual barrel loading, automatic barrel feeding, automatic quantitative filling, manual capping, and manual unload of drum. The GZ200D fully automatic series can realize fully auto drum infeed, bunghole positioning, quantitative filling and drum outfeed.

Onsite installation and commissioning

1. Overseas installation and commissioning

2. Full set of operation material

3. Long time after-sales services

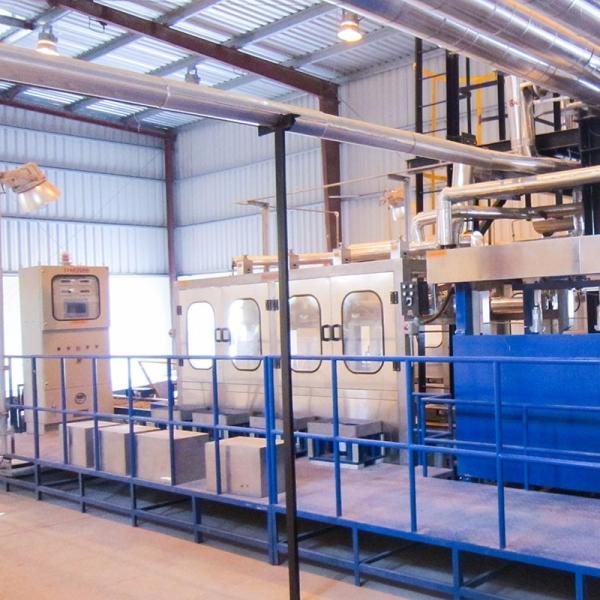

Site pipeline

1.We provide the front manual valve to connect with user's product infeed pipe, which could control the liquid flow rate and help to the filling accuracy.

Specification

Automatic Grade	Semi/Fully Automatic
Power	380/440V 50/60Hz
Air pressure	0.4-.0.6Mpa
Filling Accuracy	0.2%FS
Maximum weight	200kg
Interval	100g
Material	SS304/SS316
Container	200-220L steel drum
Filling range	200kg
Filling products	High temperature liquid such as asphalt and bitumen, other chemicals
Filling speed	35-160bph

Special Applications

DAESUM is specialized in the design and manufacture of special industrial filling, packing and dosing and mixing production line, particularly expertise in dealing with explosive, flammable, toxic, harmful, high-temperature and viscous material.

3.High-temperature and corrosive scenarios
Choose temperature-resistant and corrosion-resistant materials to make material touching parts to ensure the reliability and durability of the machine

4.Low melting point and easily solidified scenarios
The heat keeping design of the filling nozzle is adopted to prevent the material from cooling and blocking the pipeline and ensure a smooth filling path.

1.Flammable and explosive scenarios
The ex-proof and anti-static design of the whole line is adopted, the flow rate is controlled by the front-end combination valve,and the ex-proof electrical equipment of the world's first-class brand is configured to ensure production safety.

2.Toxic and harmful scenarios
The design of closed filling room and air extraction makes the filling environmentally friendly and healthy.

ISO 9001 Certificate

ISO 14001 Certificate

ISO 45001 Certificate

F&Q

1. When was Daesum first established? Where is our factory located at?

- Shanghai Daesum Science Instrument and Equipment Co., Ltd. (“DAESUM”), founded in 1997, is located in 2688 Xinghua Road, Jiading, Shanghai. The company built its own production and living site, with total GFA of 7000m². The site is composed of 5 workshops, 1 office building, and 1 complex building. The workshops occupy around 3600m² in total.

2. What kind of product do you provide?

- 1-1000L filling machines, and powder packing machines, as well as dosing and mixing production line.

3. Can you do explosion proof filling machines?

- Yes

4. What kind of service can you provide?

- We could offer preliminary customized machine design, to manufacture, to installation, to commissioning and after-sales service.

5. Where can you export?

- We export wordwide, we have exported to the USA, Mexico, Australia, Japan, Malaysia, UAE, the Philippines, Singapore, Pakistan, India, and etc.

6. If we need maintenance or meet problem, how could you help?

- Please call or email us the problem you meet, we will reply asap. If necessary, we could offer remote access to help solve the software problem. Otherwise, we would advise you the spareparts to replace the existing broken ones.

7. What kind of package would you use?

- For the entire machine, we usually make shipment in independent containers, and our staff will wrap films around the machine, then fixed it in the container.

- For spareparts, we usually send by air express with boxes.
