200L One-nozzle Automatic Mobil Oil Car Oil Drum Filling Machine

Specifications

machinery capacity :

40BPH

application :

Beverage, Chemical, Food

packaging type :

Cartons, Barrel, case, Drums

packaging material :

plastic, Metal, Wood, Other

automatic grade :

Automatic

driven type :

Electric

Voltage :

380V 50Hz

Place of Origin :

Shanghai, China

Brand Name :

Daesum

dimension(l*w*h) :

adjustable as per client request

warranty :

1 Year

key selling points :

Automatic

filling material :

Other, Oil, Liquid

filling accuracy :

±0.2FS

machinery test report :

Provided

video outgoing-inspection :

Provided

core components :

motor, Other, PLC, Gear, Bearing, Gearbox, Engine, Filling nozzle

Name :

200L single head automatic oil liquid drum filling machine

Filling capacity :

50-60 drums/hr

Accuracy :

0.1-0.2% FS

Internal value :

100g

Ambient temperature :

-10℃~45℃

Maximum weighing capacity :

300kg

Filling container :

200L standard drum

Filling product :

motor oil/ engine oil/ mobil oil

Filling type :

below-bunghole filling

Control method :

auto/semiauto

Type :

Filling Machine

Applicable Industries :

Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Printing Shops, Construction works , Other

Showroom Location :

None

Condition :

New

Marketing Type :

Ordinary Product

Warranty of core components :

1 Year

Weight :

2000 KG

MOQ :

Description

Product Description

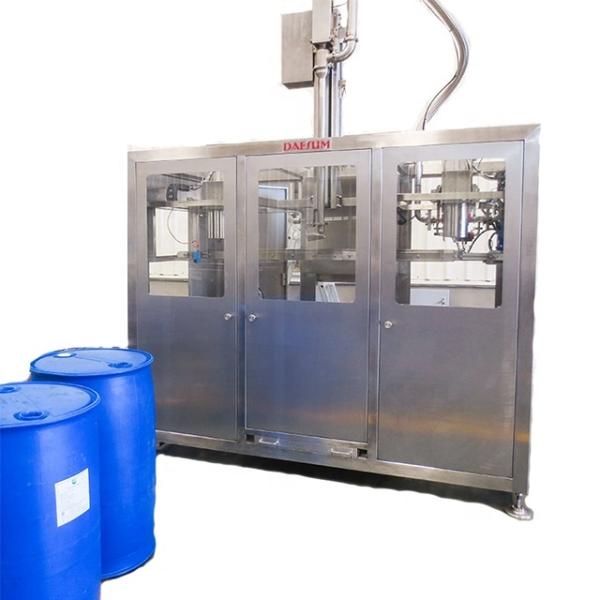

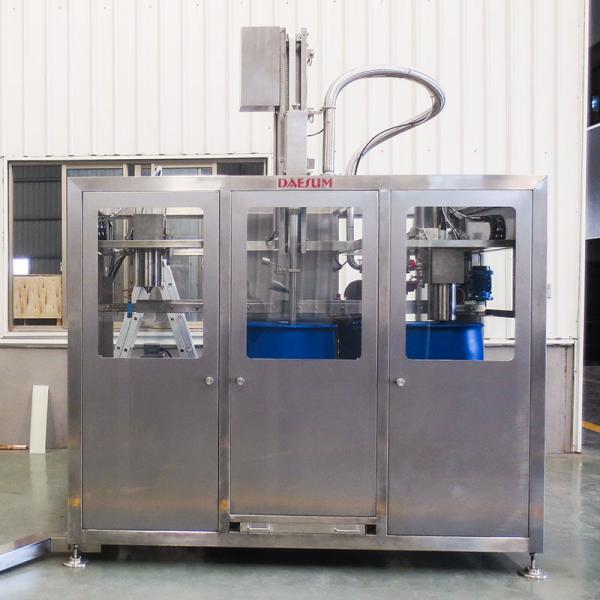

200L one-nozzle automatic mobil oil car oil drum filling machine

1. Introduction

GZ200-1CS 200L one-nozzle automatic mobil oil car oil drum filling machine is appropriate for 200L standard drum below-bunghole filling for normal viscosity liquid product. The fully automatic filling line can automatically perform empty drum infeed, positioning, bunghole positioning, unsealing and de-bunging, dosing filling, capping and sealing, filled drum outfeed and palletizing with auto filling circulation and error proofing interlock. And in the meanwhile, all the operation process can be done manually, which contributes to easy commissioning and dealing with special situation when onsite.The GZ200-1CS filing line employs gravimetric type dosing net filling, conducing to high accuracy and easy container/weight conversion.

2. Filling nozzle

The product contacting pipe and filling valve are made of S304. The filling nozzle uses internal-type metal-sealed bottom valve and compression-type Teflon packing shaft seal, which ensures zero dripping and long endurance. Filling is controlled by two-stage product infeed valve, with fast and slow filling combination valve in the front and manual slow filling adjustment valve, which ensures high filling accuracy.

3. Interlock security system

In addition, the filling machine has a safety interlock system. When the drum is not in the right position or the filling nozzle does not go through the bunghole, the filling valve would not open or start filling; when the filling telescopic pipe touches the drum surface, it would retract automatically.

4. Weighing system

TRANSCELL stainless steel nitrogen purging sensors are embedded with the weighing platform on the filling stations. UNIPLUS instruments are installed with the control cabinets. The weighing platforms keep low with only 10cm high, which also endure high temperature.

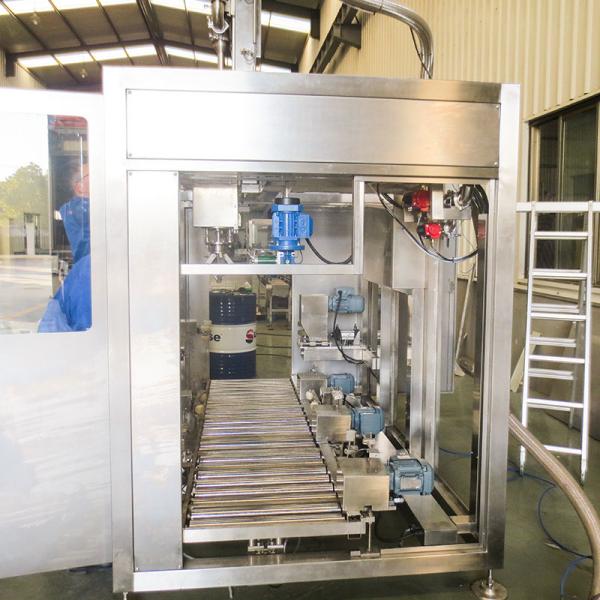

5. Roller conveyors

There are 4 parts of roller conveyors used in the system: empty drum infeed, weighing, filled drum outfeed, and filled drum wait-shovel. Apart from the filled drum wait-shovel roller conveyor, all the other roller conveyors used are power roller conveyors equipped with ex-proof motor and reduction gears. All the rollers are kept within 10cm high, improving easy and safe operation.

Technical Parameters

Maximum weighing capacity 300kg
Filling capacity 50-300kg/drum
Division value 100g
Accuracy level 0.2% FS (dynamic)

Working ambient temperature －10℃～45℃
Product supply pressure 0.1—0.3Mpa (stable)
Air supply pressure 0.6—0.7Mpa (clean and dry)
Power supply AC380V, 3 phase, 50Hz
Consumed power about 8kw
Control method auto/ manual operation by adjusting the option switch
Ex-proof level D2BT4
Protection level better than IP55

Filling container 200L standard steel drum

Filling type below-bunghole

Filling product oil/ motor oil/ engine oil/ mobil oil/ lube oil/ lubricant

Peripheral Equipment

1. Palletizing system

The filling line is assessed with a palletizing system, which facilitates the completed drums discharge. After arriving the palletizing position, the completed drums are snatched up by the pallet gripper two at a time and located on the pallet. When the two subsequent competed drums arrive at the palletizing position, the pallet gripper would go back and repeat the transfer action. The pallet with completed drums would move to the wait-shovel roller way waiting for forklift, in the meanwhile the pallet magazine would release an empty pallet. The pallitizer is operated repeatedly.

2. Capping and Sealing machine

Not applicable in this case.

3. Wrapping and Binding machine

Not applicable in this case.

Successful Case

1. Caltex Shanghai: 1 set of 200L multiple filling nozzle filling line

2. China Donghao Oil: 1 set of 8 filling ports(exchangeable) filling line

3. France Rhodia (zhangjiagang) Pty., Ltd: 2 sets of 200L automatic explosion-proof filling palletizing line.
