Advanced Portable Broadband UAV Detection Equipment With Real Time Multi Frequency Anti Drone Tracking
Advanced Portable Broadband UAV Detection Equipment With Real Time Multi Frequency Anti Drone Tracking
Specifications
Brand Name :
Polaris
Model Number :
Hobit RS1
Certification :
CE,ISO9002
Place of Origin :
Shenzhen,China
MOQ :
1
Price :
2199-3599 USD
Payment Terms :
T/T,Paypal,Etc.
Supply Ability :
50 Pcs/month
Delivery Time :
In 7 -14 works day
Packaging Details :
Durable case or box
Detection Bands :
300MHz-6200MHz
Detection Distance :
≥1km
Direction Finding Accuracy :
≤5°
Identify type :
OFDM
Working time :
more than 4 hours
Upgrade and data export interface :
type-c
Description

Advanced Portable Broadband UAV Detection Equipment With Real Time Multi Frequency Anti Drone Tracking


Introduction

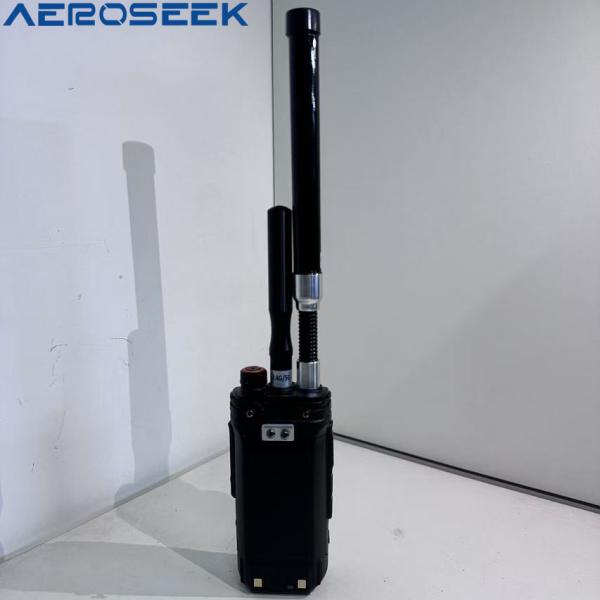

This portable broadband drone detector features a low-power, highly integrated design. It can identify mainstream rotary-wing drones—such as those from DJI and Daotong—that use OFDM high-definition image transmission, as well as a range of DIY drones utilizing analog image transmission signals.
Equipped with dual antennas and multi-channel simultaneous scanning, the device boasts rapid detection speed, high sensitivity, extended detection range, low false alarm rates, strong scalability, and user-friendly operation.


Parameters


Function

Description

Receiving frequency band

300MHz-6200MHz

Detecting distance

≥1km

Detection sensitivity

Better than -96dBm

Detecting alarm methods

Headphones, sound and light

Log recording

Support no less than 500 alarm records

Upgrade and data export interface

type-c

power supply

Detachable lithium battery (Type-C charging)

Battery life

≥ 6 hours (single battery)

structure size

≤ 135mm × 60mm × 35mm (host without antenna)

Working weight

≤ 500g (including single battery)


Detailed Showcase

Advanced Portable Broadband UAV Detection Equipment With Real Time Multi Frequency Anti Drone Tracking

LCD Display Icon Description

Icon

describe
Advanced Portable Broadband UAV Detection Equipment With Real Time Multi Frequency Anti Drone Tracking
The numerical value displayed in the upper left corner of the screen indicates the device time

Device mute displayed in the upper right corner of the screen

The device battery level is displayed in the upper right corner of the screen

Display the detected types of drones
Advanced Portable Broadband UAV Detection Equipment With Real Time Multi Frequency Anti Drone Tracking
Display the detected drone frequency
Advanced Portable Broadband UAV Detection Equipment With Real Time Multi Frequency Anti Drone Tracking
Display the detected drone frequency intensity values
Advanced Portable Broadband UAV Detection Equipment With Real Time Multi Frequency Anti Drone Tracking
The red display of the detected spectrum range indicates that a drone has been detected at this frequency


Device operation and maintenance

1 Appearance inspection

  • Plastic surface and screen: Regularly check for cracks, scratches, or dirt, and clean the surface with a soft cloth and appropriate cleaning agent.
2 Battery maintenance
  • Regularly charge and discharge to avoid prolonged periods of fully charged or empty state, in order to extend battery life.
  • Monitor the health status of the battery. If the battery life is significantly reduced, replacement should be considered.
  • Avoid storing batteries in high or low temperature environments for extended periods of time.
3 Battery charger
  • Regularly inspect the adapter cables and plugs for damage.
4 functional testing
  • Regularly test the various functions of the equipment to ensure normal operation.
5 Safety precautions
  • Use original or certified accessories.
  • Avoid using the equipment under humid or extreme temperature conditions.
  • Regularly check the equipment for any abnormal phenomena such as overheating and odor.
