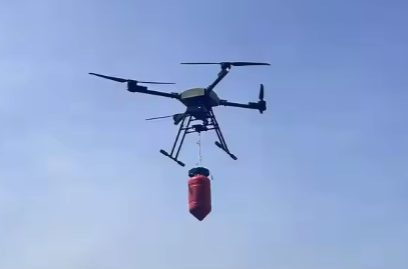

Drone Fire-extinguishing Bomb Throwing Equipment

1. Basic Specifications

2. Performance Parameters

• Load Capacity: The middle 2 hooks have a maximum load capacity of 80kg, and the four-corner hooks have a maximum load capacity of 50kg, which can be adapted to different types of fire-extinguishing bombs with varying weights.
• Operating Environment: Supports stable operation within the temperature range of -20℃ ~ 45℃, adapting to complex fire site environments such as high and low temperatures.
• Power Consumption: The peak power is ≤60w, and the low-energy design can reduce the impact on UAV endurance.

3. Core Functions and Operational Advantages

• Delivery Control: Adopts sequential electronic control for delivery, supporting single-route or multi-route combined delivery at a time, and can precisely control the coverage range of fire-extinguishing bombs according to the fire situation.
• Detonation Height Control: Supports obtaining the ground height information from the aircraft's built-in radar, with a height measurement range of 1m ~ 50m, ensuring that the fire-extinguishing bombs detonate accurately at the preset height to maximize the fire-extinguishing effect.
• Communication and Compatibility:
  • The communication link integrates DJI UAV link, and the control distance is consistent with the UAV communication distance, ensuring the stability of remote operation.
  • Compatible with DJI FlyCart 100's E-Port Lite communication interface and aerial lifting system power supply interface, with strong installation compatibility.
  • The control method adopts PSDK, supporting seamless collaboration with the UAV system.
  • The fire-extinguishing bomb communication interface is equipped with 1~4 four-core aviation sockets to meet the connection needs of multiple devices.

4. Safety Assurance

• Equipped with a safety switch, which can display the bomb status in real-time on the remote controller, ensuring operational controllability.
• Multiple safety designs prevent mis-triggering, ensuring the safety of personnel and equipment during operations.
