IP4X Drone Spot Lights 60W DJI Drone Spotlight 8000 Lumens
IP4X Drone Spot Lights 60W DJI Drone Spotlight 8000 Lumens
IP4X Drone Spot Lights 60W DJI Drone Spotlight 8000 Lumens
IP4X Drone Spot Lights 60W DJI Drone Spotlight 8000 Lumens
Specifications
Brand Name :
AOISUN
Model Number :
T60
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T
Delivery Time :
2 week
Packaging Details :
case
Name :
Drone Spot Lights
Electrical interface :
DJI SDK
Size :
91.4 x 88.5 x 62.2mm
Weight :
190g
Degree protection :
IP4X
Supported models :
Matrice 30
Most power :
60W
Lighting mode :
Matrix lamp
Lighting angle :
16°
Description

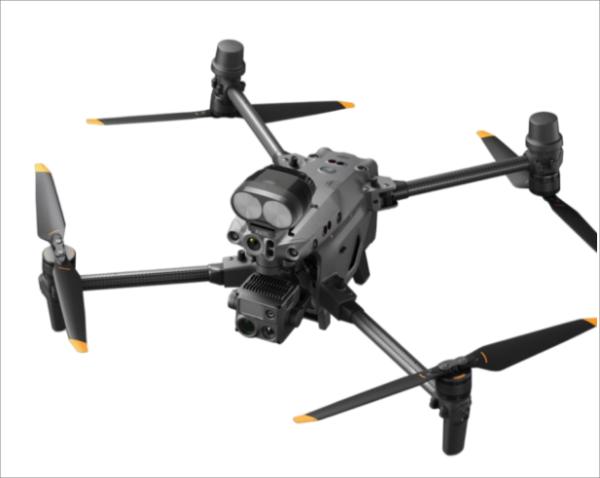

DJI Matrice 30 Drone Spotlights Searchlights

The DJI Matrice 30 drone searchlight is a high-performance illumination payload developed based on the DJI SDK and fully compatible with the DJI M30 platform. Equipped with dual optical lens groups, it outputs a uniform 16° light beam, delivering a lighting distance of over 150 meters and illuminating an area of more than 150㎡ at a 50-meter flight height.

Designed with a standard quick-release mount and an actively controllable gimbal, the searchlight can synchronize its angle with the DJI M30 camera. It supports full DJI Pilot control, including brightness adjustment, burst-flash mode, and more, making it ideal for night inspections, law enforcement, emergency response, and search-and-rescue missions.

Features

  • DJI SDK Payload — Fully controlled and operated through DJI Pilot.

  • Quick-release mounting bracket — Fast, tool-free installation.

  • 8000-lumen output — Lighting coverage up to 1400㎡, lighting distance 150 m.

  • One-key power control — Supports adjustable brightness for long-range illumination and target search.

  • Burst-flash mode — Adjustable burst brightness and flashing frequency.

  • Controllable gimbal — Supports 0° to –85° pitch angle and synchronous movement with the M30 camera gimbal.

  • High-speed cooling fan — Intelligent temperature-based speed adjustment for efficient thermal management.

Specs

Product DJI M30 searchlight
Electrical interface DJI SDK
Size 91.4 x 88.5 x 62.2mm
Weight 190g
Degree protection IP4X
Supported models Matrice 30
Most power 60W
Lighting mode Matrix lamp
Lighting angle 16°
Gimbal 0-85°Controllable Gimbal
Installation mode Fit standard quick release bracket
Working temperature -10 ℃ ~ 50 ℃
Storage temperature -20 °C ~ 60 °C
Lighting distance 50m 100m 150m
Lighting area 150m² 620m² 1400m²
Central illuminance 46Lux 13Lux 7Lux
