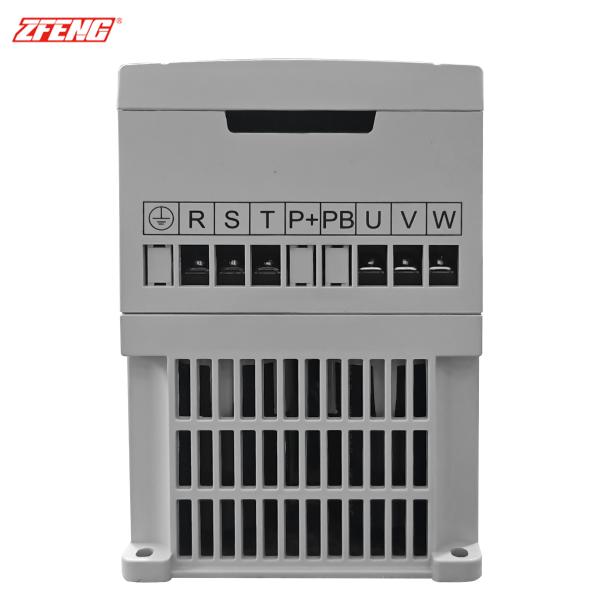

ACI 210 Series Low Voltage Vector Inverter 200V-240V For Solar Pumping Systems With High Efficiency
ACI 210 Series Low Voltage Vector Inverter 200V-240V For Solar Pumping Systems With High Efficiency
ACI 210 Series Low Voltage Vector Inverter 200V-240V For Solar Pumping Systems With High Efficiency
ACI 210 Series Low Voltage Vector Inverter 200V-240V For Solar Pumping Systems With High Efficiency
ACI 210 Series Low Voltage Vector Inverter 200V-240V For Solar Pumping Systems With High Efficiency
ACI 210 Series Low Voltage Vector Inverter 200V-240V For Solar Pumping Systems With High Efficiency
Specifications
Brand Name :
ACI
Model Number :
210 Series
Certification :
CE、CB、CCC、ISO9001、ISO14001、ISO45001、EN61439、EN61000
MOQ :
1pc
Price :
USD $85
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
500-10000 per Month
Delivery Time :
3 Days
Packaging Details :
Carton and plywood box packaging
Control Mode :
SVC、V/F
Nominal Voltage :
220V
Power Phase Number :
Single/Three Phase
Working Temperature :
-10 ~ 50℃
Matching Motor Power :
0.75 ~ 30kW
Description
ACI 210 Series Low Voltage Vector Inverter 200V-240V For Solar Pumping Systems With High Efficiency

This Low Voltage Vector Inverter (200V-240V) is designed for solar pumping systems, combining vector control technology and high-efficiency MPPT algorithms to optimize energy conversion and motor performance. Compatible with single/three-phase 200V-240V AC grids and DC solar inputs (up to 400V), it ensures stable operation of submersible, centrifugal, and axial flow pumps in irrigation, desert greening, and water supply applications. Its robust protection features and adaptive control make it ideal for remote solar-powered environments.

Core Specifications
Parameter Details
AC Input Voltage 200V-240V AC (Single/Three-phase, ±10% tolerance)
DC Input Voltage 200V-480V
Output Power 0.75kW-30kW (Typical models: 2.2kW, 7.5kW, 30kW)
Control Modes Sensorless Vector Control (SVC),
Speed Range 0-500Hz (Adjustable)
Overload Capacity 150% rated current for 1 minute (Heavy Duty)
Protection Dry-Run, Overvoltage, Undervoltage, Short Circuit, Thermal Protection
Communication RS-485
Enclosure Rating IP20 (Standard), IP54 (Optional)
Installation & Maintenance
1. Installation Guidelines
  • Mounting: Wall-mounted or pole-mounted, with ≥30cm clearance for ventilation.
  • Wiring:
    • Use shielded cables for solar DC inputs to reduce interference.
    • Separate power and control circuits.
  • Commissioning: Auto-tuning for motor parameters (resistance, inductance) ensures optimal control.
2. Maintenance
  • Routine Checks: Clean cooling fins quarterly, inspect DC terminals for corrosion.
  • Firmware Updates: USB/GPRS interface allows parameter backup and firmware upgrades.
  • Diagnostics: Real-time fault codes and historical data via HMI or cloud platforms.
