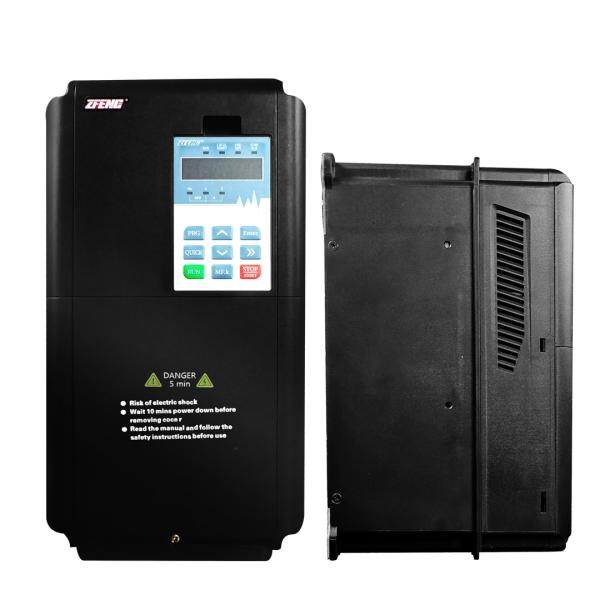

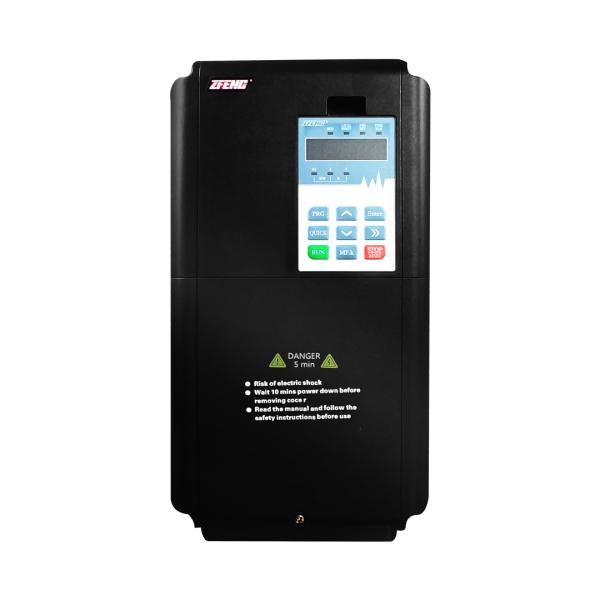

A servo frequency drive combines advanced frequency control with servo motor technology to deliver precise motion control in industrial automation. These drives excel in applications demanding accuracy, dynamic response, and efficiency.

• Controller :
  • Uses closed-loop control (e.g., PID, adaptive control, or model predictive control) to adjust motor parameters in real time.
  • Processes feedback from sensors (encoders, resolvers) to maintain position, velocity, or torque accuracy.
• Power Stage :
  • Employs high-efficiency power electronics (IGBTs, SiC/GaN semiconductors) for rapid switching and minimal losses.
  • Regulates voltage/frequency to optimize motor performance under varying loads.
• Feedback Devices :
  • High-resolution encoders (absolute/incremental) or resolvers provide sub-micron positional accuracy.
  • Real-time error correction ensures minimal deviation from setpoints.

• Dynamic Response :
  • Bandwidth exceeding 1-2 kHz enables rapid acceleration/deceleration (e.g., robotic arms in pick-and-place systems).
  • Low settling time (<1 ms) and minimal overshoot ensure smooth transitions.
• Precision Metrics :
  • Positioning accuracy: ±1 count (encoder-dependent).
  • Velocity ripple: <0.01% for steady-state operation.
• Integration :
  • Supports industrial protocols (EtherCAT, PROFINET, Powerlink) for seamless communication with PLCs/SCADA systems.
  • Safety features like STO (Safe Torque Off) comply with IEC 61800-5-2.

• Closed-Loop Dominance :
  • Compares commanded vs. actual positions to adjust PWM signals, ensuring precision even under load disturbances.
• Advanced Algorithms :
  • Feedforward control anticipates disturbances (e.g., inertia mismatches).
  • AI/ML-based adaptive control adjusts parameters dynamically for nonlinear systems (e.g., CNC machining).

• CNC Machining : Nanometer-level precision in semiconductor wafer processing.
• Robotics : High-speed trajectory tracking in collaborative robots (cobots).
• Packaging : Ultra-fast conveyor synchronization with fill/seal stations.
• Renewable Energy : Pitch control in wind turbines for optimal power capture.

• Advantages :
  • 30-50% energy savings vs. traditional drives.
  • Reduced downtime via predictive maintenance (IoT-enabled vibration/temperature monitoring).
  • Enhanced productivity through faster cycle times.

• Power Semiconductors : Wide-bandgap devices (SiC/GaN) enable higher switching frequencies (>100 kHz) and efficiency (>99%).
• Edge Computing : On-drive AI processors enable local decision-making, reducing latency.
• Digital Twins : Simulation-driven commissioning reduces setup time by 40%.

High-performance servo frequency drives are pivotal in modern industrial automation, offering unmatched precision and adaptability. Advances in power electronics, control algorithms, and connectivity continue to push boundaries, making them indispensable for applications requiring sub-micron accuracy and millisecond-level responsiveness.
