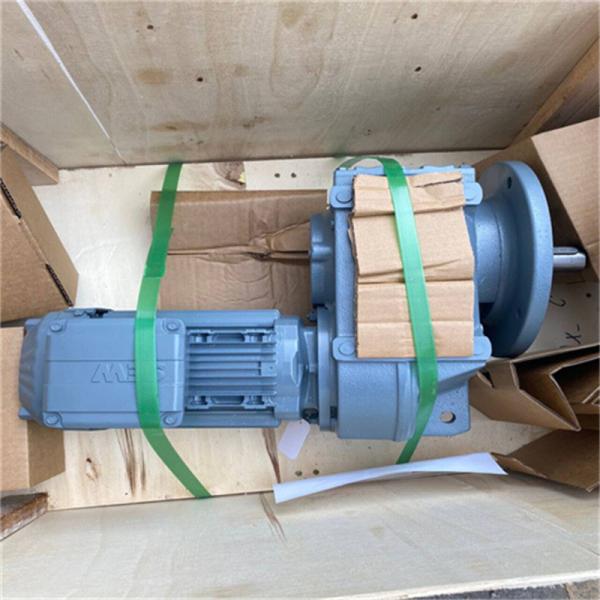

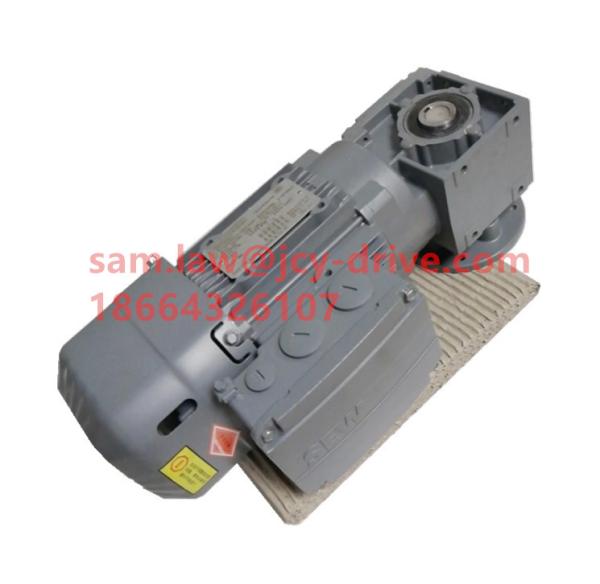

Custom Helical Gear Unit Variable Speed Gearmotor RF77 DRN100LS4
Custom Helical Gear Unit Variable Speed Gearmotor RF77 DRN100LS4
Custom Helical Gear Unit Variable Speed Gearmotor RF77 DRN100LS4
Custom Helical Gear Unit Variable Speed Gearmotor RF77 DRN100LS4
Specifications
Brand Name :
SEW
Model Number :
RF77 DRN100LS4/ES7C/V
Certification :
CE/3C
Place of Origin :
CHINA
MOQ :
1
Price :
Discussed
Payment Terms :
T/T, Western Union
Supply Ability :
1000000 pieces/year
Delivery Time :
3-5 WORK DAYS
Packaging Details :
Standard wooden packing
Motor power [kW :
2.2
Catalog designation :
RF77 DRN100LS4/BE5
Overall gear ratio :
36.83
Rated motor speed [1/min :
1450
Description

▶▶▶Description:

Helical gearmotors

Covering 6 specifications of single-stage reducers and 14 specifications of 2-stage and 3-stage reducers, the R series of helical gear reduction motors perfectly meet the requirements of power and installation space.

R series helical gearmotors hard surface reducer
✪●✪
Product size&Technical data
Gear unit size R17 R27 R37 R47 R57 R67 R77
Motor Power(KW) 0.09-0.75 0.12-3 0.12-3 0.12-5.5 0.12-7.5 0.12-7.5 0.18-11
gear ratio range 3.83-81.64 3.37-135.09 3.41-134.82 3.83-176.88 4.59-186.89 4.29-199.81 5.31-195.24
Mamax Gear unit(Nm) 85 130 200 300 450 600 820
　 　 　 　 　 　 　 　



Custom Helical Gear Unit Variable Speed Gearmotor RF77 DRN100LS4
▶▶▶Features


R series (multi-stage)
•Optimum ratio between performance and space requirements thanks to 15 sizes
•Finely stepped gear unit ratios up to i = 289.74; or i = 27,001 for double gear units
•Available in foot or flange-mounted design
•Also available with reduced backlash


▶▶▶Production details

Catalog designation RF77 DRN100LS4
Product Helical gearmotors R..DRN.. (IE3)
Product data 　
Speed 50Hz [r/min] 1450 / 39
Total ratio [i] 36,83
Ma max [Nm] 820
Output torque 50Hz [Nm] 535
Service factor SEW-FB 1,55
Mounting position M1
ISO code CLP 220
Lubricant type Miner.Oil
Lubricant volume [l] 1,20
Motor power [kW] 2.2
Motor frequency [Hz] 50
Cyclic duration factor S1-S10 S1
Voltage range [V] 220-230 delta/380-400 star
Nominal current [A] 8,40 / 4,85
cos phi 0,76
Thermal cl.[°C]/Enclosure[IP] 155(F) / 55


▶▶▶ SEW reducer R series helical gear reducer
Gear transmission efficiency up to 98%, low vibration, low noise
Solid shaft, flange or footing mounting, can be used as the input stage part of the multi-stage reduction box
out speed (rpm): 0.05rpm - 1829rpm
Torque range(Nm)/Power range(KW): 50Nm - 18,000 Nm/ 0.09KW - 160 kW



Custom Helical Gear Unit Variable Speed Gearmotor RF77 DRN100LS4
▶▶▶FAQ

Q: What documents are available?
A:A full range documents including structural drawings, packing list, installation manual and relative certificates can be provided. Moreover, customs declaration is provided. We provide one-stop service for you.
