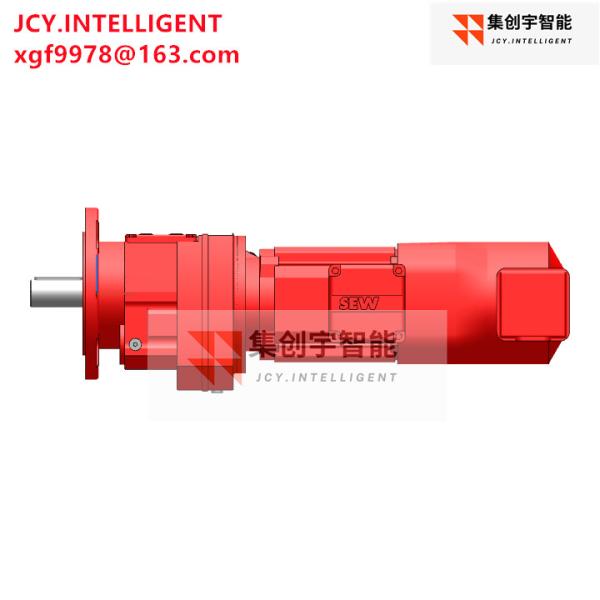

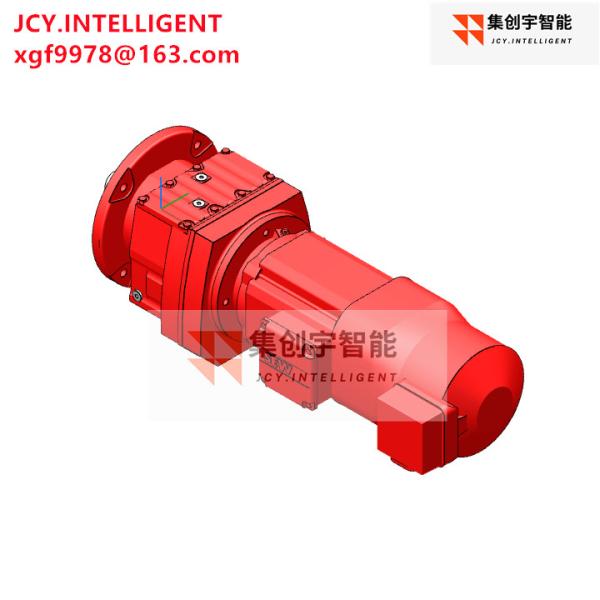

OEM Right Angle Helical Bevel Gearbox SEW DRN100LS4
OEM Right Angle Helical Bevel Gearbox SEW DRN100LS4
OEM Right Angle Helical Bevel Gearbox SEW DRN100LS4
OEM Right Angle Helical Bevel Gearbox SEW DRN100LS4
OEM Right Angle Helical Bevel Gearbox SEW DRN100LS4
OEM Right Angle Helical Bevel Gearbox SEW DRN100LS4
Specifications
Brand Name :
SEW
Model Number :
RF77 DRN100LS4/ES7C/V
Certification :
CE/3C
Place of Origin :
CHINA
MOQ :
1
Price :
Discussed
Payment Terms :
T/T, Western Union
Supply Ability :
1000000 pieces/year
Delivery Time :
3-5 WORK DAYS
Packaging Details :
Standard wooden packing
Motor power [kW :
2.2
Catalog designation :
RF77 DRN100LS4/ES7C/V
Overall gear ratio :
36.83
Rated motor speed [1/min :
1450
Output torque 50Hz [Nm :
9
Weight [kg :
67
Description

▶▶▶Description:

Helical gearmotors

Covering 6 specifications of single-stage reducers and 14 specifications of 2-stage and 3-stage reducers, the R series of helical gear reduction motors perfectly meet the requirements of power and installation space.

R series helical gearmotors hard surface reducer
✪●✪
Product size&Technical data
Gear unit sizeR17R27R37R47R57R67R77
Motor Power(KW)0.09-0.750.12-30.12-30.12-5.50.12-7.50.12-7.50.18-11
gear ratio range3.83-81.643.37-135.093.41-134.823.83-176.884.59-186.894.29-199.815.31-195.24
Mamax Gear unit(Nm)85130200300450600820
　　　　　　　　
Gear unit sizeR87R97R107R127R137R147R167
Motor Power(KW)0.25-300.25-372.2-452.2-555.5-909.2-909.2-200
gear ratio range5.3-246.544.5-289.744.92-251.155.55-262.655.15-222.605.00-163.3110.24-229.71
Mamax Gear unit(Nm)155030004300600080001300018000
　　　　　　　　



OEM Right Angle Helical Bevel Gearbox SEW DRN100LS4
▶▶▶Features

RX series (single-stage)
•Highly efficient helical gear units in 6 sizes
•High output speed, up to 830 Nm
•Gear unit ratios up to i = 8.65
•Available in foot or flange-mounted design
R series (multi-stage)
•Optimum ratio between performance and space requirements thanks to 15 sizes
•Finely stepped gear unit ratios up to i = 289.74; or i = 27,001 for double gear units
•Available in foot or flange-mounted design
•Also available with reduced backlash


▶▶▶Production details

Catalog designationRF77 DRN100LS4/ES7C/V
ProductHelical gearmotors R..DRN.. (IE3)
Product data　
Speed 50Hz [r/min]1450 / 39
Total ratio [i]36,83
Ma max [Nm]820
Output torque 50Hz [Nm]535
Service factor SEW-FB1,55
Mounting positionM1
ISO codeCLP 220
Lubricant typeMiner.Oil
Lubricant volume [l]1,20
Motor power [kW]2.2
Motor frequency [Hz]50
Cyclic duration factor S1-S10S1
Voltage range [V]220-230 delta/380-400 star
Nominal current [A]8,40 / 4,85
cos phi0,76
Thermal cl.[°C]/Enclosure[IP]155(F) / 55
International efficiency classIE3
Efficiency (100% Pn) [%]86,9
Design specificationIEC 60034
K.V.A.codeJ
China Efficiency ClassGrade 3
Ambient temperature min. [°C]-20
Ambient temperature max. [°C]40
NameplateEnglish
Weight67.00 kg


▶▶▶ SEW reducer R series helical gear reducer
Gear transmission efficiency up to 98%, low vibration, low noise
Solid shaft, flange or footing mounting, can be used as the input stage part of the multi-stage reduction box
out speed (rpm): 0.05rpm - 1829rpm
Torque range(Nm)/Power range(KW): 50Nm - 18,000 Nm/ 0.09KW - 160 kW



OEM Right Angle Helical Bevel Gearbox SEW DRN100LS4
▶▶▶FAQ
Q: Can you print other colors?
A:Yes. Customized color can be printed on the gear motor according to your requirements.

Q: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to accept trial order for quality testing.
