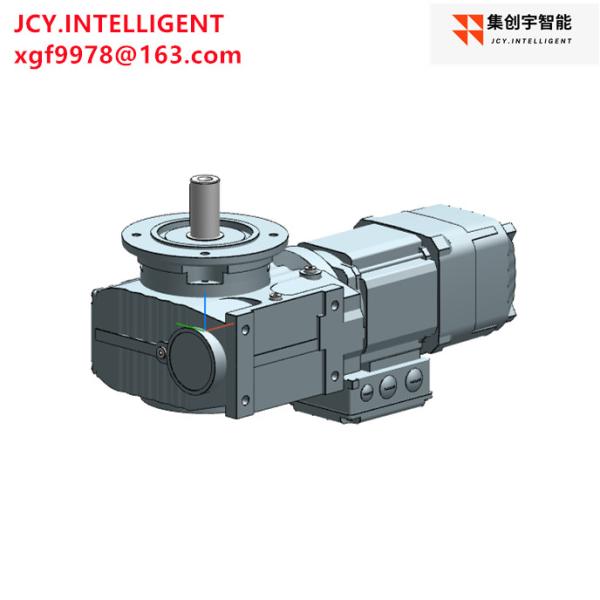

375NM Drive Helical Motor Gear Unit 0.55KW 158.45 300 Rpm
375NM Drive Helical Motor Gear Unit 0.55KW 158.45 300 Rpm
375NM Drive Helical Motor Gear Unit 0.55KW 158.45 300 Rpm
375NM Drive Helical Motor Gear Unit 0.55KW 158.45 300 Rpm
375NM Drive Helical Motor Gear Unit 0.55KW 158.45 300 Rpm
375NM Drive Helical Motor Gear Unit 0.55KW 158.45 300 Rpm
Specifications
Brand Name :
SEW
Model Number :
SF67 DRN80MK4/BE1
Certification :
CE/3C
Place of Origin :
CHINA
MOQ :
1
Price :
Discussed
Payment Terms :
T/T, Western Union
Supply Ability :
1000000 pieces/year
Delivery Time :
3-5 WORK DAYS
Packaging Details :
Standard wooden packing
Catalog designation :
SF67 DRN80MK4/BE1
Output speed [1/min :
9.1
Motor power [kW :
9
Overall gear ratio :
158.45
Motor frequency [Hz :
9
Weight [kg :
46
Description

▶▶▶Description:

Helical-worm gearmotors
Due to their design and from being combined with a helical gear stage, the helical-worm gearmotors S..DR.. have particularly high efficiency. They are also extremely low-noise and thus avoid high noise emission levels.

Low-noise continuous operation: gear unit combination optimized with respect to efficiency

S series Helical-worm gearmotors
✪●✪
Product size&Technical data
Gear unit sizeS37S47S57S67
Motor Power(KW)0.12-30.12-30.12-7.50.12-7.5
gear ratio range3.98-106.384.64-131.874.69-145.145.2-144.79
Mamax Gear unit(Nm)200400600820
　　　　　
Gear unit sizeS77S87S97　
Motor Power(KW)0.12-150.25-300.75-37　
gear ratio range7.24-192.187.21-197.377.54-176.05　
Mamax Gear unit(Nm)155027004300　




375NM Drive Helical Motor Gear Unit 0.55KW 158.45 300 Rpm
▶▶▶Features

Helical-worm gear units
•Helical-worm combinations with significantly better efficiency than single helical-worm gear units
•Very low-noise operation
•Available variants:
•Foot- or flange-mounted
•B5 or B14 flange-mounted
•Solid or hollow shaft
•Hollow shaft with keyed connection, shrink disk, splined hollow shaft, or TorqLOC®

Catalog designationSF67 DRN80MK4/BE1
ProductHelical-worm gearmotors S..DRN.. (IE3)
Product data　
Speed 50Hz [r/min]1435 / 9.1
Total ratio [i]158,45
Ma max [Nm]520
Output torque 50Hz [Nm]375
Service factor SEW-FB1,40
Mounting positionM6A
ISO codeCLP 680
Lubricant typeMiner.Oil
Lubricant volume [l]2,60
Motor power [kW]0.55
Motor frequency [Hz]50
Cyclic duration factor S1-S10S1
Voltage range [V]220-240 delta/380-415 star
Nominal current [A]2,30 / 1,32
cos phi0,75
Thermal cl.[°C]/Enclosure[IP]155(F) / 55
International efficiency classIE3
Efficiency (100% Pn) [%]80,8
China Efficiency ClassGrade 3
Ambient temperature min. [°C]-20
Ambient temperature max. [°C]40
Brake voltage [V]/-torque [Nm]400 AC / 7
Brake voltage range [V]380-460 AC
Brake rectifier nameplateBG1.5
NameplateEnglish
Weight46.00 kg




▶▶▶ SEW reducer S series Helical-worm gearmotors


out speed (rpm): 0.1rpm - 397 rpm
Torque range(Nm)/Power range(KW): 200Nm - 4,200 Nm/0.12KW - 37 kW

SIZE:S37,S47,S57,S67,S77,S87,S97
SA37,SA47,SA57,SA67,SA77,SA87,SA97
SF37,SF47,SF57,SF67,SF77,SF87,SF9
SAF37,SAF47,SAF57,SAF67,SAF77,SAF87,SAF97
SAT37,SAT47,SAT57,SAT67,SAT77,SAT87,SAT97

▶▶▶Areas of application

◆Drives in theater applications ◆Adjustment drives ◆Presses
◆Rotary tables ◆Corner transfer units


375NM Drive Helical Motor Gear Unit 0.55KW 158.45 300 Rpm
▶▶▶FAQ
Q: Can you print other colors?
A:Yes. Customized color can be printed on the gear motor according to your requirements.

Q: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to accept trial order for quality testing.

Q: Is that factory price?
A:Yes. We assure you all prices are based on factory.

Q: What is the life span? what is the guarantee
A:The lifespan of gear motor can reach 10-20 years depending on different working conditions .The guarantee time is
one year after delivery.
