Specifications
Brand Name :
beyond
Model Number :
BY-C
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Supply Ability :
50 pcs per month
Delivery Time :
35-60 working days
Packaging Details :
standard package
Name :
clapboard type elevator
Material :
stainless steel
Voltage :
according to customer local voltage
Power consumpiton :
energy saving type
Warranty :
12 months
Application :
used for fruit conveying
Description

SUS304 SUS316L Fruit Clapboard Elevator Fruit Processing Equipment For Fruit Conveying

Shanghai Beyond Machinery Co., Ltd. is a professional machinery manufacturer based on technical developing. Combining with R&D, manufacturing, installation debugging and training, we are engaged in producing the liquid projects used in Dairy,Fruit &Vegetable juice,Beverage,Tea,Brewing,Flavoring,Pharmacy,Egg,Bone & Meat processing and Daily chemical products etc.

Fruit elevator plastic clapboard elevator fruit conveying machine

Introduction

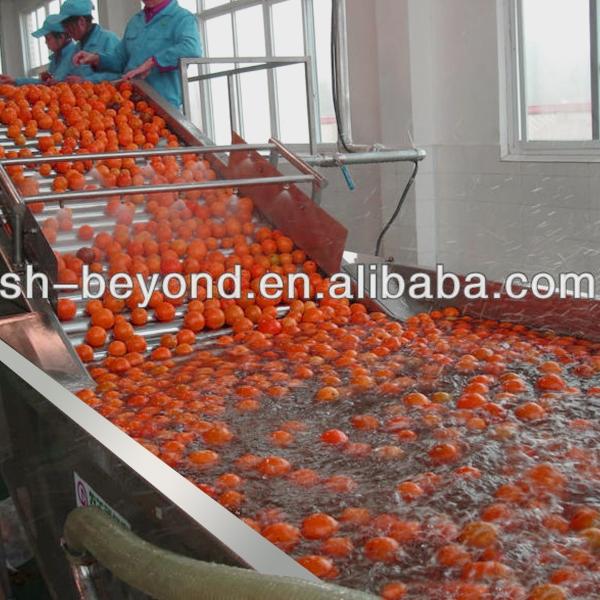

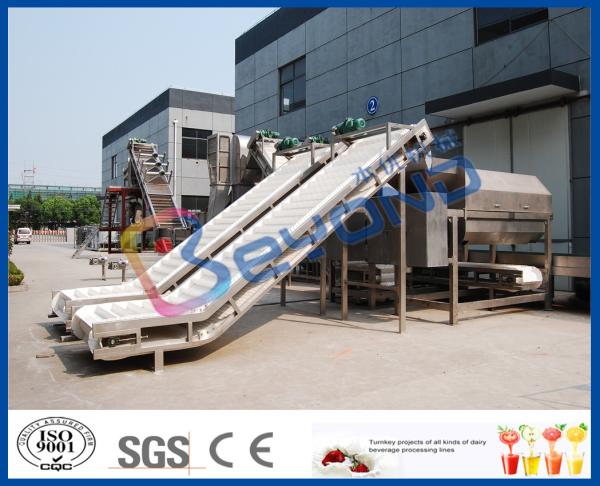

Clapboard elevator transports the product by moving the clapboard driven by the motor.

Construction Type: horizontal and gradient;

Material of the clapboard: Supporter is made of SUS304-2B stainless steel; the clapboard is made of stainless steel or plastic PP (polypropylene), which is applicable for all kinds of fruits and vegetables.

Fruits can be feed or discharged into the lifter at any points of the machine.

Technical parameter

Model Description

Transportation capacity

(based on Apple)

 Motor power (kw)
Line speed Capacity
GBTS-S400

The supporter is made of SUS304 stainless steel,

the clapboard is made of SUS 304 or plastic;

moving speed is adjustable

 0.1-0.4m/s 2.5-4(m³/H) 2-5m 0.55
6-10m 0.75
GBTS-S600 0.1-0.4 m/s 4-6(m³/H) 2-5m 1.1
6-10m 1.5
GBTS-S800 0.1-0.4 m/s 6-8(m³/H) 2-5m 1.5
6-10m 2.2
GBTS-S1000 0.1-0.40 m/s 8-10(m³/H) 2-5m 1.5
6-10m 2.2
GBTS-S1200 0.1-0.4 m/s 10-15(m³/H) 2-5m 1.5
6-10m 3
GBTS-S1400 0.1-0.4 m/s 15-20(m³/H) 2-5m 2.2
6-10m 4

SUS304 SUS316L Fruit Clapboard Elevator Fruit Processing Equipment For Fruit Conveying

Technical Parameter:

Name Description Transportation capacity (kw)
Power
line speed Capacity
GBTS-S400 the supporter is made
of SUS304 stainless steel,
the clapboard is
other SUS304 stainless
steel or plastic,
speed is adjustable		 0.1-0.4m/s 2.5-4m3/H 2-5m 0.55
6-10m 0.75
GBTS-S600 0.1-0.4m/s 4-6m3/H 2-5m 1.1
6-10m 1.5
GBTS-S800 0.1-0.4m/s 6-8m3/H 2-5m 1.5
6-10m 2.2
GBTS-S1000 0.1-0.4m/s 8-10m3/H 2-5m 1.5
6-10m 2.2
GBTS-S1200 0.1-0.4m/s 10-15m3/H 2-5m 1.5
6-10m 3
GBTS-S1400 0.1-0.4m/s 15-20m3/H 2-5m 2.2
6-10m 4
