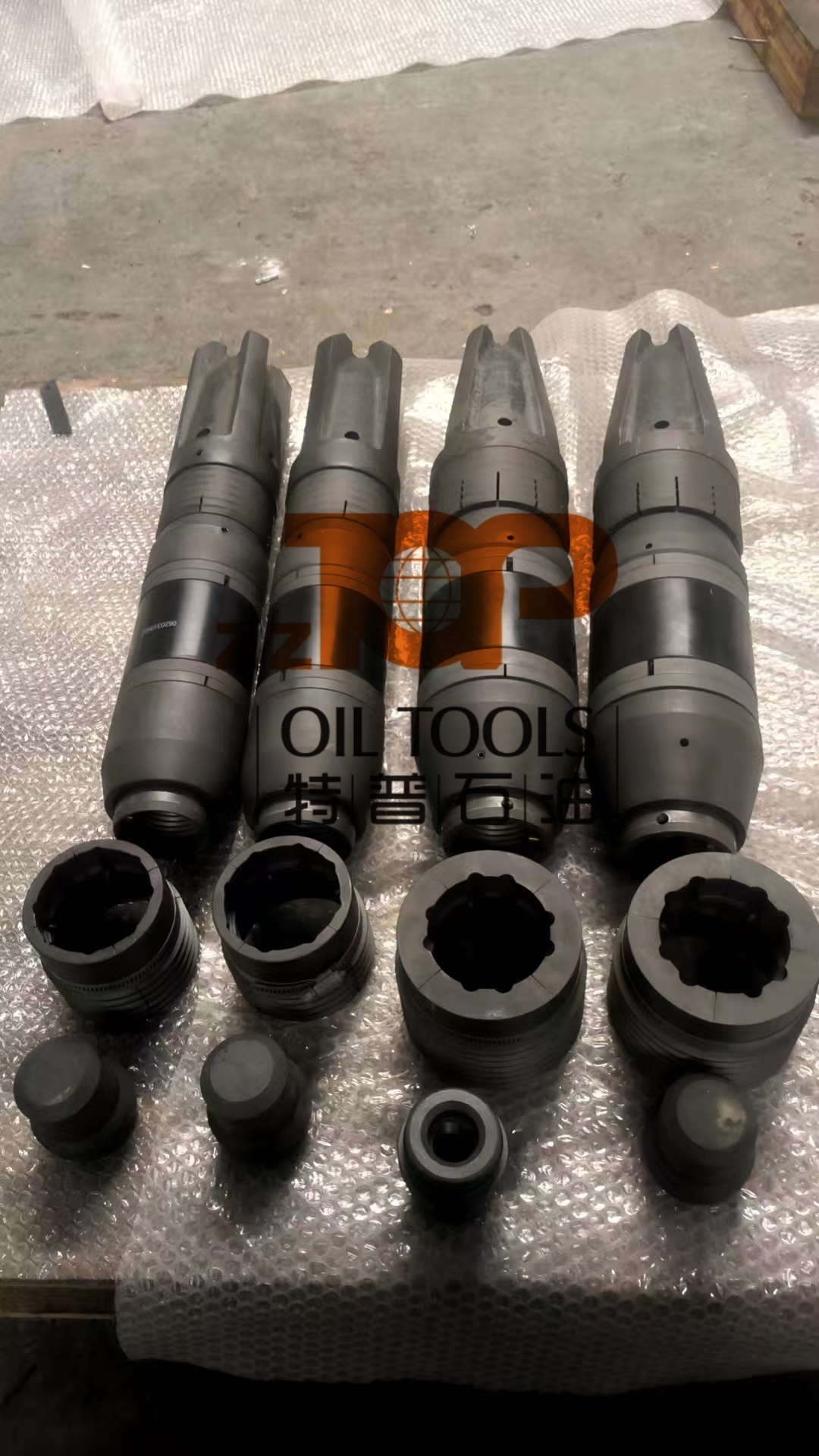

Drillable Cement Retainer With Mechanical Setting For Well Completion
Drillable Cement Retainer With Mechanical Setting For Well Completion
Specifications
Brand Name :
ZZ TOP OIL TOOLS
Model Number :
K1 cement retainer
Certification :
ISO, API
Place of Origin :
China
MOQ :
1 set
Price :
USD 1-10000/set
Payment Terms :
L/C,T/T,D/P
Supply Ability :
10 set/month
Delivery Time :
30-50 days
Packaging Details :
Pollywood
Size range :
4 1/2" - 13 5/8"
Working pressure :
10000 psi
Connection type :
IF, EUE, CAS
Working temperature :
Up to 400 oF
Max pressure rating :
10000 PSI
Material :
Cast iron
Description

Drillable Cement Retainer With Mechanical Setting For Well Completion


The “K-1” Cement retainer is a high performance drillable cement Retainer ideal for most remedial cementing applications. The “K-1” was Designed to function as a drillable squeeze packer, after cementing, acts as a plug trapping squeeze pressure on the cement below the retainer and isolating the newly cemented area from the hydrostatic pressures above the cement retainer.


Features and Benefits:​

  • The cement retainer will be set securely in any hardness casing, including premium grades
  • The cement retainer consist of one-piece packing element and flat metal backup rings which combine for superior seal
  • This kind of cement retainer can be simply converted to wire line set cement retainer
  • The cement retainer easy to drill out since metal parts made from cast iron;

Specification of Drillable Cement Retainer


　 Casing OD
(in)		 Casing Weight
(lbs/ft)		 Setting Range
Min (in)		 Setting Range
Max (in)		 Max OD
(in)		 Max Pressure
Rating(PSI)
1 4.500 9.5-16.9 3.740 4.090 3.593 10,000
2 5.000 11.5-21.4 4.126 4.560 3.937
3 5.000 23.2-24.1 3.895 4.142 3.706
4 5.500 13-23 4.580 5.044 4.312
5 6.000 18-26 5.140 5.552 4.937
6 6.625 17-32 5.595 6.135 5.370
7 7.000 17-35 6.004 6.538 5.687
8 7.625 20-39 6.625 7.125 6.312
9 8.625 24-49 7.511 8.097 7.125
10 9.625 29.3-58.4 8.435 9.063 8.120 8,000
11 10.750 32.76-60.7 9.660 10.192 9.438
12 11.750 60-94 10.142 10.772 9.940 4,000
13 11.750 38-66.7 10.656 11.150 10.438
14 13.375 48-85 12.159 12.715 11.880 3,000
15 16.000 65-118 14.570 15.250 14.125
